mAI085-MB Actuator Interface Technical Manual /14
Distributive Intelligence
 CMC INDUSTRIAL ELECTRONICS LTD
5.2 Configuration Keyboard Functions
To enter configuration mode, press and hold the SCAN key for 10 seconds. The upper display
will show LoC, indicating entry into configuration mode.
OPEN CLOSE CLEAR SET
CMC I NDUSTRIAL E LECTRONICS
SCAN
SV
OL
PV
A CTUATOR I NTERFACE
IDL
POS
FLT
MOV
OPN
CLS
EMP
1
2
3
4
5
6 7
8
9
11
10
12

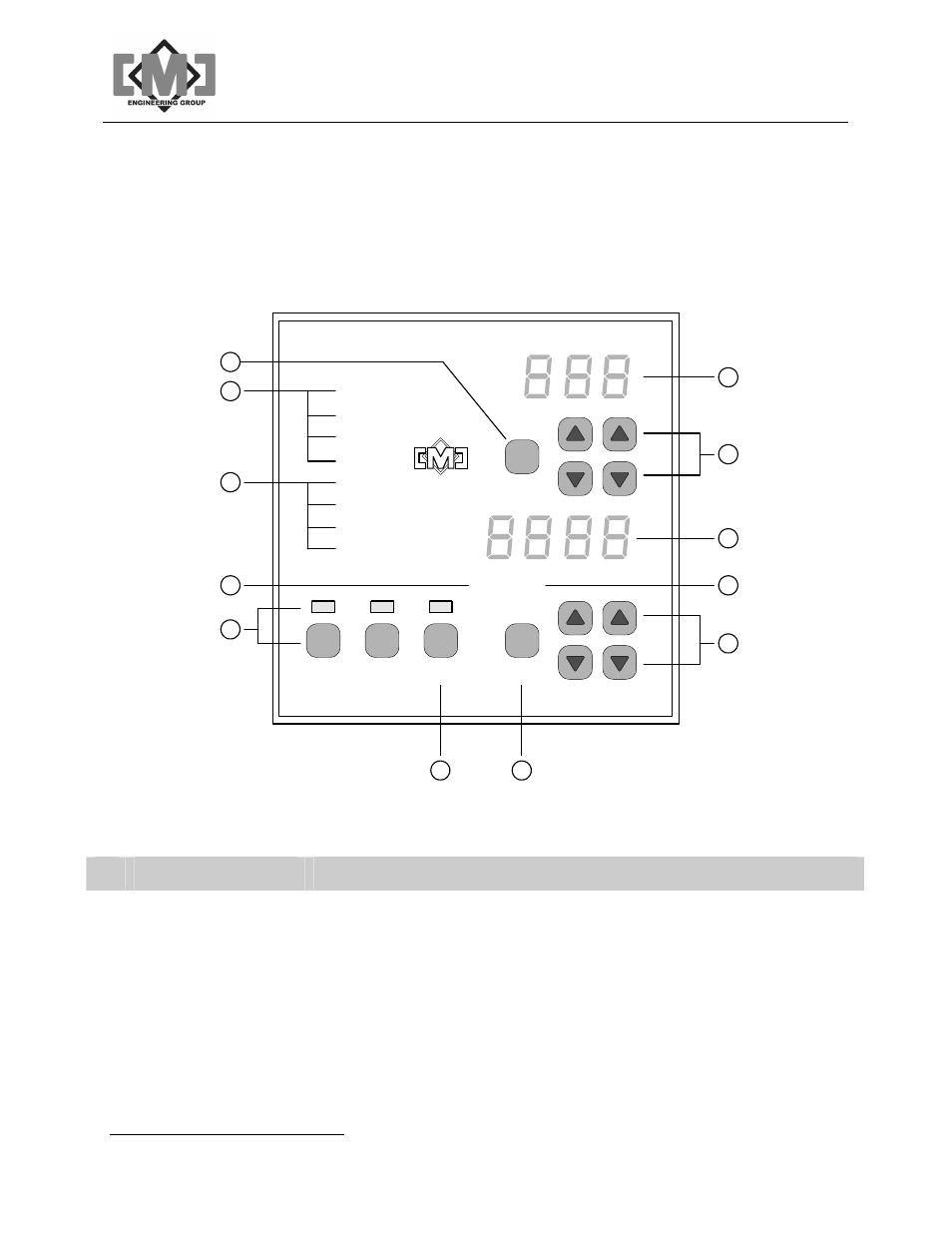

Figure 5 - Configuration Keypad and Indicators
ID Label Description of Operation
1 Upper Display Displays the configuration menu item.
2 Upper UP / DOWN Selects the configuration menu item.
3 Lower Display Displays the configuration value. The flashing cursor indicates which
digit is being acted on.
4 Setpoint Value Not used, off.
5 Lower UP /DOWN For YES/no menu items the right up arrow key is YES and the right
down arrow key is no.
