Page 21

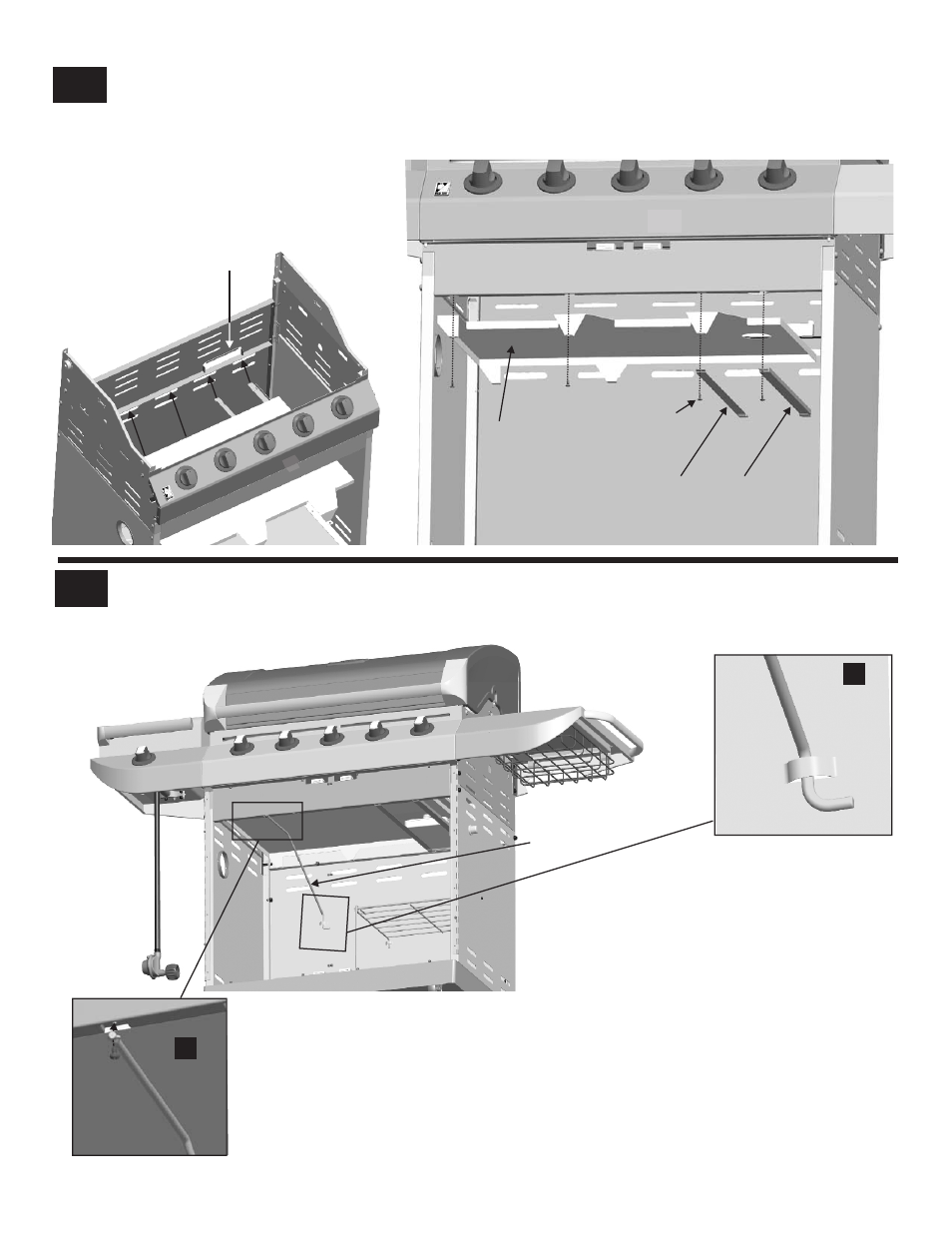

Tank heat shield

Inside of cart, insert tank heat shield tabs into two left slots between upper and lower back panels. Attach left and center front
shield tabs under door brace with

#8x3/8” self-tapping screws. Insert left and right grease tray rails into slots beneath grease

tray opening in upper back panel. Attach left rail and right front shield tab together under front brace with a

#8x3/8” self-

tapping screw, then attach right rail to brace, also with a

#8x3/8” self-tapping screw.

Left grease

tray rail

Right grease

tray rail

#8x3/8” self-

tapping screw

Door brace

Some components

not shown for

illustration purposes.

Rear

of shi

eld -

two

tabs

Fron

t of shie

ld - th

ree t

abs.

Grease tray

opening

Tank Wire

Insert end of tank wire (without hole) into back of lower back panel. Attach other end to bottom of front brace with a

#8x3/8” self-tapping screw.

463248708 • 21
