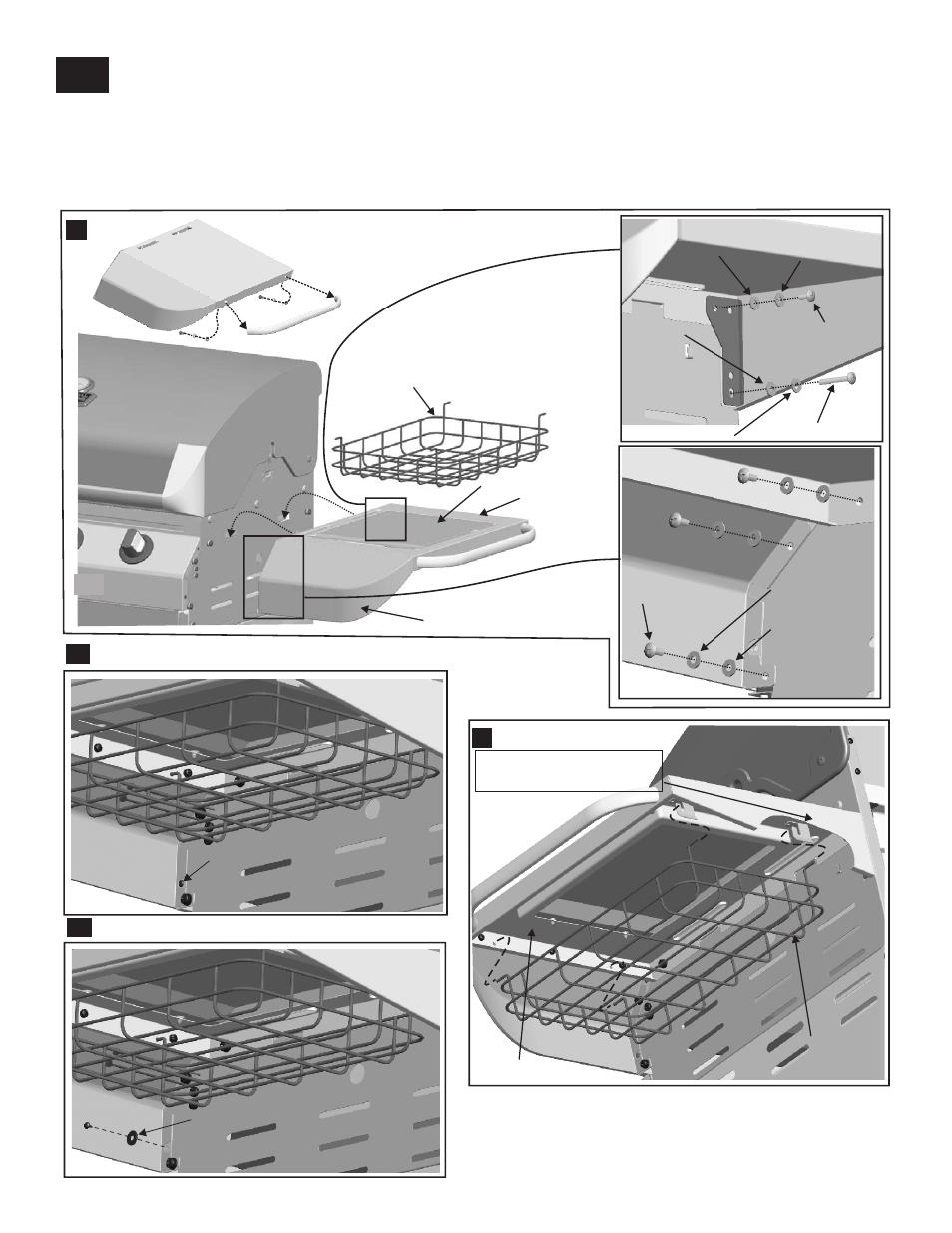

8 Insert tabs on right side shelf into rectangular slots in side of side panel. Attach rear of shelf using one 1/4-20x3/4” screw,
7mm lock washer, and 7mm flat washer in upper hole. Use one 1/4-20x1½” screw, 7mm lock washer, and 7mm flat washer
in lower hole. Attach front of shelf and fascia using three
1/4-20x3/4” screws, 7mm lock washers, and 7mm flat washers.
Attach towel bar to right side shelf with two
1/4-20x1/2” screws, 7mm lock washers and 7mm flat washers(A). Place the wire
basket under right side shelf by insert the two ends to the holes at the front side of the right side shelf first, then place the
other two ends into the slots at the rear of
right side shelf(B). Remove the screw shown (C), then add one large flat
washer, and re-install the screw shown (D).
1/4-20x1½” screw
7mm flat
washer
Tabs i
nto ho
les
Right side shelf
Fascia, right side shelf
1/4-20x3/4”
screw
7mm lock
washer
7mm flat
washer
7mm lock washer
1/4-20x3/4”
screw
7mm lock
washer
7mm flat
washer
Wire Basket
Sideburner Lid
B
A
Right side shelf
Wire Basket
This edge is broken for the
clarity of illustration.
D
C
Remove This Screw
Large Flat Washer
View Behind Right Fascia
View Behind Right Fascia
