Char-Broil COMMERICAL 463248708 - Manual (Page 14)

2
14 • 463248708
1/4-20x1/2” screw
ASSEMBLY – Model No. 463248708
1

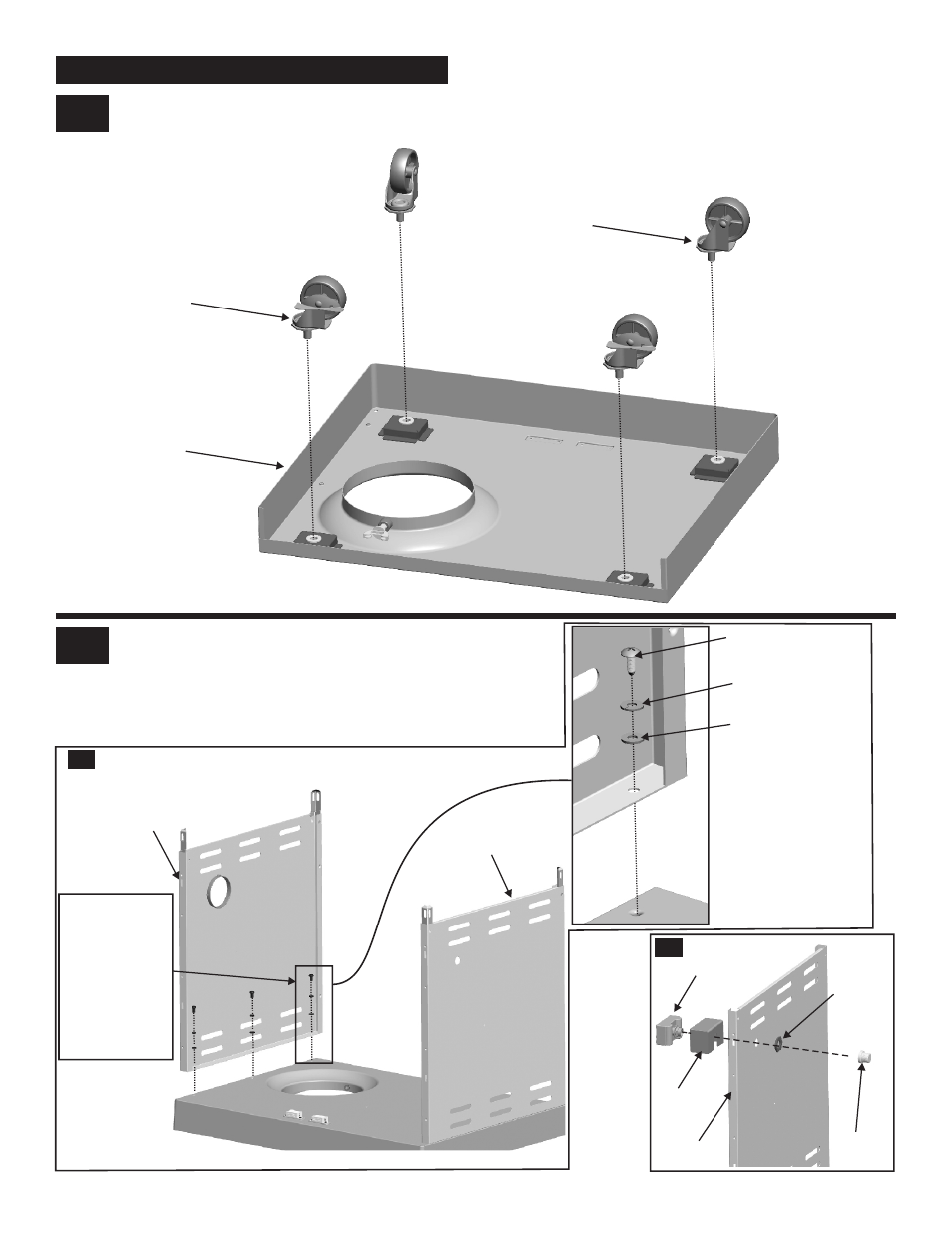

Attach side panels to bottom shelf using three
1/4-20x1/2” screws,
7mm lock washers, and 7mm flat washers per panel shown A.
IMPORTANT: Panel with large hole must
Be on left side of bottom shelf.
Unscrew
Hex Nut and attach EI Module and Heat Shield to right
side panel shown B.
7mm lock washer
7mm flat washer
Left side panel
(with large hole)
Right side panel
Attach the two
locking casters at the rear of the bottom shelf
and the two fixed casters at the front. Use the provided caster
wrench to fully tighten casters.
Locking caster
Bottom shelf
Fixed caster
Front
Rear
Make sure side
panels are
pushed as far to
the rear of bottom
shelf as
possible before
fully
tightening
screws.
A
B
EI Module
Hex Nut
Right side panel
Battery Cap
Heat Shield
