Lighting Systems
EG1-4
Page 2 of 5
Module Ordering Information
Family
Energos 1-Light T5 per 4' (121.92cm) (Nominal) Louver
Series
Lamping &
Distribution
Ballast
Lamp
Shielding
Length
Voltage
Finish
When ordering no lamps provided by Lightolier, use Lamp code "Z".
EG 1
P
r P
P
1
= 1 Lamp
4
= 1 Lamp,
Slotted Top
Reflector
See Ballast
Chart Below
See Lamp
Chart Below
P
= Parabolic
Louver
4
= 4'(121.92cm)
8
= 8' (243.84cm)
1
= 120V
2
= 277V
Options
(Blank)
A
= Aluminum
W
= White
4
= 4 through wires
5
= 5 through wires
6
= 6 through wires
D
= Dual Switch
T
= Tandem Switch
E
= Emergency Pack
Module Ordering Specifications
Lamping and Distribution
1 = 1 Lamp
4 = 1 Lamp, Slotted Top Reflector
Ballast Specifications
Code
Lamp Type
Ballast Factor
Start
Type
THD %
F
T5
1.00
Program
<10
G
T5H0
1.00
Program
<10
I
Dim T5
1.00/.01
Program
<10
J
Dim T5H0
1.00/.03
Program
<10
Dimming:
Advance Mark-10 standard (no additional wires required) for T8 and
T5H0 fixtures. 5-wire dimming required forT5 (non-HO) fixtures. Optional dimming
systems: Lutron ECO-10 and Hi-Lume (by others) require 4-wire modules and end
sets. Mark-7, ULT, DALI and Lightolier HDL require 5-wire power feed end sefs.
Energos can accepf ballasfs not to exceed 1.7" (4.32cm) wide by 1.2" (3.05cm)
high.
Shielding
P
= Parabolic Louver
Length
Voltage
Finish
4
= 4ft (48") (121.92cm)
1
= 120VAC
A
= Aluminum
8
= 8ft (96") (243.84cm)
2
= 277VAC
W
= White
Wiring Options
Blank
= Leave blank if ordering sfandard fixfure.
4
= 4 fhrough wires
5
= 5 fhrough wires
6
= 6 fhrough wires
Feature Options
D = Dual Switching
(AKA A/B swifching)
Lamping Specifications
Code
Lamp Type
Wattage
Rated Output
(Lumens)
Color (K)
M
T5
28
2600*
830
N
T5
28
2600*
835
0
T5
28
2600*
841
P
T5
54
4450*
830
Q
T5
54
4450*
835
R
25°c Rating
T5
54
4450*
841
Feature Options (continued)
E = Emergency Battery Pack (E):
Baffery packs provide 90 minufes of opera-
fion. Available lamp oufpufs: 450 Lumens (sfandard). Opfional: 635,1100 and 1375
Lumens. Sfandard Emergency wiring is fo have Baffery Pack operafing a single
lamp. All EM fixfures are wired as "swifched" and include 4fh fhrough wire for
fhe wall swifch (see diagrams). All fixfures and power feeds in fhaf run should be
ordered fo include a dedicafed 4fh fhrough wire fo carry fhe hot power all the way
through the run to the EM pack.

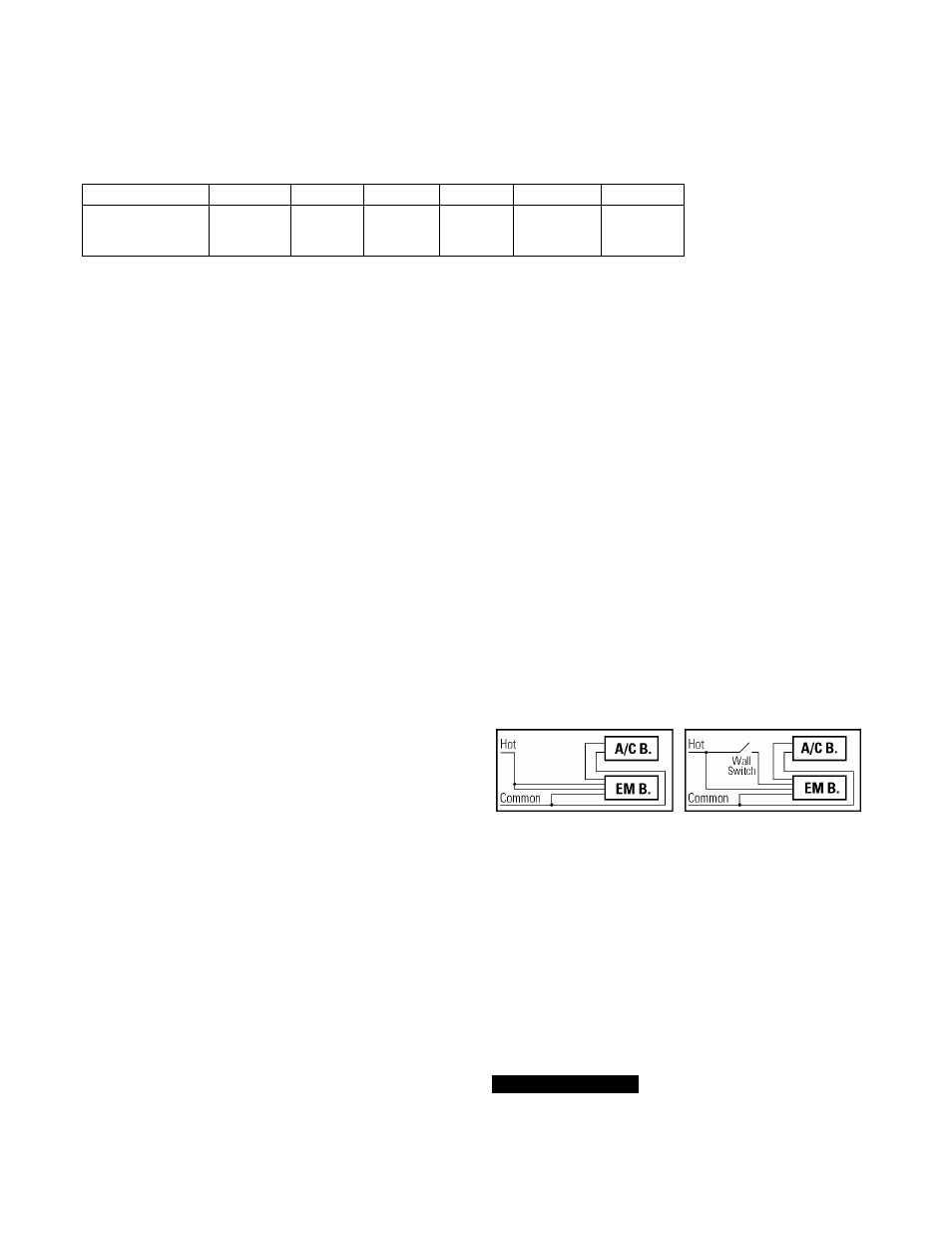

Unswitched
Switched
]□[
2-Light Option
3-Light Option
T = Tandem Switching
(also available in 1-lamp configuration)
A
B
Both Dual Switch and Tandem Switch fixtures ship with a 4th wire. Be sure to
order the appropriate quantity of wires in fhe power feed.
Job Information
Type:
631 Airporf Road, Lall River, MA 02720 • (508) 679-8131 • Lax (508) 674-4710
We reserve the right to change details of design, materials and finish.
