Lighting Systems
EG1-4
Page 1 of 5

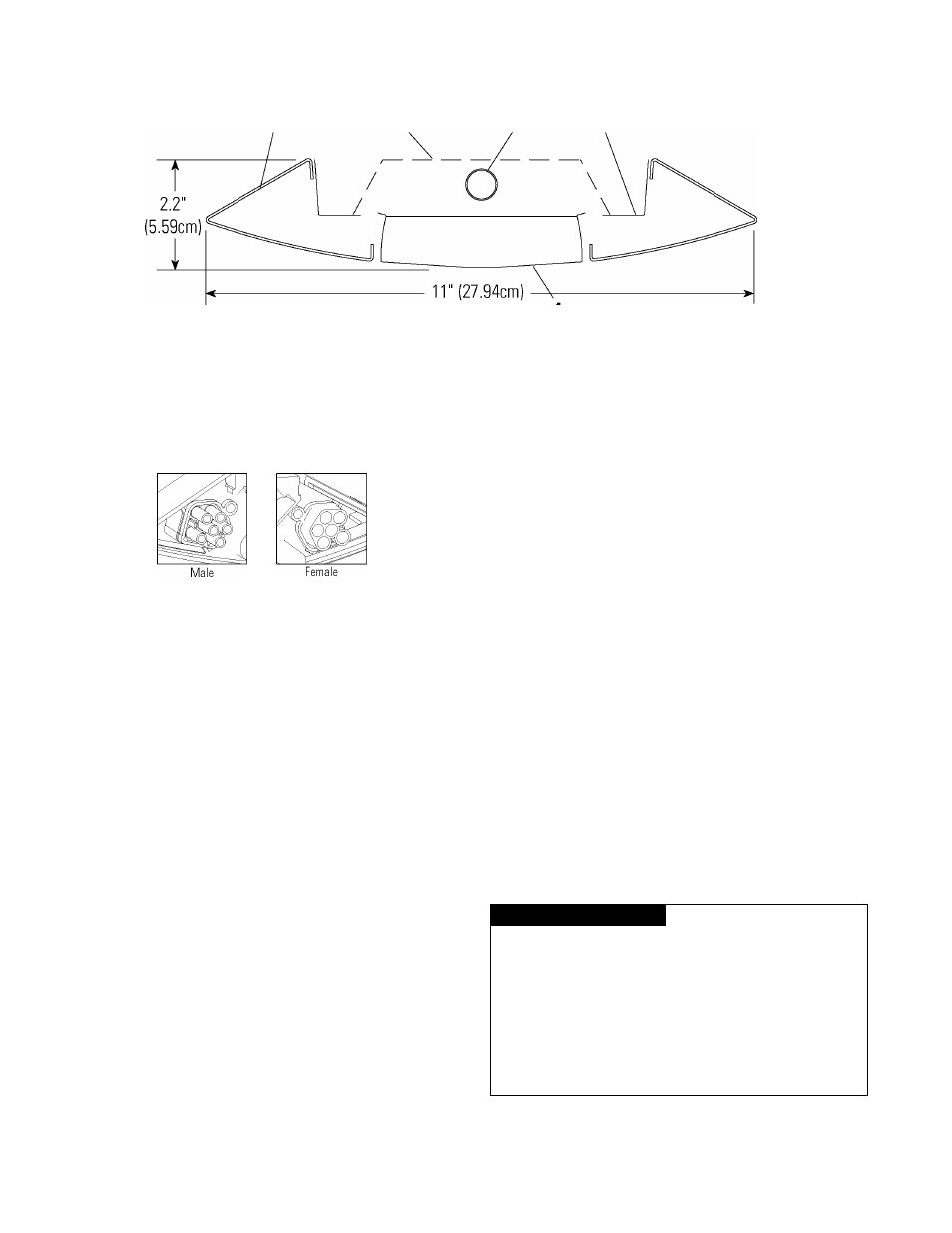

Energos 1-Light T5 per 4' (121.92cm) (Nominal) Louver
2
3
Feature Specifications
Electrical
Connections:
Wiring is via 18 gauge wire. All electrical connections for standard
configurations are plug-and-play via 6-wire cannon plug connections. Connections
are seated in end castings of fixfures, allowing for simulfaneous mechanical/ elec-
frical coupling. Connecfors are male/female fherefore modules musf be insfalled
male to female, starting from the power feed end set.
All sfafic ballasfs have fhe following feafures:
• Elecfronic
• High Power Facfor
• Class A sound rafing
• Mefal can
Emergency Battery Pack:
Emergency Battery packs are designed to operate
when normal building power is interrupted. The battery packs operate for a mini
mum of 90 minutes without any power via a rechargeable battery source. The pack
does not utilize the standard static ballast for any of its operation since the pack
carries its own pseudo ballast. For this reason, Lightolier does not recommend
remote mounting EM Packs because all of the socket wiring would need to carry
throughout the power feed end set. The EM batteries, even in their largest, most
expensive form, operate the fluorescent lamps at only half the lamp rated output.
Emergency battery packs are available in the following outputs:
• 450 Lumens (Standard)
• 635 Lumens
• 1100 Lumens
• 1375 Lumens
Emergency battery packs can be used for emergency egress lighting since all listed
packs operate for a minimum of 90 minutes, or can be used as momentary lighting
for emergency circuit power transitions. Smaller packs are recommended for this
purpose.
Dimming:
T8 and T5H0 lamps are dimmed with two wire ballasts. T8 lamps can
be dimmed down to 5% and T5H0 lamps can be dimmed down to 1%. T5 lamps
require 5-wire dimming ballasts and can be dimmed down to 1%. A 5-wire power
feed will be required for T5 (non-HO) dimming.
Labels Included
UL, cUL,and IBEW
Features
1. Housing:
18 gauge steel. 6" (15.24cm) cast aluminum end caps. No exposed
fasteners or hardware.
2. Lamping:
1 T5 fluorescent lamps per 4' (121.92cm) section. Lamps by Lightolier
as an option, see ordering information.
3. Reflector:
Precision die-formed premium anti-iridescent, highly reflective alu
minum.
4. Louver:
Parabolic louver, low-iridescent semi-specular anodized aluminum, 25
degree shielding lengthwise. Blades are spaced 2.3" (5.84cm) O.C with a radius
that matches the housing. 1" (2.54cm) tall louver attaches to housing.
5. Optional Slotted Top Reflector:
Precision die-formed anti-iridescent, highly
reflective aluminum.
Mountings
Cable suspension is on 48" (121.92cm) and 96" (243.84cm) centers and consists
of a 4 1/2" (11.43cm) diameter canopy finished white enamel. A 1/16" (0.16cm)
diameter stainless steel aircraft cable accomplishes suspension and is adjustable
from 12" (30.48cm) to 36" (91.44cm). Power feed is 18-gauge SJT white cord. For
special circuiting consult factory.
Finish
Powder coated, baked enamel, white or aluminum, as specified. Custom colors
available, consult factory.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one POWER FEED END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one POWER FEED END SET for each run.
4. Order one CABLE ASSEMBLY per MODULE minus one per run.
5. For runs that exceed conductor ampacity ratings order the appropriate number
of SINGLE CABLE & CORD SETS.
Job Information
1 Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
