Appendix B-2 SmartCell 6A000 User Guide

MIB, SMI, MIB Files and Internet MIB Hierarchy

Agent Support

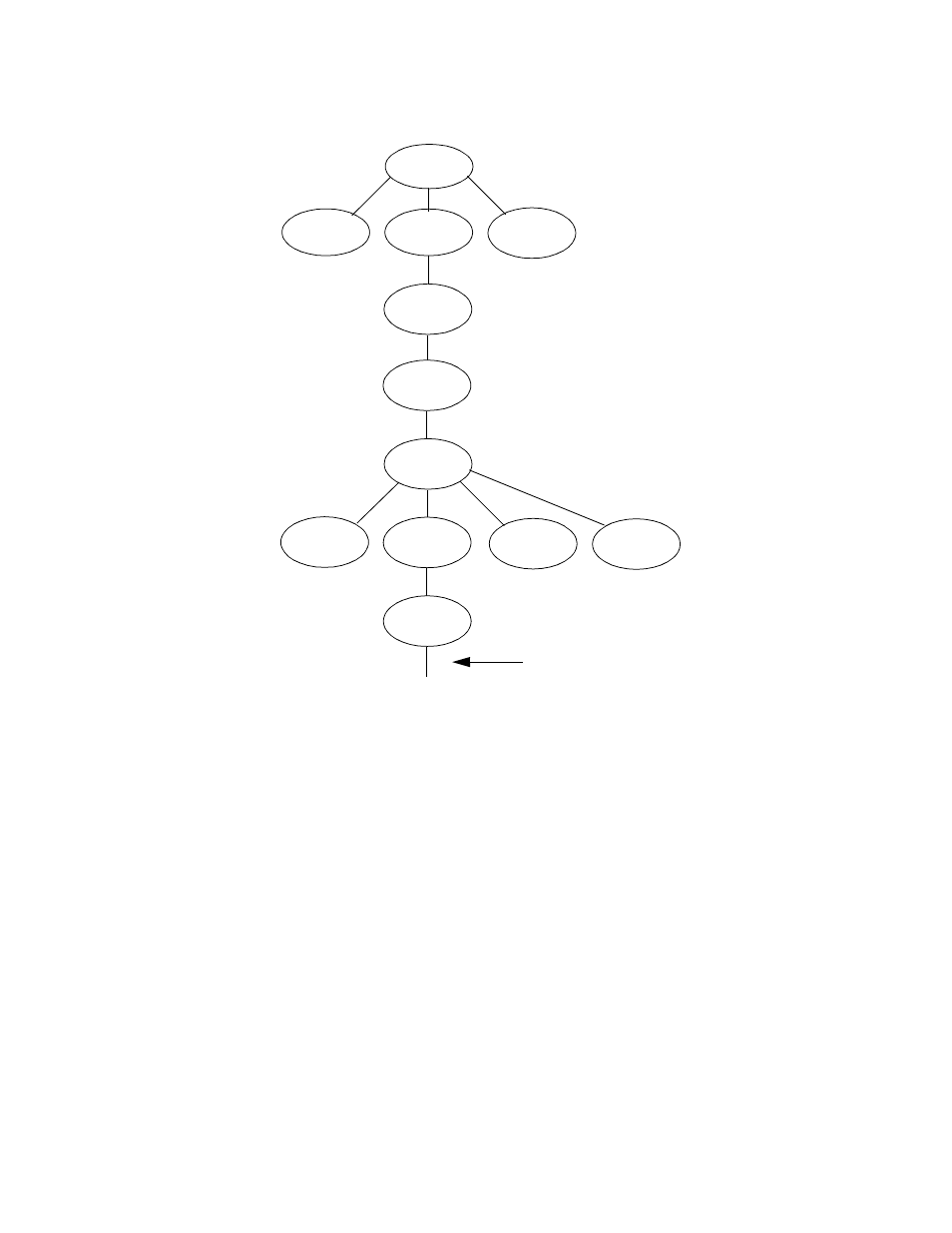

Figure B-1 Internet MIB hierarchy

B.1.1

ZeitNet Cabletron Proprietary MIBs

The location of some of ZeitNet proprietary MIBs in the Internet hierarchy is shown in Figure B-2. All nodes starting
with “zn” represent Zeitnet objects.

The private ZeitNet MIB is represented by the object identifier 1.3.6.1.4.1.1295, or
iso.org.dod.internet.private.enterprise.zeitnet. The ZeitNet proprietary MIBs include the subtrees shown in Figure B-2.

tt

CCITT

0

ISO

1

root

joint

ISO/CCITT

2

org

3

DOD

6

internet

1

mgmt

2

directory

1

experimental

3

MIB

1

private

4

Label from the root to

this point is 1.3.6.1.2.1
