1BChapter 2: Installation

3. Pull the camera’s cabling through the ceiling hole and connect to the devices

and power.

If needed, seal all mounting holes so that no moisture can leak into the
mounting surface.

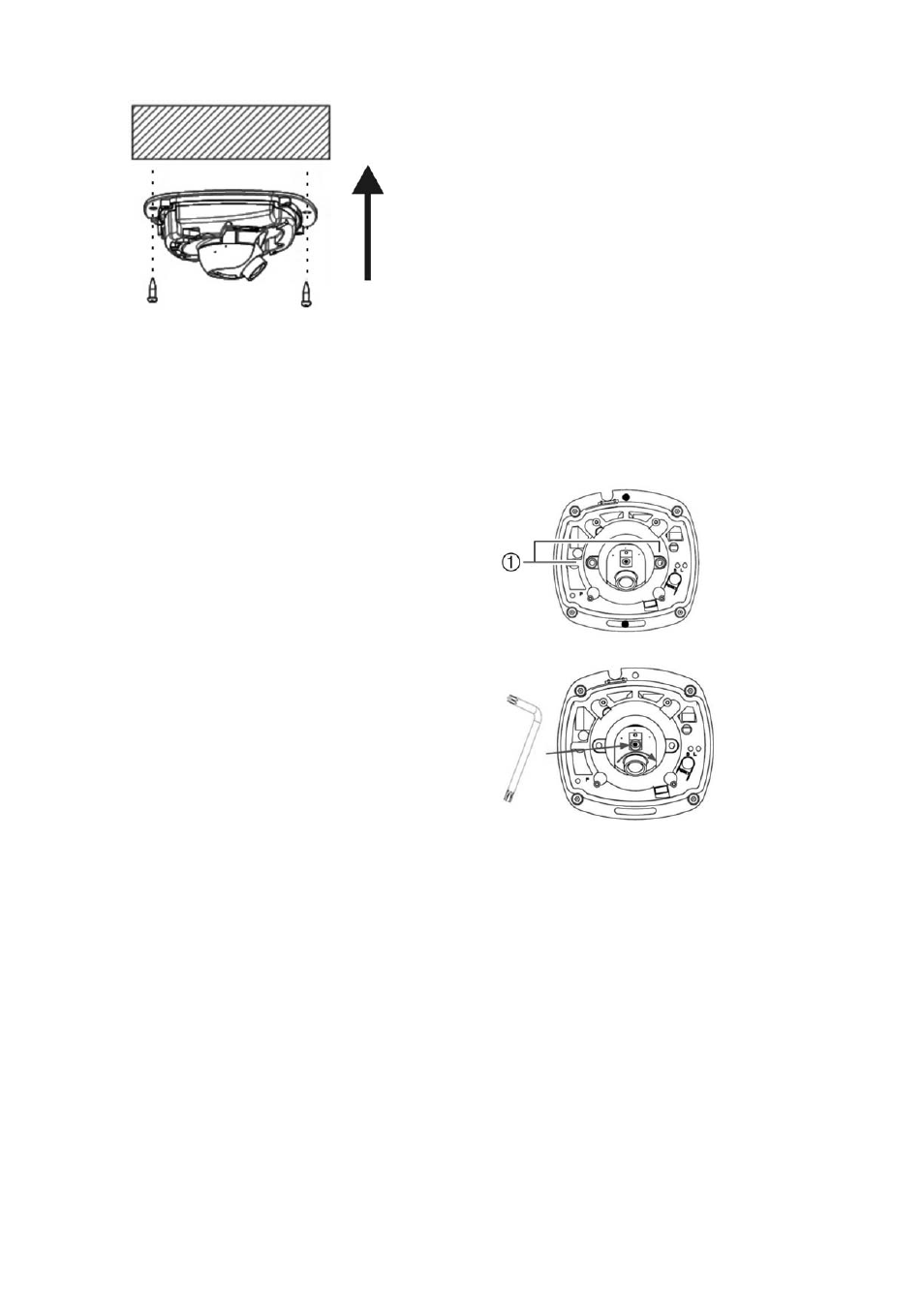

4. Adjust the camera’s angle of view while watching the image on a monitor.

Loosen the lens positioning screws (1).

Using the supplied hex wrench, adjust the
camera pan and tilt horizontally and
vertically.

Tighten the lens positioning screws.

Note

: The lens focus has been adjusted in the factory so should not require

further adjusting.

5. Reattach the camera housing and tighten the fixed screws and. Ensure that

the camera is firmly attached to the ceiling.
