1BChapter 2: Installation
Dome and IR dome camera connections
Note
: Do not attempt to extend the power/data cable connection using RJ45
couplers and Cat5 cable. Only use the data cable connection provided.
Note
: Use 12 VDC or PoE.

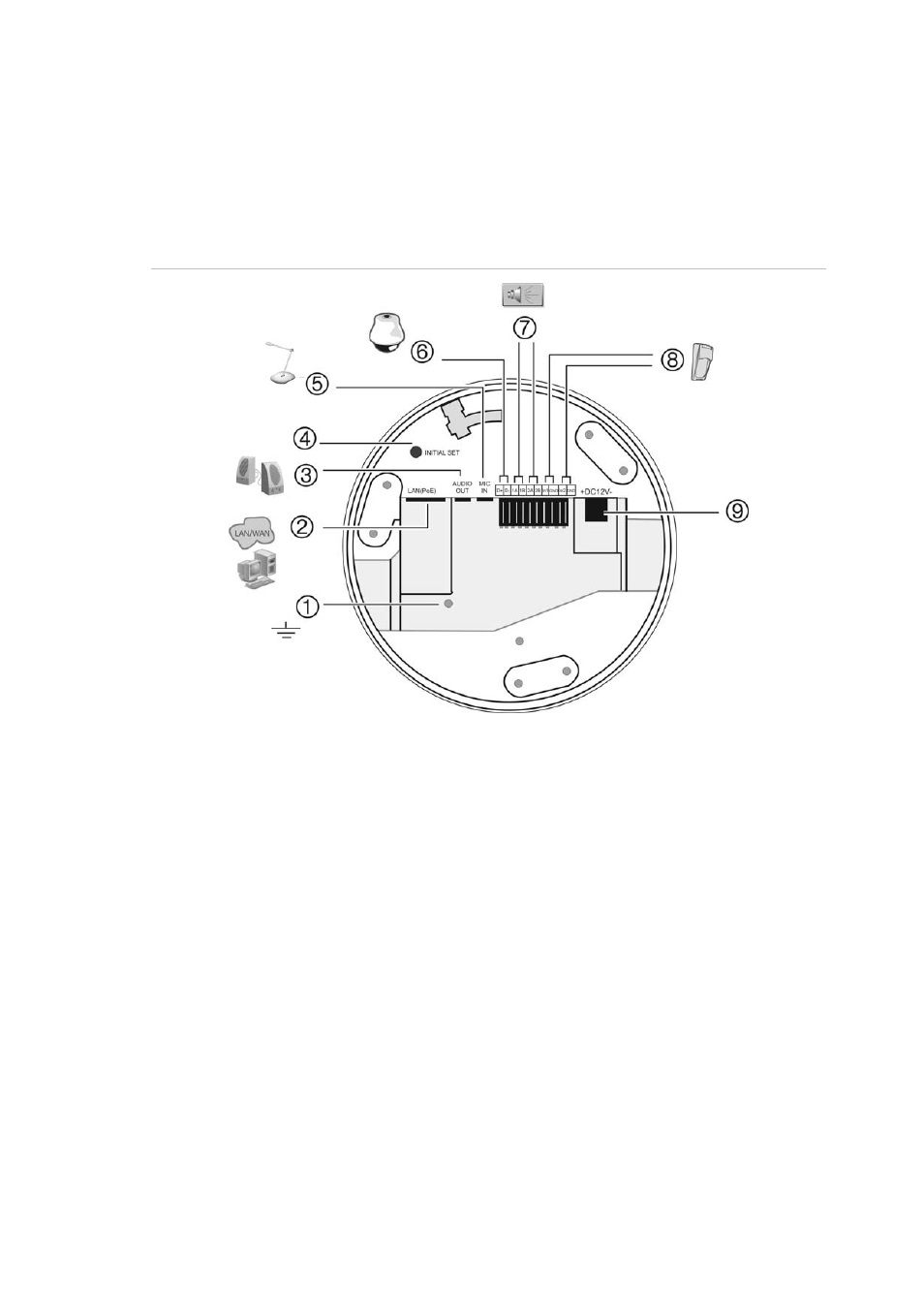

Figure 3: Connections on the base of the dome and IR dome cameras
1. Ground
Connect to ground.
2. Ethernet RJ45 PoE port
Connect to network devices.
3. Audio output
Connect to an audio output.
Line level, 600 Ω.
4. Initial set
Press to hard reboot camera.
5. Audio input
Connect to an audio input.
2.0 to 2.4 Vp-p, 1 kΩ.
6. RS-485 D+, D-
Connect to an RS-485 device such as a
PTZ dome camera.
7. Alarm outputs
Connect 1A/1B and 2A/2B to alarm output
devices.
8. Alarm inputs
Connect IN1/GND and IN2/GND to alarm
input devices.
9. Power supply
Connect +12 VDC power supply.
Note: The alarm output can be used to turn on and off an external alarm device.
Connect a 12 VDC/30 mA external power supply to the alarm output. See
Figure 4 below.
