1BChapter 2: Installation

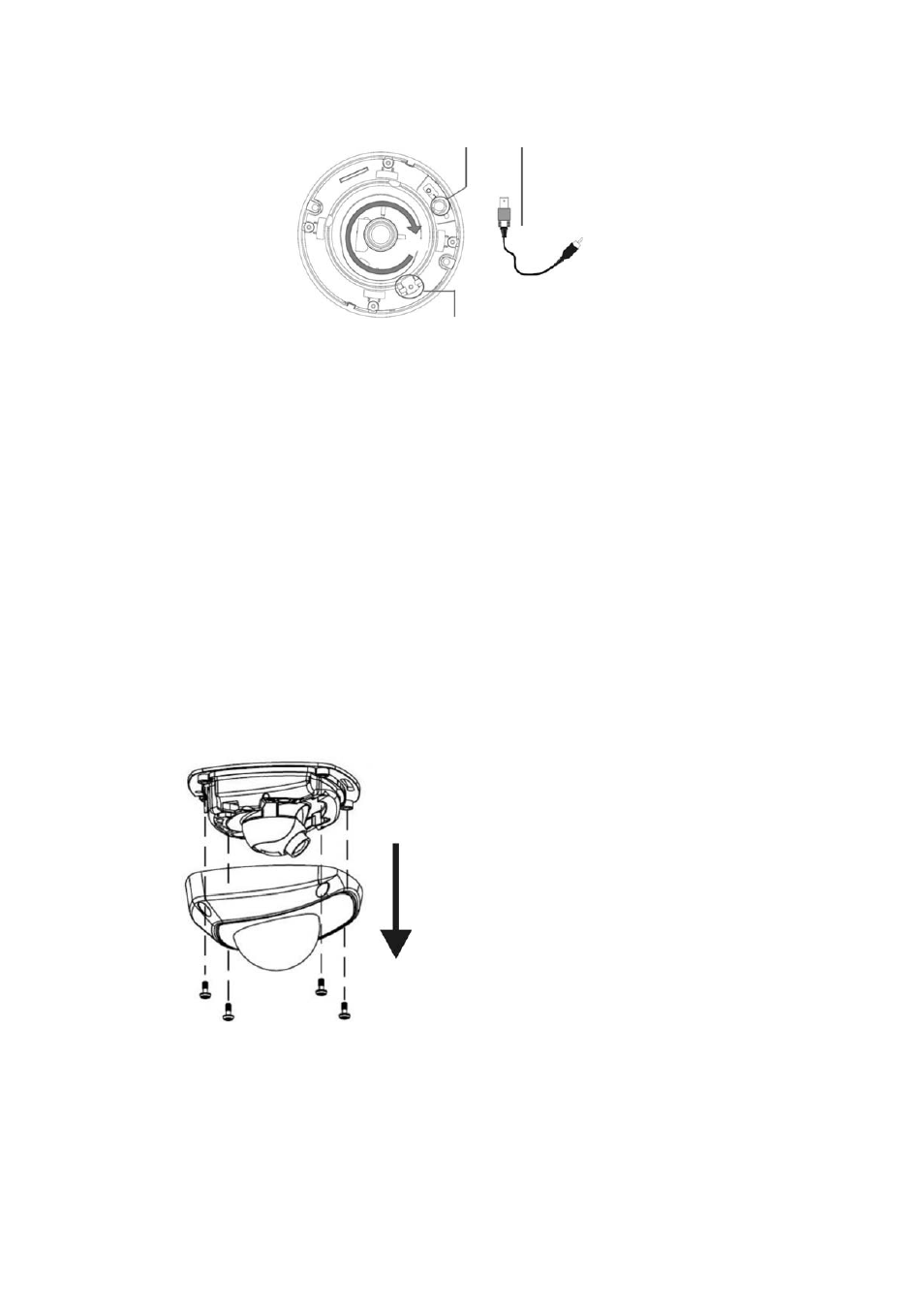

RCA video output connector
Video cable for testing
(supplied)
Lens adjustment screw
10. Remove the temporary video cable and reattach the camera cover. Tighten
the fixed screws. Ensure that the camera is firmly attached to the mounting
bracket.
11. Connect a 12 VDC power supply to the power cable.
Mounting the wedge dome cameras on a
ceiling
Mount the wedge dome camera on a ceiling. It is not recommended for mounting
on a wall.
To mount the mini dome camera on a ceiling:
1. Using the supplied hex key, loosen the four hex screws on the camera and
remove the camera housing.
2. Make a hole in the ceiling for the cabling. Fix the camera base to the ceiling
using the supplied screws.
TruVision IP Dome Open-Standards User Manual
11
