1BChapter 2: Installation

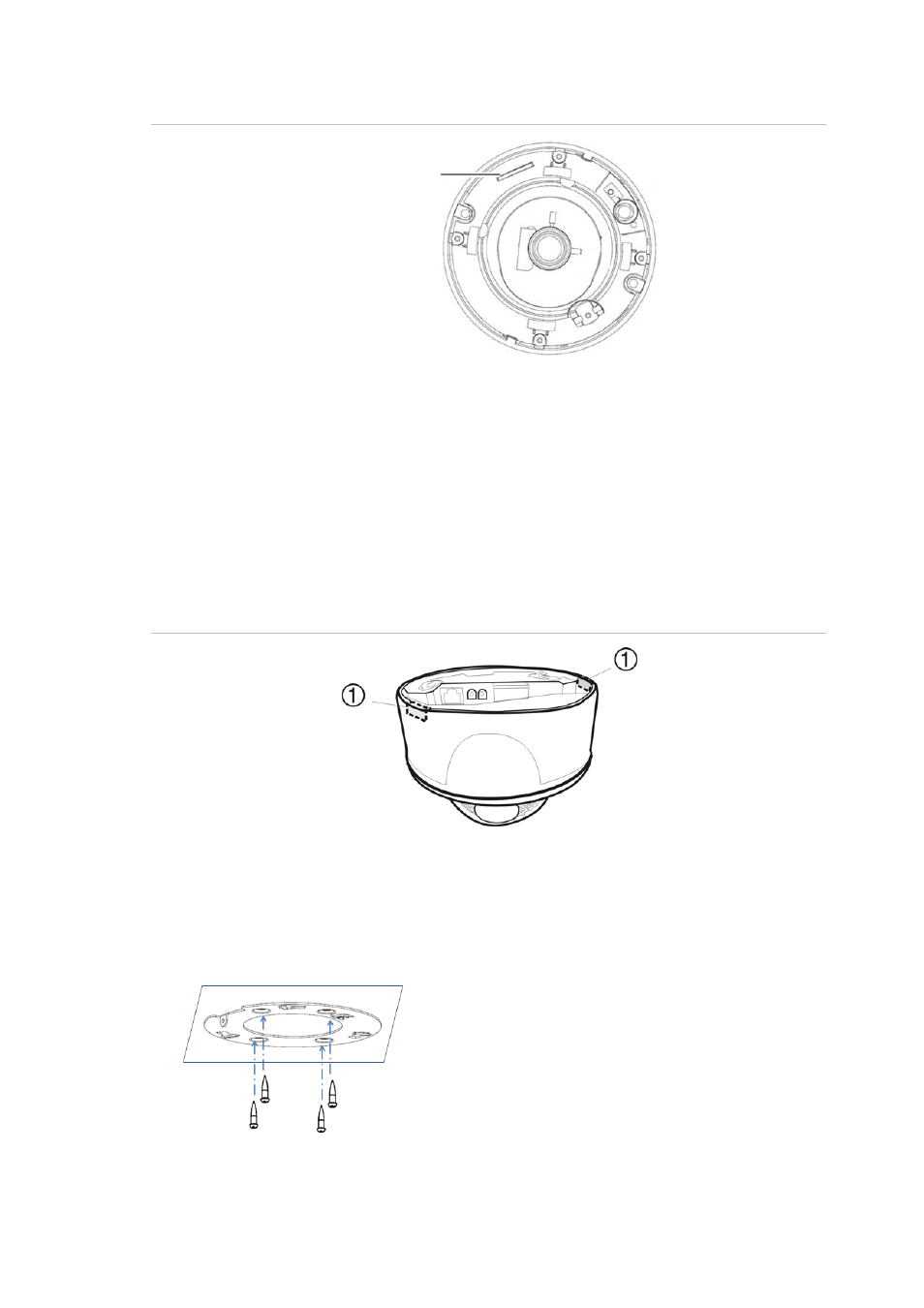

Figure 6: SDHC card location in the dome cameras

SDHC card slot

Mounting the dome cameras on a ceiling

Mount the dome cameras on a ceiling. They are not recommended for mounting
on a wall.

Note

: If required, cables can be feed through the sides of the dome housing by

removing the tabs (1) using a pliers (see Figure 7 below).

Figure 7: Creating cable access points in the dome housing (optional)

To mount the dome camera to a ceiling:

1. Place the mounting plate (supplied) on the ceiling.

2. Securely fasten the mounting plate to the ceiling surface with the supplied

screws.

3. In the middle of the mounting plate make a hole in the ceiling to access the

cabling.

TruVision IP Dome Open-Standards User Manual

9
