UltraView UVD-6130VE-2 WDR Dome Camera User Manual
3
User guidelines
• Program the camera settings as much as possible before mounting the
camera. Take appropriate safety precautions while completing programming
after installation.
• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the
camera.
• Do not use the camera over the temperature range specifications: -10°C to
+50°C (14°F to 122°F)
• If the light source where the camera is installed experiences rapid, wide-
variations in lighting, the camera may not operate as intended.
WARNING: To reduce the risk of fire or electronic shock, do not expose the
camera to rain or moisture and do not remove the cover or back.
Product description

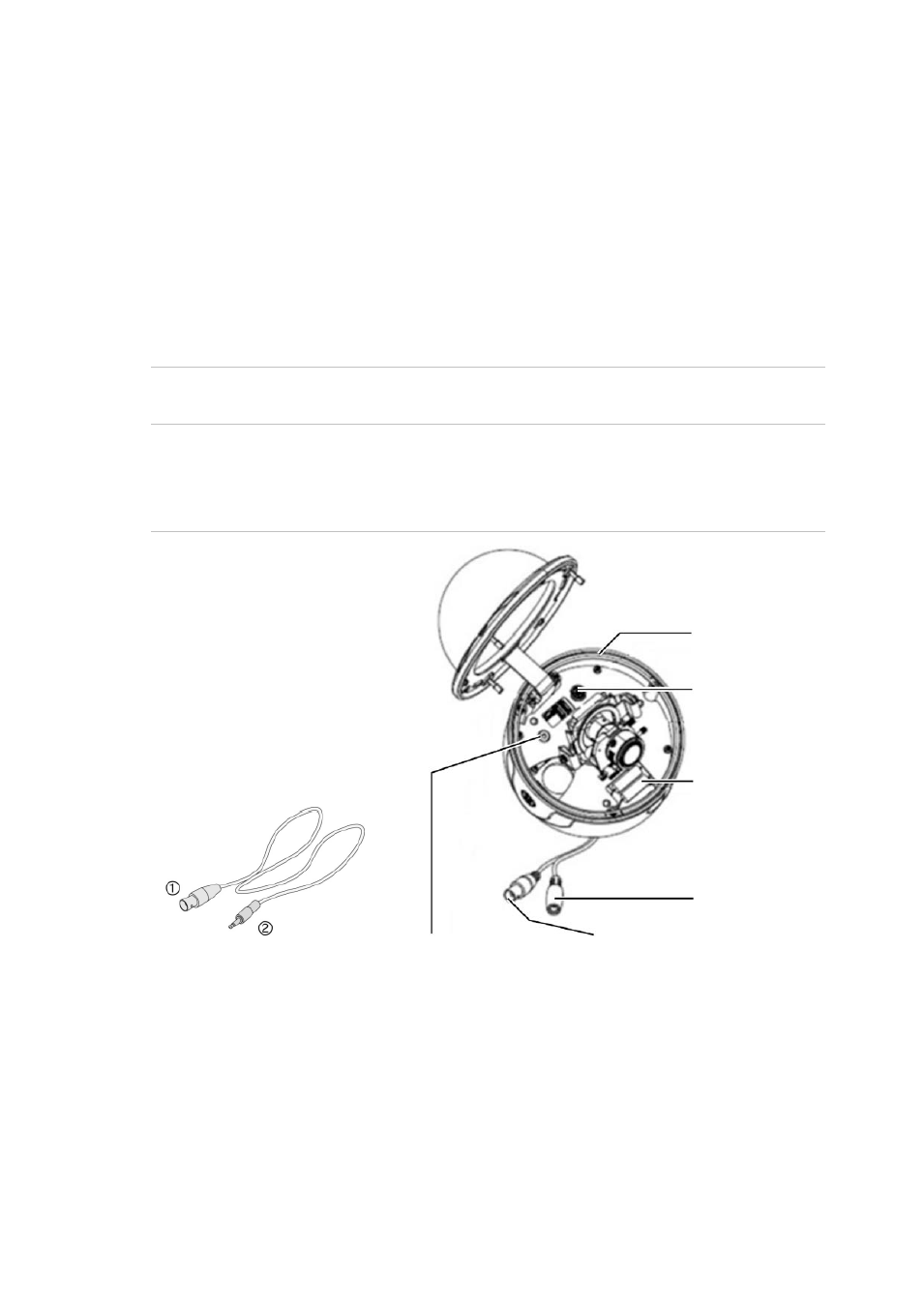

Figure 1:: Camera description
Camera body
OSD control
pad
System heater
Power jack
Monitor output cable:
1. Monitor output BNC; 2.
Monitor output RCA
Video monitor output
Video output BNC
OSD control pad
The onscreen display (OSD) control pad (Figure 3) is a five-direction pad that
provides the ability to manually control the camera functions. Table 1 below lists
the OSD control pad functions and describes their use.
