TruVision TVC-6110-1 / TVC-6120-1 Camera User Manual 3
WARNING: To reduce the risk of fire or electronic shock, do not expose the
camera to rain or moisture and do not remove the cover or back.

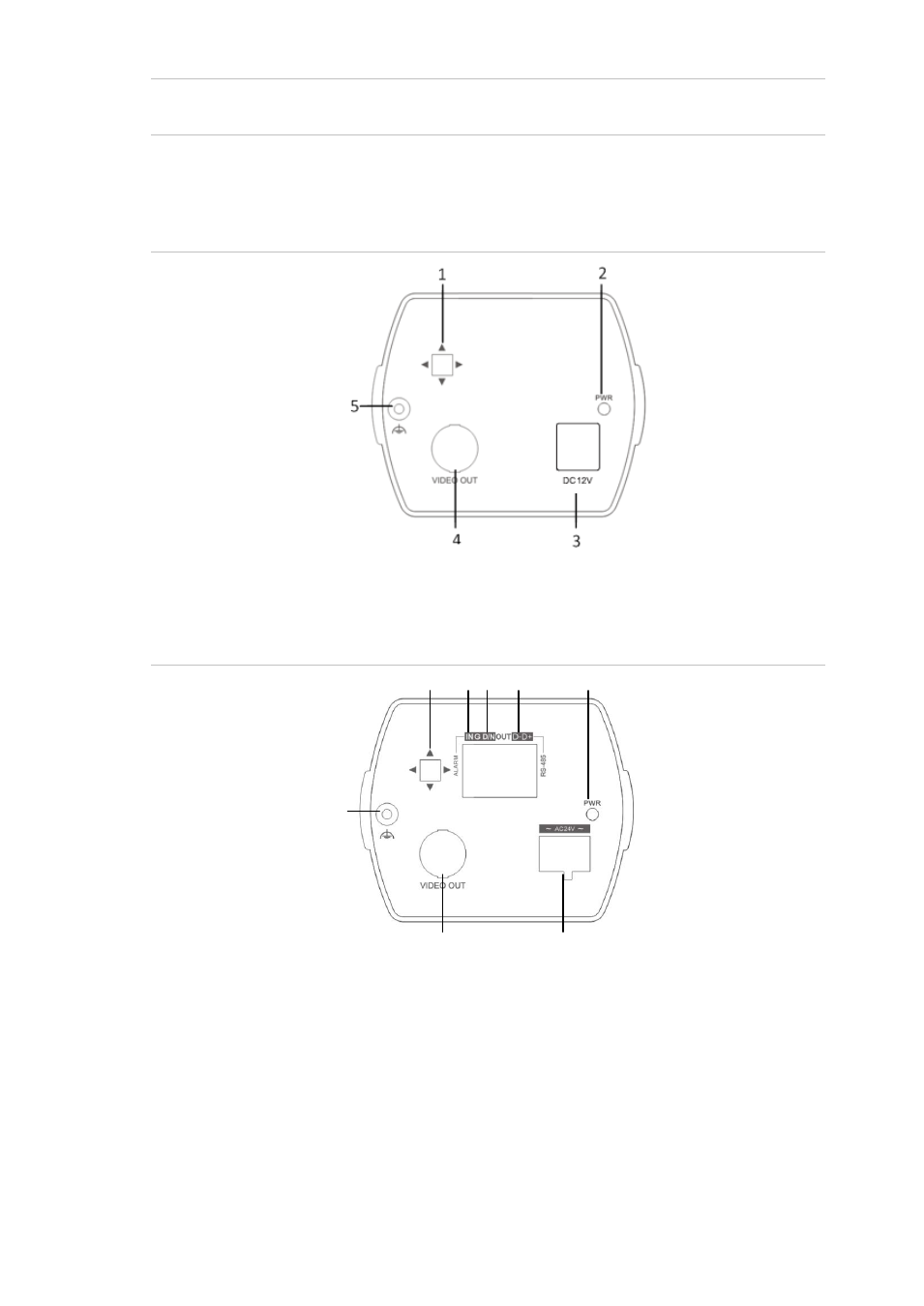

Product description
Figure 1: Product description - TVC-6110-1-N(-P)
1. OSD control button
2. Power LED
3. 12 VDC Power 4. Video output
5. Ground
Figure 2: Product description – TVC-6120-1-N(-P)
1. OSD control button
2. Alarm output/Ground
3. D/N switch (3.3V)
4. RS-485 ports (D+, D-) 5. Power LED
6. 12 VDC/24 VAC dual power
7. Video output
8. Ground
1 2 3 4 5
6 7
8
