8 TruVision TVC-6110-1 / TVC-6120-1 Camera User Manual
Manual menu:
Select a higher shutter speed value to see movement and a lower value to see
clearer images. The shutter speed available are 1/50, 1/120, 1/250, 1/500,
1/1000, 1/2000, 1/4000 and 1/10000. The AGC value can be set between 6 and
44.8.

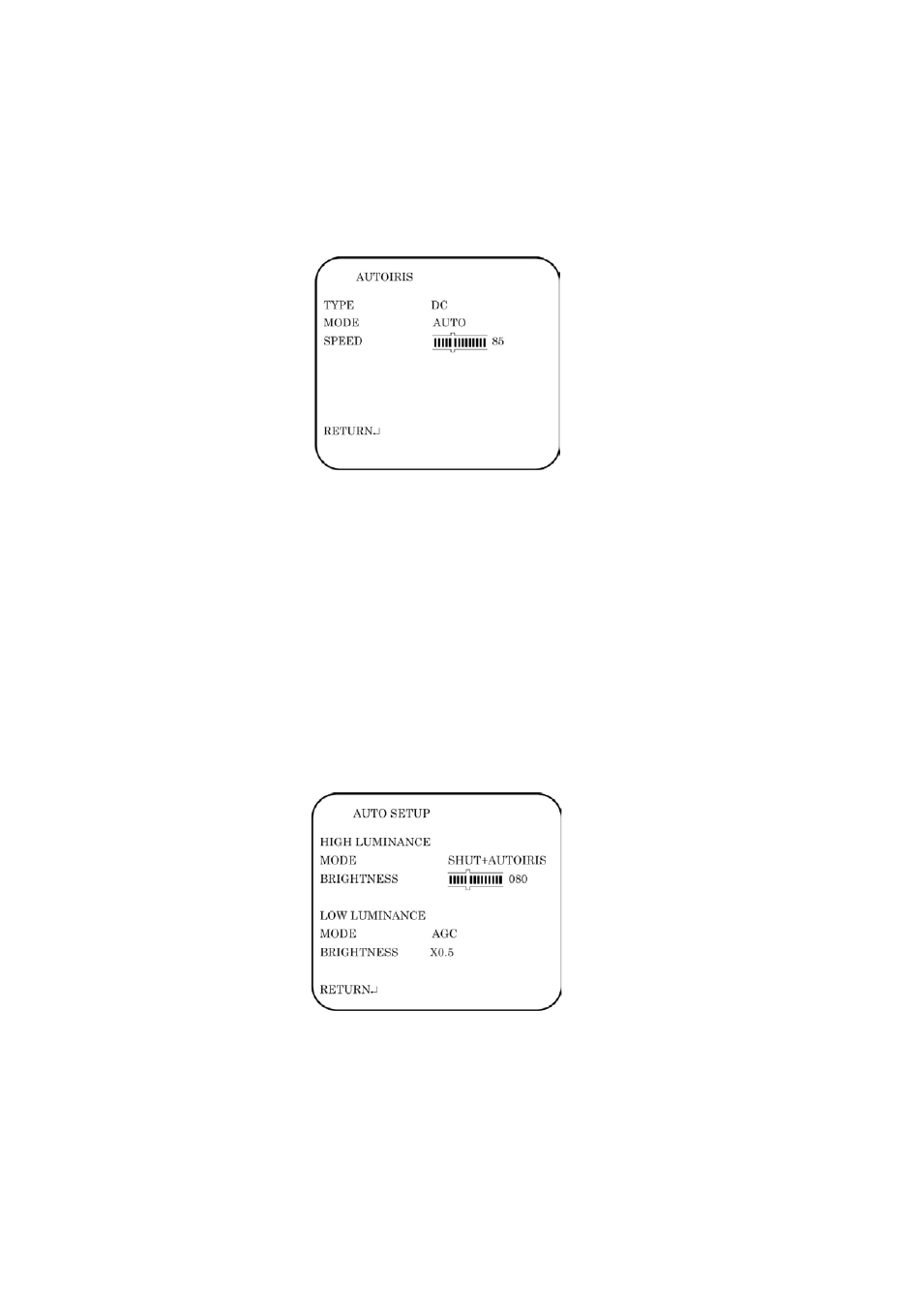

Auto iris menu:
Type: Select the drive mode of the lens, DC or Video.
Mode: Select the iris control mode. Auto (automatically controlled depending on
the light), Open (always open), or Closed (always closed).
Speed: When the mode is set to Auto, select the convergence speed of the iris
between 0 and 255.
Set shutter/AGC
In the Setup menu, go to Shutter/AGC and select the required iris control option,
Manual or Automatic. Auto is default. The Manual or Auto menu appears:
Automatic shutter menu:
Select the parameters for high and low luminance conditions:
High Luminance: Sets the lux level for bright light conditions such as daylight.
Mode: When lens type is AUTO IRIS, you can choose SHUT+AUTO IRIS or
AUTO IRIS mode. When the lens type is manual, only SHUT mode is available.
Brightness: Select the brightness level to which the iris and shutter speed will
adjust automatically. The value ranges from 0 to 255.
