4 IFS POE302-MS Ethernet Injector User Manual
Injector Installation
1. Connect the external power adaptor to the 56 VDC power
connector of the POE302-MS. The power LED will be on in
a steady state. (External power adapter is sold separately.)
2. Connect a standard network cable from the non-PoE
switch or other network device to the “Ethernet” port of the
POE302-MS.
3. Connect the long cable that will be used to connect to the
remote POE PD device to the port “Ethernet + DC”.
4. Complying with the IEEE 802.3at Power over Ethernet
standard, the POE302-MS can directly connect with any
IEEE 802.3at end-nodes such as PTZ (Pan, Tilt & Zoom)
network cameras, PTZ Speed Domes, color touch- screen
Voice over IP (VoIP) telephones, and multi- channel
wireless LAN access points that support IEEE 802.3af In-
line Power over Ethernet on their ports. Figure 2 shows a
typical application.

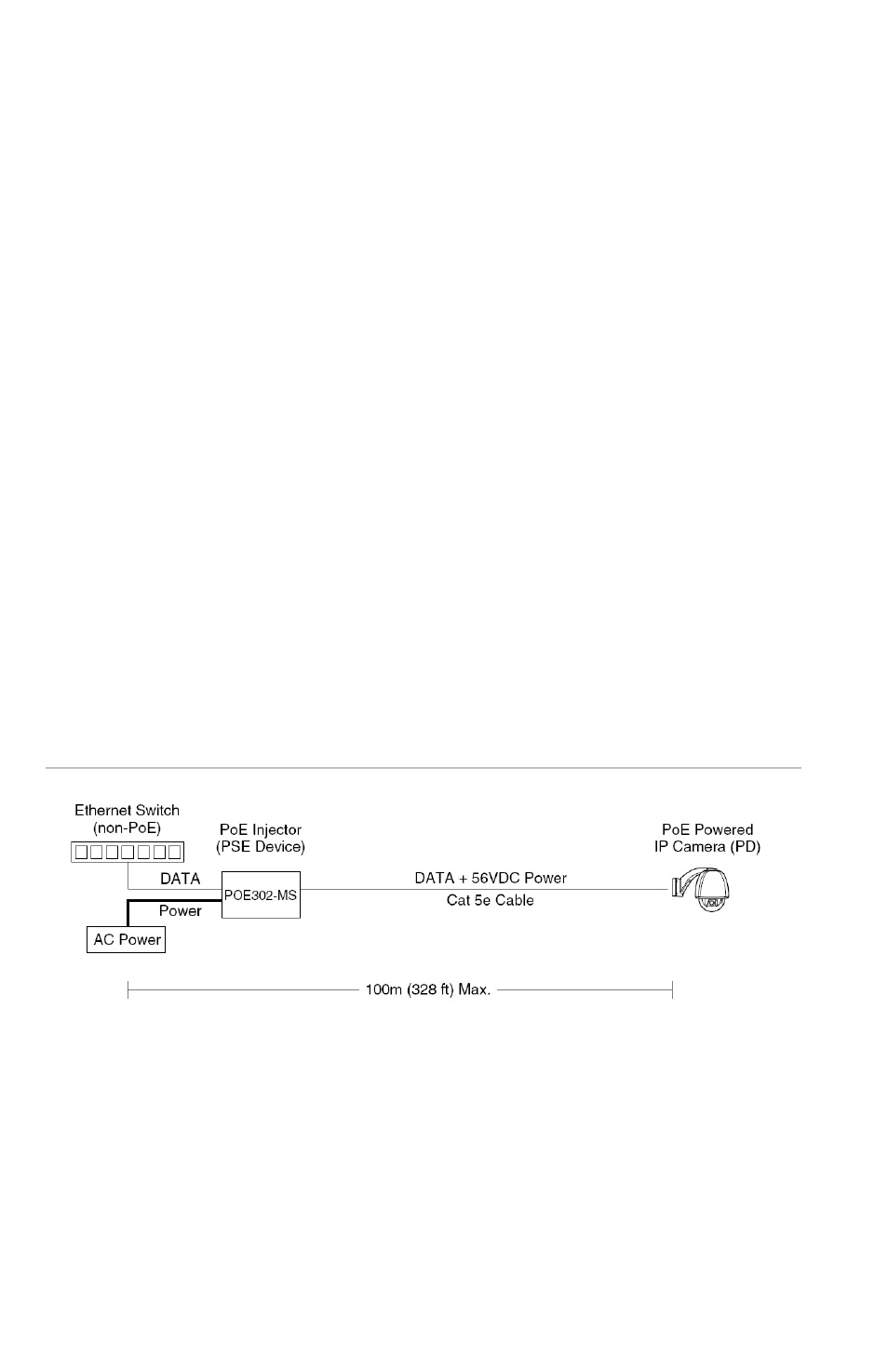

Figure 2: Connection Schematic
Once the POE302-MS detects the existence of an IEEE
802.3at device, the PoE in-use LED indicator will be on in a
steady state to show it is providing power.
Note: If the connected device is not fully compliant with the
IEEE 802.3at Power over Ethernet standard or in-line power
device, the LED indicator of the POE302-MS will not remain lit.
