Introduction
The IFS SP-PoE is an IEEE 802.3af Power over Ethernet splitter that divides the
PoE power and data input into tow separate outputs in either 12 VDC or 5 VDC.
The SP-PoE works with IEEE 802.3af power source equipment (PSE). This frees
device deployment from restrictions due to power outlet locations, eliminates the
costs for additional AC wiring and reduces the installation time.
When the PSE inserts DC voltage into the CAT 5 cable, it allows the cable
between the PSE and SP-PoE to transfer data and power simultaneously. The
maximum distance between the PSE and SP-PoE is 100 m.
Product Features
 Complies with the IEEE 802.3 Fast Ethernet standard
 1 x 100 Mbps copper port
 Plug and Play Installation
Product Overview

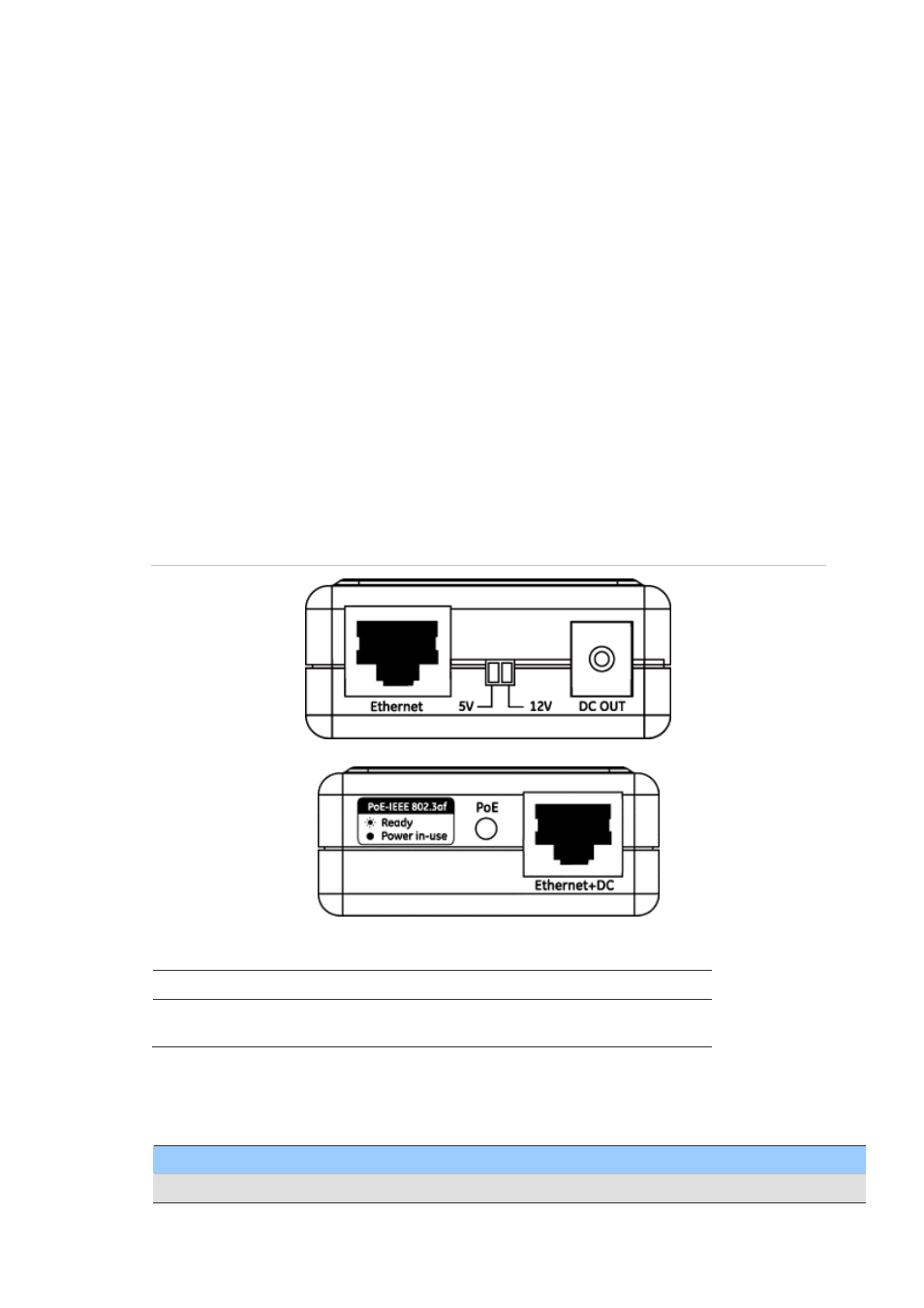

Figure 1 shows the left and right side panels of the SP-PoE Splitter.
Figure 2: Left and right side panels of the SP-PoE
LED Indicators
LED Color Function
PoE ready / in-use Green
Lights to indicate the port is providing 48 VDC
in-line power.
Product Specifications
IFS Model SP-PoE
Interface
