2.5.3 Optional DIN-Rail Installation

There are two DIN-Rail holes on the left side of the MCR300-1T-2Sthat allows it can be easily installed with DIN-Rail mounting. The

IFS optional DIN-Rail mounting Kit – RKE-DIN can be order separately. When need to replace the wall mount application with

DIN-Rail application on the MCR300-1T-2S, please refer to following figures to screw the DIN-Rail on the GT-1205A. To hang the

MCR300-1T-2S, follow the below steps:

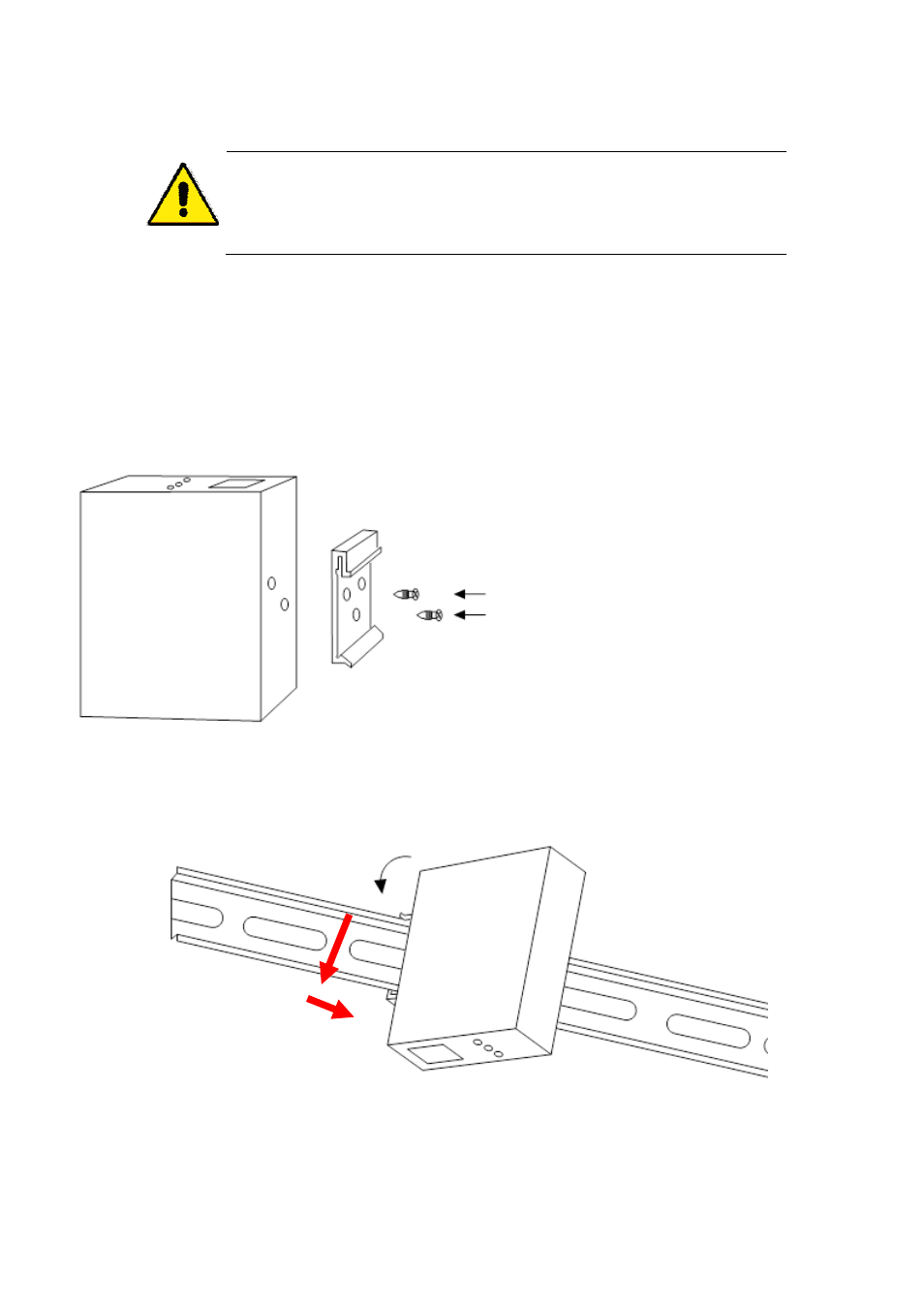

Step 1:

screw the DIN-Rail on the MCR300-1T-2S

Step 2:

Lightly press push the DIN-Rail into the track.

1. Never push the converter into the slot with violent, it could damage the chassis.

2. The Media Converter Chassis supports hot-swap; there is no need to turn off the whole

chassis before slide in the new converter.
