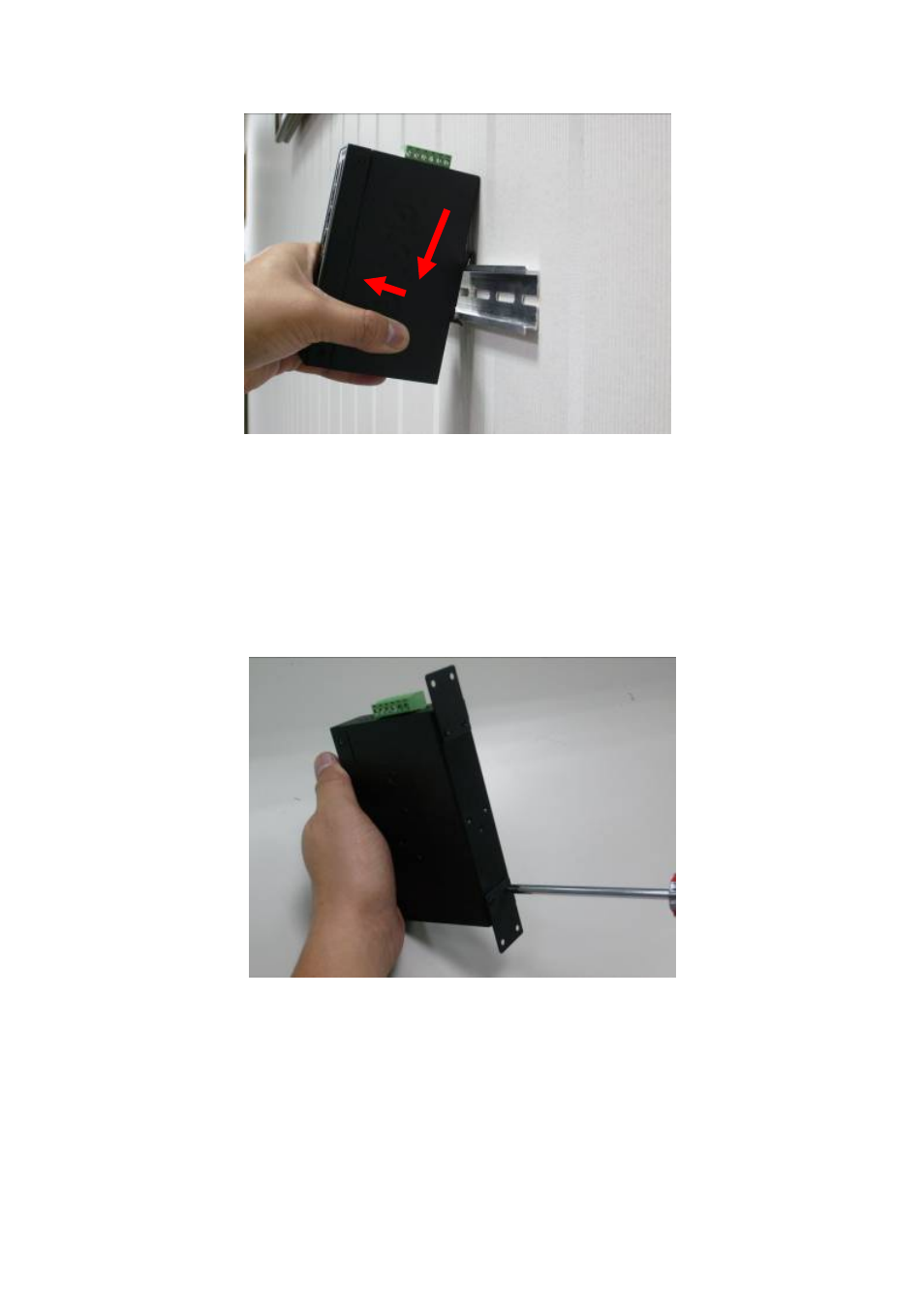

Step 5:

Lightly pull out the bottom of the switch for removing it from the track.

2.2.2 Wall Mount Plate Mounting

To install the Industrial Gigabit Ethernet Switch on the wall, please follow the instructions described

below.

Step 1:

To remove the DIN-Rail from the Industrial Gigabit Ethernet Switch, loose the screws to remove

the DIN-Rail.

Step 2:

Place the wall mount plate on the rear panel of the Industrial Gigabit Ethernet Switch.

Step 3:

Use the screws to screw the wall mount plate on the Industrial Gigabit Ethernet Switch.

Step 4:

Use the hook holes at the corners of the wall mount plate to hang the Industrial Gigabit Ethernet

Switch on the wall.

Step 5:

To remove the wall mount plate, reverse

the steps above.
