Q1
R1
75 Ohm
R1
75 Ohm
10 Ohm
R2
Q1
Vdd
Terminal
Isolated Circuit
Isolated Circuit
from RheoVac Supply
Terminal
Active Configuration
Passive Configuration
05026-1
CAUTION: Do not move config.
jumpers if instrument is powered.
RFL2N05
or Equiv.
RFL2N05
or Equiv.

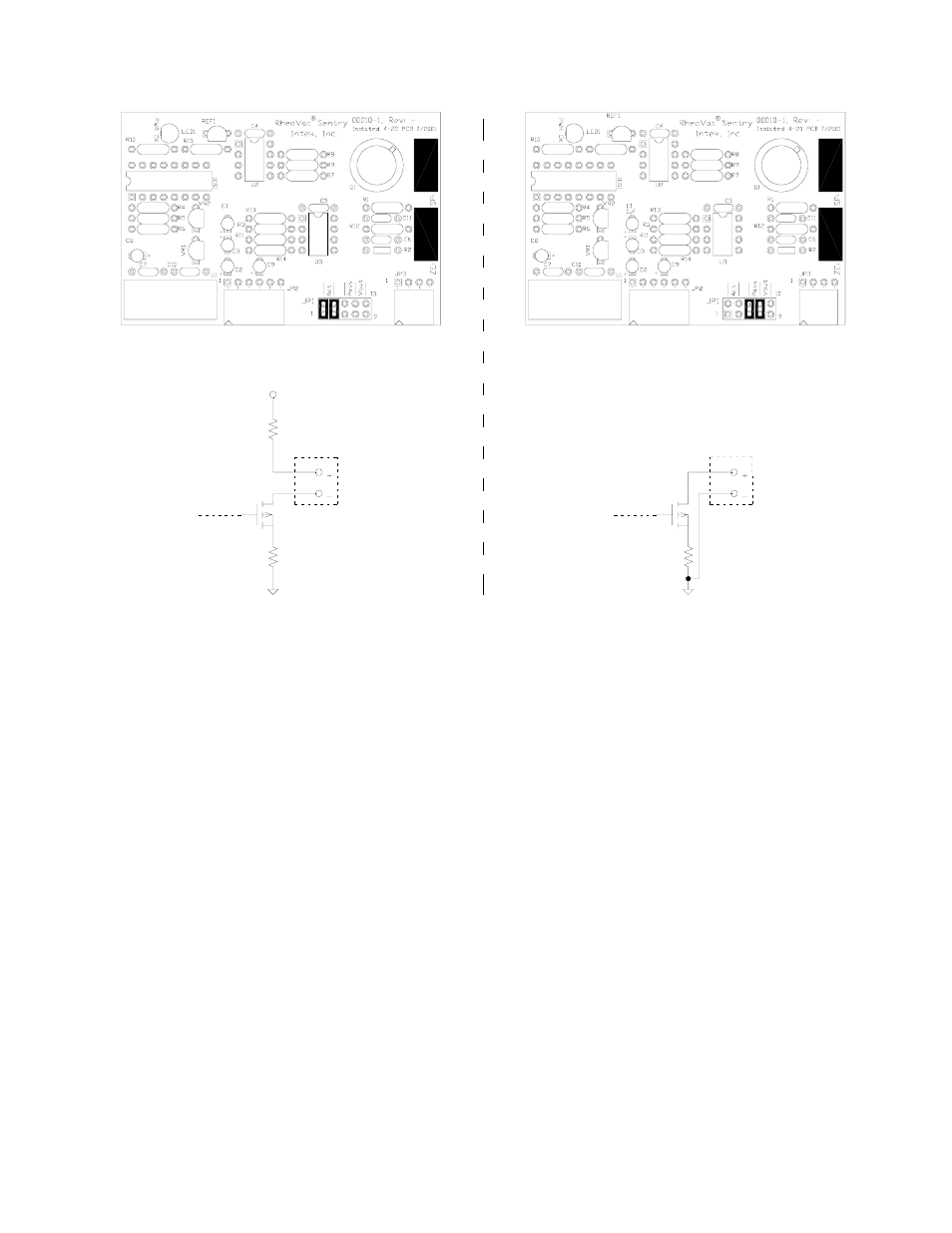

Figure 9 4-20 mA Output Circuit
- 13 -
