IC Realtime 2 MegaPixel Full HD IP Box Camara (ICIPS2000) User Manual
Page 26
20

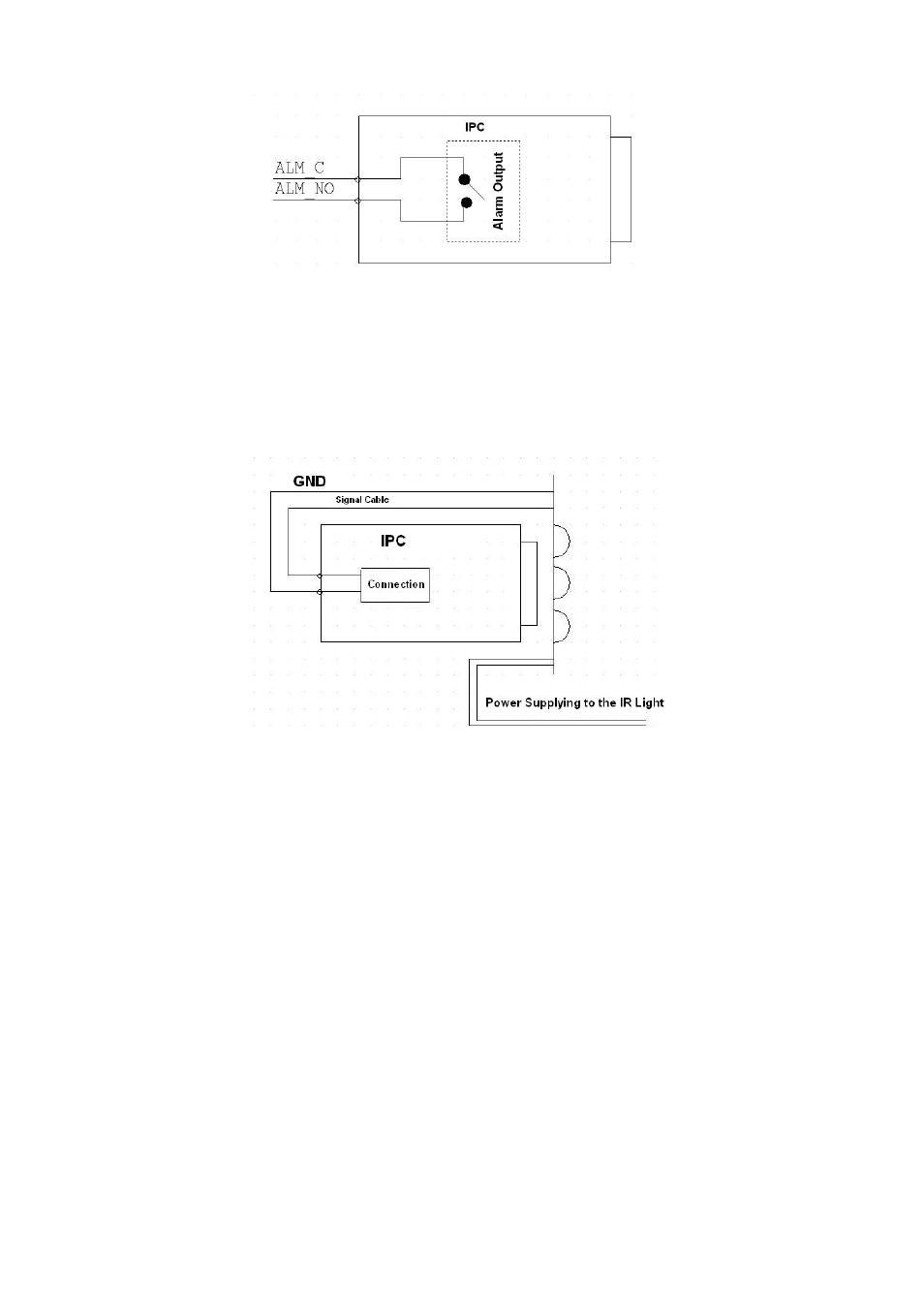

Figure 2-6
2.5.2 IR Light Connection
Please refer to the following figure for external IR light information. See Figure 2-7.
IR synchronization input signal. When the external IR light is on, the signal cable from the board
outputs the 3.3V/1mA. It outputs the 0V when the IR light is off.
Figure 2-7
