2 set address dial switch – IC Realtime 540TVL 23x High Speed PTZ Camera with 250' IR User Manual
Page 11
4
7
8
Baud Rate
OFF OFF 9600bps
ON
OFF 4800bps
OFF
ON
2400bps
ON ON 1200bps

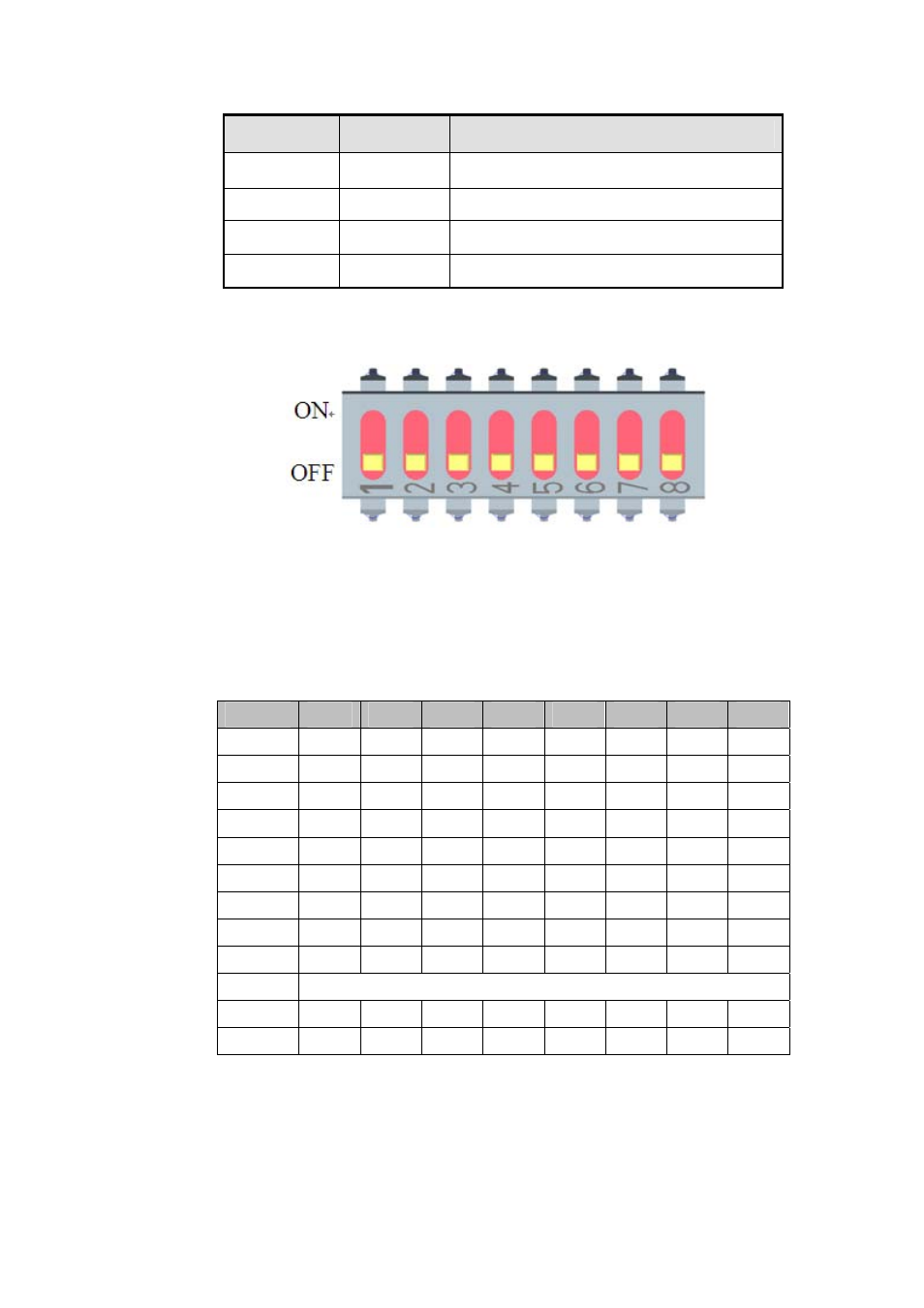

2.2 Set address dial switch
Figure 2-1
The encode mode adopts binary system. 1 to 8 is the valid bit. The highest address bit is 255. You can refer
to the following sheet for more information.
Note
The broadcast address is 255. When the main control device address is 255, you can connect all the
intelligent speed dome connected to the main control device for your debug.
Address
1
2
3
4
5
6
7
8
1
OFF OFF OFF OFF OFF OFF OFF OFF
1
ON OFF OFF OFF OFF OFF OFF OFF
2
OFF ON OFF OFF OFF OFF OFF OFF
3
ON ON OFF OFF OFF OFF OFF OFF
4
OFF OFF ON OFF OFF OFF OFF OFF
5
ON OFF ON OFF OFF OFF OFF OFF
6
OFF ON ON OFF OFF OFF OFF OFF
7
ON ON ON OFF OFF OFF OFF OFF
8
OFF OFF OFF ON OFF OFF OFF OFF
…… …………………………………………………………………
254 OFF ON ON ON ON ON ON ON
255 ON ON ON ON ON ON ON ON
