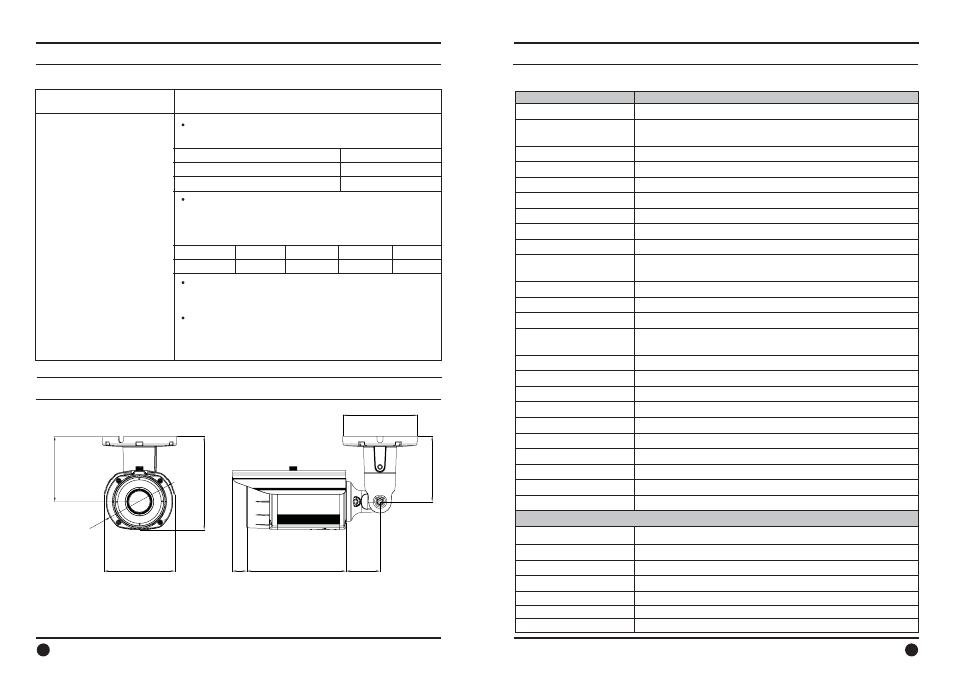

9. Troubleshooting
11. Specification
10. Dimension (mm)
Problems
Troubleshooting
RS-485 communication fails. · Please check the polarity between RS-485 Control
Port and RS-485 cable.
· Please check if the initial value of the RS-485
Communication setup matches between camera and
OSD Controller or DVR.
· We recommend that you make ground connection
between camera and controller for safe communication
control.
485 Control Board Connection Port
RS-485 Control Port
(+)CONNECTION TERMINAL(TRX+)
485+
(-)CONNECTION TERMINAL(TRX-)
485-
UART MODE RET PKT
Item
Camera ID BAUD RATE
Initial value
1
9600
8-NONE-1
ENABLE
* RS-485 Communication establishment initial value
· When RS-485 cable is not properly connected,
A warning message ‘ERROR RS-485 Connection.
Please reconnect and Reboot’ is displayed.Then please
turn off the power and connect the cable again.
MODEL
EL-2000
Image sensor
1/3” Sony Super HAD CCD II
E
īecƟve pixels
NTSC : 768(H) X 494(V)
PAL : 752(H) X 582(V)
H.Resolu
Ɵon
600TV Lines(Day)/650TV Lines(Night)
Synchronizing system
Internal
Video output
1.0Vp-p Composite 75Ohms
S/N ra
ƟŽ
More than 52dB(AGC OFF)
Min.Illumina
Ɵon
0Lux
Shu
Ʃer speed
NTSC : 1/60~90,000sec. PAL : 1/50~90,000sec.
Gamma control
Standard
ɶ=0.45
White Balance
1500°K ~ 11,000°K Auto.
ATW/Cor-Roll/PUSH/MANUAL
Gain control
Standard : -6dB ~ 34dB Auto / Maximum OSD
Smear e
īect
0.005%
Power source
12VDC / 24VAC
Opera
Ɵng current
210mA / 12VDC(IR OFF), 630mA/12VDC( IR ON)
110mA / 24VAC(IR OFF), 250mA/24VAC( IR ON)
Lens
2.8 ~12mm Varifocal motorized
Lens op
Ɵon
5 ~ 50mm Varifocal motorized
IR spectrum
850nm
Viewable distance
Up to 50M at moonless night
Iris control
DC IRIS
MTBF of IR
20,000 hours
Opera
Ɵng temp
-10°C ~ 50°C
Humidity
0%RH ~ 90%RH
Measurement(mm)
110(W) x 138(V) x 272.3(L)
Weight(Approx.g)
2500
Fun
ĐƟon
WDR
OFF/ON(User selectable by OSD)
2D/3DNR
OFF/ON(User selectable by OSD)
Sens-up
OFF/x2 ~ x512
Mo
Ɵon detecƟon
OFF/ON(8 Zone s
Ğƫng available)
Digital zoom
OFF/x1 ~ x8.30
White balance
ATW/COL_ROLL/PUSH/MANUAL
Privacy mask
OFF/ON(8 Zone s
Ğƫng available)
