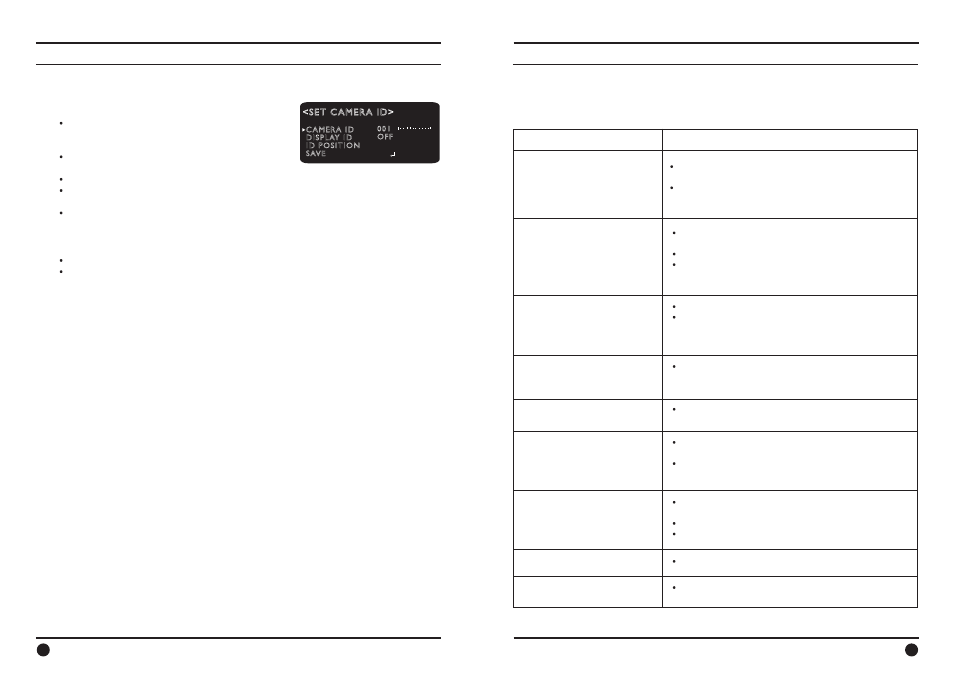

8. Functions and operation 9. Troubleshooting
- CAMERA ID
· CAMERA ID : Determines the camera’s
identification number
(between 0 and 255).
· ID POSITION: Displays camera title on top
left & right side of the screen.
· BAUD RATE : You can select 4800/9600/19200/38400/57600 bps .
· SAVE/REBOOT: Select this to save the COMM SET menu setting and return to
the main screen.
· PREVIOUS: Return to COMM SET menu.
ත Note
· RS-485 cable : Please connect (-) firstly and then (+).
· If there happens RS-485 cable conection error or any other problems, a message
‘ERROR RS-485 Connection. Please Reconnect and Reboot’ is displayed.
Please reset the power or OSD.
- FACTORY RESET
Resets the camera setting to the factory defaults.
But menu is not initialized.
C AMERA ID
DISPLAY ID
ID POSITION
SAVE
001
OFF
8-12. EXIT
Save all setting menus by pressing the Tact SW and then exit by pressing EXIT menu.
If there are problems in operating, please refer to the checklist below. If the problem
persists, please contact the agent where this product is purchased.
Problems Troubleshooting
Nothing appears on the screen. · Please check that the power cord and line connection
between the camera and monitor are fixed properly.
· Please check that you have properly connected VIDEO
cable to the camera VIDEO output jack.
The image on the screen is dim. · Is lens stained with dirt? Clean your lens with soft,
clean cloth.
· Set the monitor to proper condition.
· If the camera is exposed to too strong light, change
the camera position.
The image on the screen is
dark. · Adjust the contrast feature of the monitor.
· If you have an intermediate device,
GGšŒ›G›ŒG^\ȳGVGoTG—™–—Œ™“
(Please check the impedance)
The camera is not working
properly, and the surface of the
camera is hot. · Please check that you have properly connected the
camera to an appropriate power source.
{ŒGkh€Vupno{G”Œ•œG‹–ŒšG
not work. ·Gw“ŒˆšŒGŠŒŠ’GGkh€Gupno{G”Œ•œGšGšŒ›G›–G˄h|{vX˅U
The SENS-UP function does
not work. · Please check that AGC of EXPOSURE SETUP menu is
GGšŒ›G›–G˄vmm˅U
·Gw“ŒˆšŒGŠŒŠ’G›ˆ›Gzo|{{lyG–Glwvz|ylGzl{|wG
GG”Œ•œGšGšŒ›G›–G˄hUmsr˅G–™G˄mplk˅U
The MOTION DETECTION
function is not working. · Please check if MOTION DETECTION function is
turned on.
·Gw“ŒˆšŒGŠŒŠ’GGtkGsl}lsGšG›––G“–žU
· Please check the setting of the MD area.
Color is not correct. · w“ŒˆšŒGŠŒŠ’G›ŒGšŒ››•ŽG–G~op{lGihsGzl{|wG”Œ•œGU
The screen flickers continually. · Please check that direction of camera turns toward
the Sun.
