20 21
C AM NAME
MOTION DET
PRIVACY MASK
LANGUAGE
STABILIZER
MONITOR TYPE
FACE REC
COMM SET
FACTORY RESET
SAVE
OFF
OFF
OFF
ENG
OFF
CRT
OFF
20 21

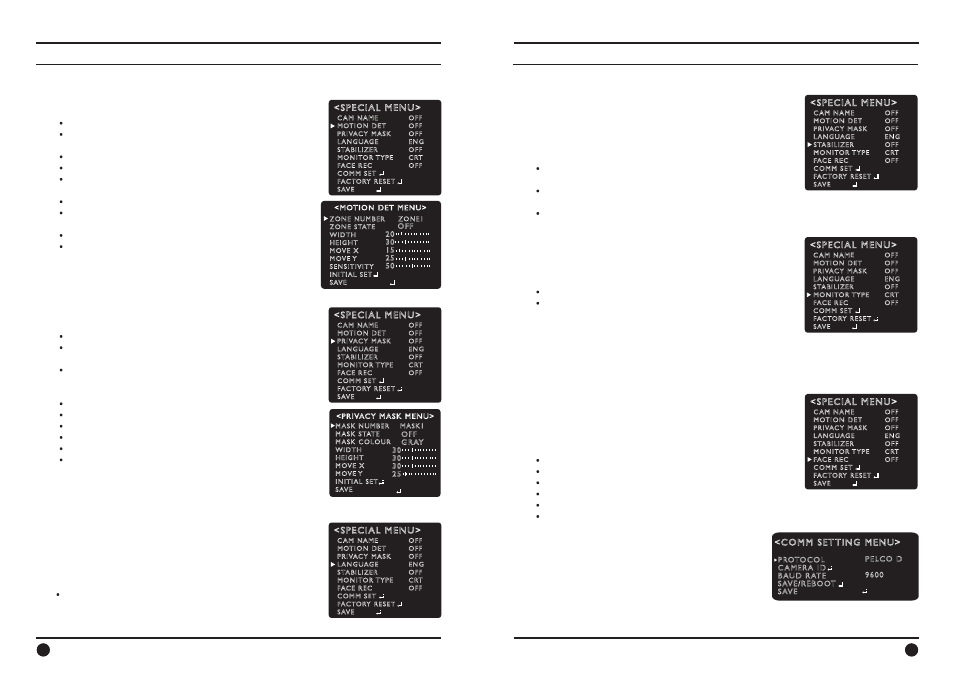

8. Functions and operation 8. Functions and operation
- MOTION (Motion Detection: MD)
· ZONE NUMBER: You can select up to 8 MD areas.
· ZONE STATE: Determines whether to use the MD
area selected in ZONE NUMBER.
· WIDTH: Determines the coordinate of the horizontal size.
· HEIGHT: Determines the coordinate of the vertical size.
· MOVE X: Determines the coordinate of the horizontal
axis.
· MOVE Y: Determines the coordinate of the vertical axis.
· SENSITIVITY: Determines the coordinate of the
sensitivity.
· INITIAL SET: Initialize all setting of MOTION DET menu.
· SAVE: Select this to save the MOTION menu setting
and return to the SPECIAL menu.
- PRIVACY (Privacy Masking)
· MASK NUMBER: You can select up to 8 PRIVACY areas.
· MAKS STATE: Determines whether to use the selected in
AREA SELECT.
· SENSITIVITY: Determines area color. You can select
GRAY, WHITE, RED, GREEN, BLUE,
YELLOW, BLACK.
· WIDTH: Determines the coordinate of the horizontal size.
· HEIGHT: Determines the coordinate of the vertical size.
· MOVE X: Determines the coordinate of the horizontal axis.
· MOVE Y: Determines the coordinate of the vertical axis.
· INITIAL SET: Initialize all setting of PRIVACY menu.
· SAVE: Select this to save the PRIVACY menu setting
and return to the SPECIAL menu.
- LANGUAGE
You can select the menu language according to your
requirements.
· English, Korean, Russian, Spanish, French
- STABILIZER (DIS)
This function mitigates any picture movement due to
external factors such as wind.
ත Note
· The chance of resolution decrease is existed because
STABILIZER function uses the digital zoom.
· STABILIZER doesn’t operate when background
illumination is too low.
· STABILIZER doesn’t operate when object pattern is monotonic like sky or white wall.
- MONITOR TYPE
· CRT: GAMMA 0.45
· LCD: GAMMA 1.0
- FACE REC (Face Recognition)
A special area where the internal illumination is dark
while strong back light exists behind the object, normally
human face becomes unrecognizable.
This mode is suited for this particular situation.
· FR BRIGHTNESS : 0 ~ 40
· FR CONTRAST : 0 ~ 40
· COLOR SAT : 0 ~ 200
· CONTRAST : 0 ~ 100
· OUTPUT LEVEL : -64 ~ 64
· SHARPNESS : 0 ~ 100
- COMM SET (Communication seting)
This function sets up the camera communication
status when controlling the camera through an
external control device.
ZONE NUMBER ZONE1
ZONE STATE
WIDTH
HEIGHT
MOVE X
MOVE Y
SENSITIVITY
INITIAL SET
SAVE
OFF
20
30
15
25
50
C AM NAME
MOTION DET
PRIVACY MASK
LANGUAGE
STABILIZER
MONITOR TYPE
FACE REC
COMM SET
FACTORY RESET
SAVE
OFF
OFF
OFF
ENG
OFF
CRT
OFF
MASK NUMBER MASK1
MASK STATE
MASK COLOUR
WIDTH
HEIGHT
MOVE X
MOVE Y
INITIAL SET
SAVE
OFF
GRAY
30
30
30
25
C AM NAME
MOTION DET
PRIVACY MASK
LANGUAGE
STABILIZER
MONITOR TYPE
FACE REC
COMM SET
FACTORY RESET
SAVE
OFF
OFF
OFF
ENG
OFF
CRT
OFF
C AM NAME
MOTION DET
PRIVACY MASK
LANGUAGE
STABILIZER
MONITOR TYPE
FACE REC
COMM SET
FACTORY RESET
SAVE
OFF
OFF
OFF
ENG
OFF
CRT
OFF
C AM NAME
MOTION DET
PRIVACY MASK
LANGUAGE
STABILIZER
MONITOR TYPE
FACE REC
COMM SET
FACTORY RESET
SAVE
OFF
OFF
OFF
ENG
OFF
CRT
OFF
C AM NAME
MOTION DET
PRIVACY MASK
LANGUAGE
STABILIZER
MONITOR TYPE
FACE REC
COMM SET
FACTORY RESET
SAVE
OFF
OFF
OFF
ENG
OFF
CRT
OFF
PROTOCOL
C AMERA ID
B AUD RATE
SAVE/REBOOT
SAVE
PELCO D
9600
