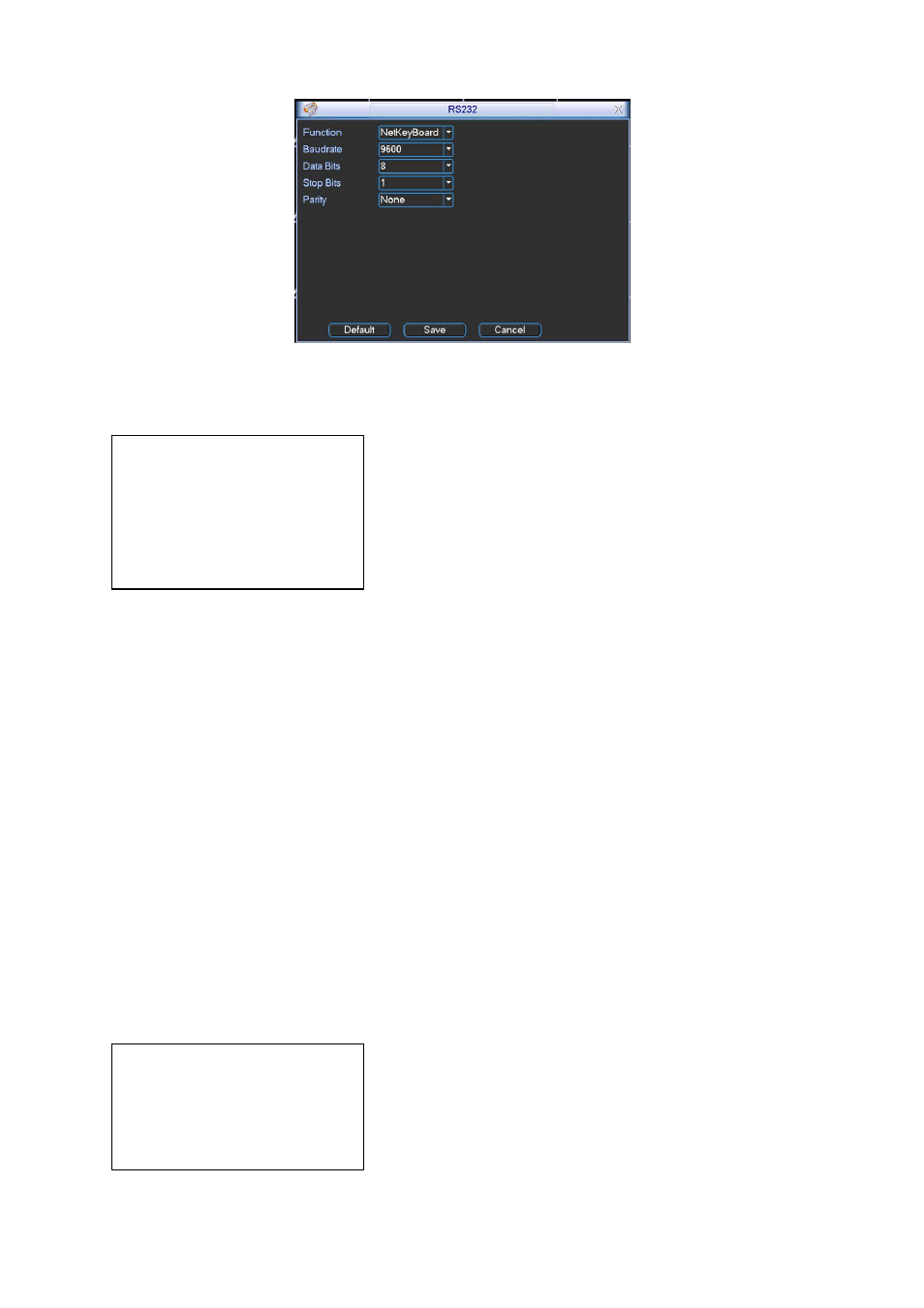

Figure 5-8
5.3.2 Keyboard
Setup
after Serial Port Connection
In menu, go to control point setup. Here you need to input the following information.
z
ID:
If there is a * before the ID number (such as *3), it means this front device has control point setup.
You can view device *3 corresponding type and name.
z
Device
name:
Here is for you to give a name to the front device.
z
Device
type
There are several selections such as DVR/Dome/CMS/NVS. You can use left/right key to select
device type and then click up/down to go on setup.
z
Connection
type
Please use up/down to highlight connection type and then use left/right to select type.
Click “ENTER” to set the following items:
z
232
address
z
Parity
z
Protocol
z
Stop
bit
z
Baud
rate
z
Data bit
Note:
232 address and 485 address are corresponding DVR local number.
ID: *3
Dev name: DVR-1
Dev type: DVR
Connection type: RS232
232 Add: 8 Parity: None
Protocol: DH2 Stop bit: 1
Baud rate: 9600
Data bit: 8
