12

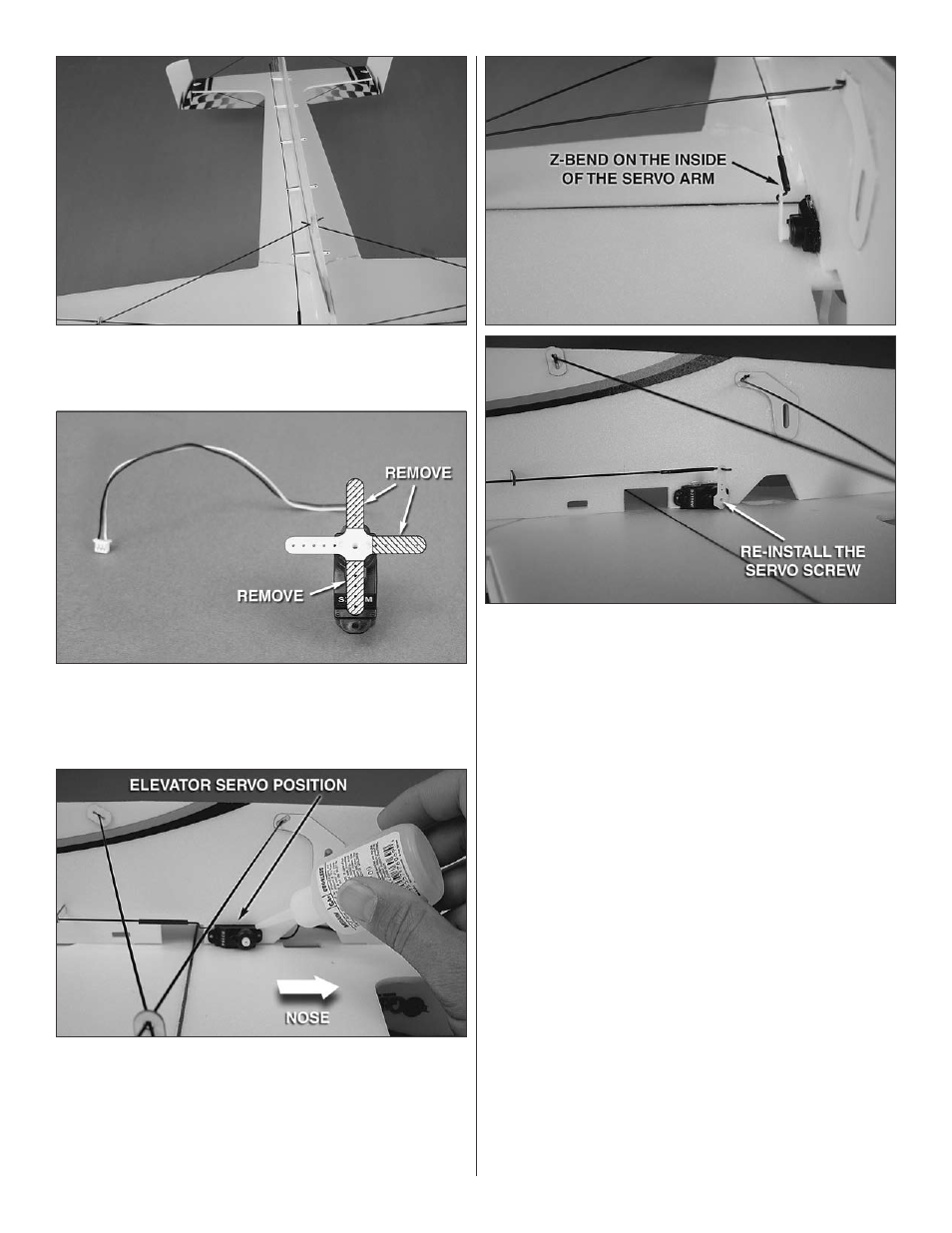

o 1. Install the pre-assembled elevator pushrod by inserting
the pushrod guides through the fuselage as shown. DO NOT
glue the pushrod guides in place at this time.
o 2. Locate your elevator servo. Remove the servo screw
from the servo output shaft. Install the larger arm onto the
servo. Center the servo using your radio and, using some
diagonal pliers, remove the three extra servo arms.
o 3. Install the elevator servo, without the servo arm, by
placing it into the middle servo mount in the fuselage, with
the output shaft on the forward side as shown.
NOTE:
Pay carefull attention to the servo position in this picture.
Glue the servo in place using some foam-safe CA glue.
Be careful to not get any glue inside the servo case. This
could ruin your servo.
o 4. Thread the z-bend onto the outer most hole of the servo
arm. Note: If you are not using a computer radio, and do not
wish to set your model up with 3D control throws, you may
choose the hole that is most appropriate. When the servo
arm is installed correctly the pushrod will exit closest to the
fuselage, as shown. Finish the elevator servo installation by
centering the servo, placing the servo arm onto the servo,
and reinstalling the servo screw.
