10

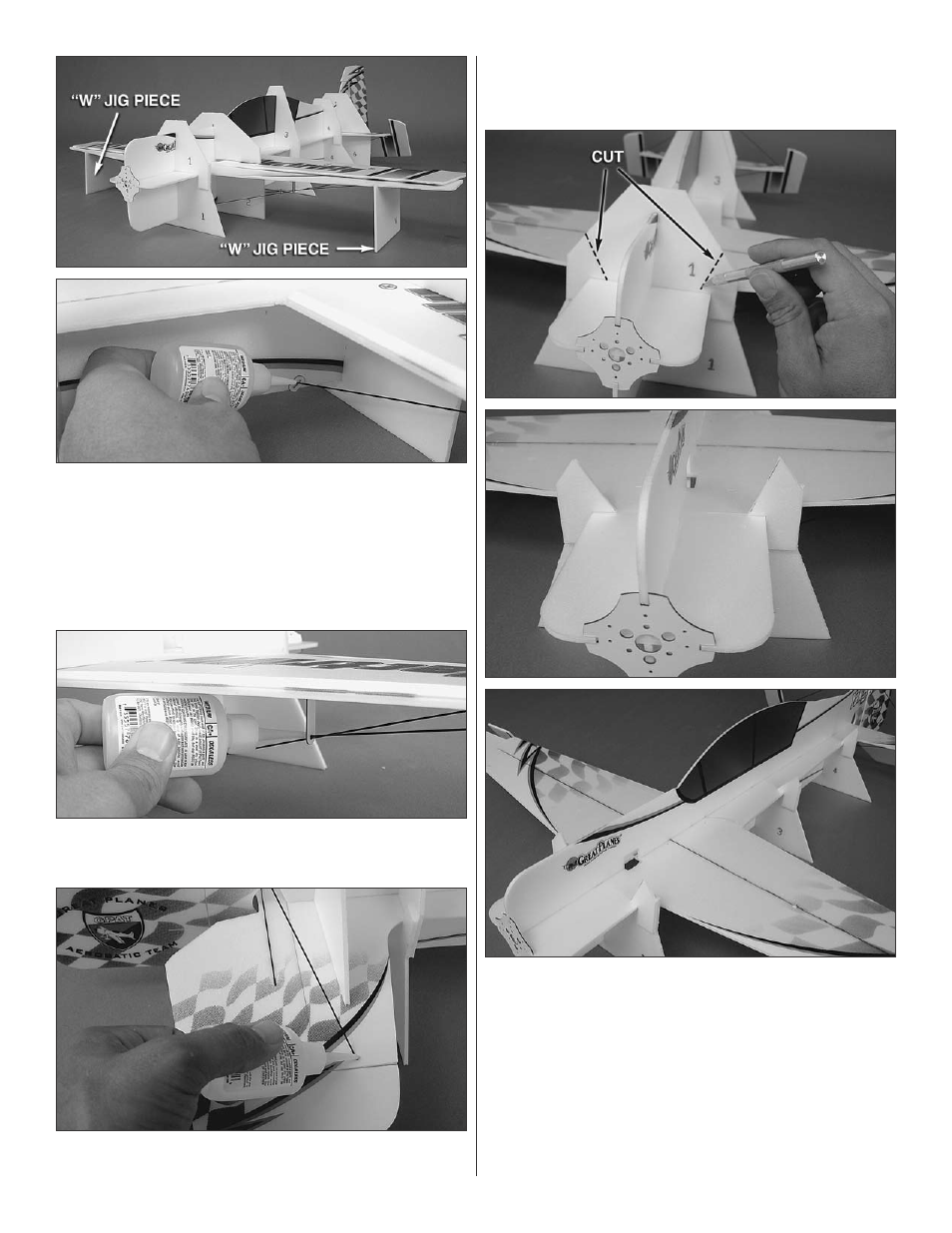

o 14. Turn the Yak back, right side up. Locate the two jig
pieces marked with a “W” and place them under the wings in
the location shown. With all the jig pieces in place, adjust the
carbon rods, if necessary, to be certain the wing and horizontal
stabilizer are level and straight. Once the wings and stab are
aligned, glue the carbon rods to the fuselage, and glue the
carbon brace doublers over the slits in the fuselage.
o 15. Allow a few moments for the glue to cure and then glue
the carbon rods in the wing to the carbon brace supports.
o 16. Locate the two 7" [178mm] carbon rods. Slide these
carbon rods through the slit in the top of the vertical stabilizer
and into the slit at either tip of the horizontal stabilizer. Double
check the alignment of the vertical stabilizer and then glue
the carbon rods in place.
o 17. Using a hobby knife, remove the top portion of
assembly jig pieces 1, 2, and 4 that are close to the fuselage,
as shown. There should still be a small amount of the top
pieces left, to keep the jig attached to the fuselage.
