8

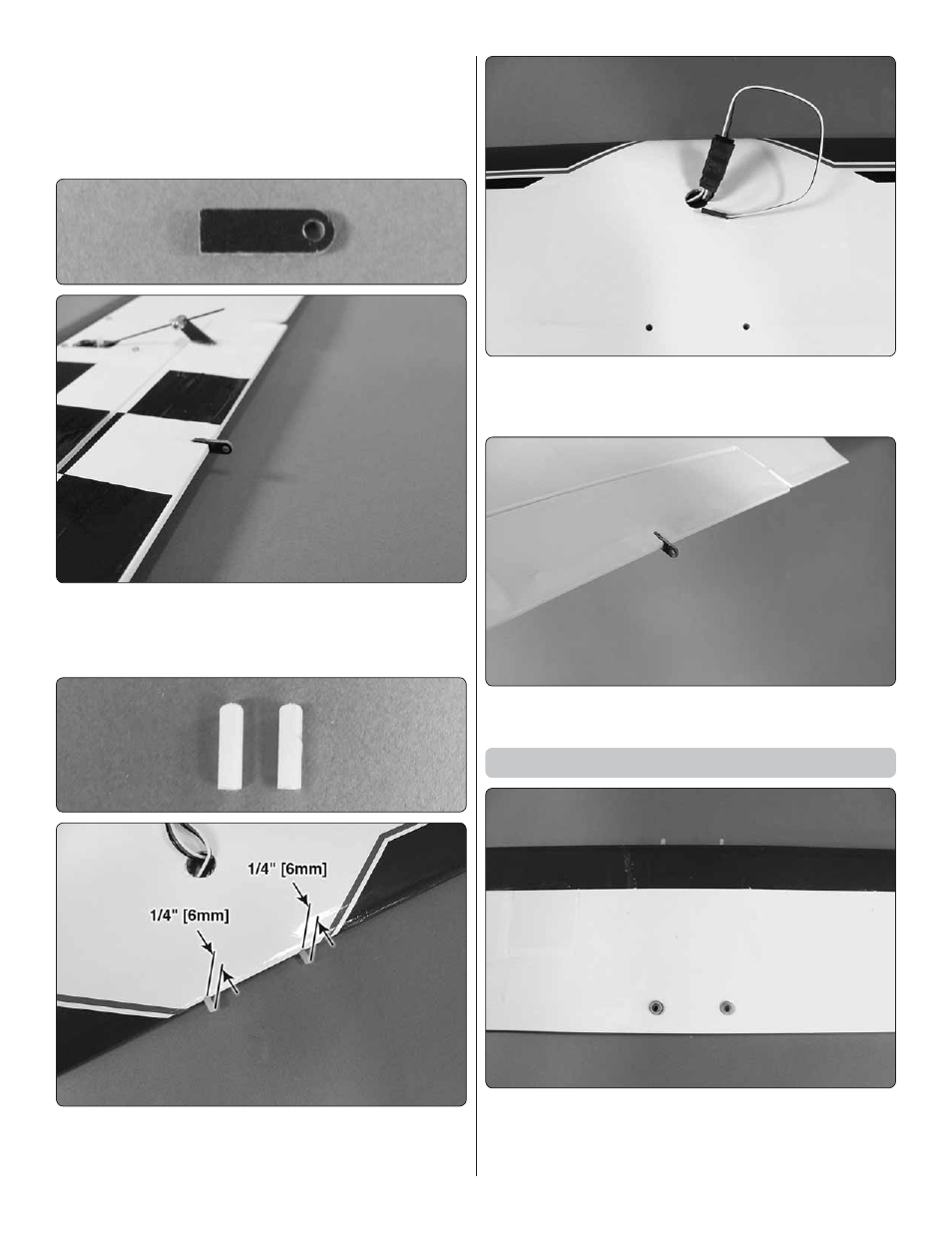

pushrod wire and then insert the screw-lock connector into
the aileron control horn. Secure the connector with the black
nylon retainer. Center the aileron servo and the aileron. Apply
a drop of thread locker to the 2-56 x 3/16" [4.8mm] set screw
and then tighten the screw against the pushrod wire. Cut off
the excess pushrod wire, leaving 1/4" beyond the connector.
❏ ❏
10. Glue one of the 1/2" [13mm] long aileron linkage
rods into the slot in the aileron.
❏
11. Repeat steps 1-10 for the left wing panel.
❏
12. Locate two 1/8" x 3/8" [3mm x 10mm] nylon pins. Glue
them into the holes in the leading edge of the bottom wing
leaving 1/4" [6mm] extending from the leading edge of the wing.
❏
13. Connect the aileron to a Y-connector. Be sure to
secure the connection with heat shrink tubing, tape or some
other method.
❏
14. Glue the remaining 1/2" [13mm] long aileron linkage
rods into the slot in the ailerons on the top wing.
Install Stab, Elevators, Fin & Rudder
❏
1. On the bottom wing, glue two plywood wing bolt doubler
rings to the top center of the wing, centering them over the
wing bolt holes.
