16
❏

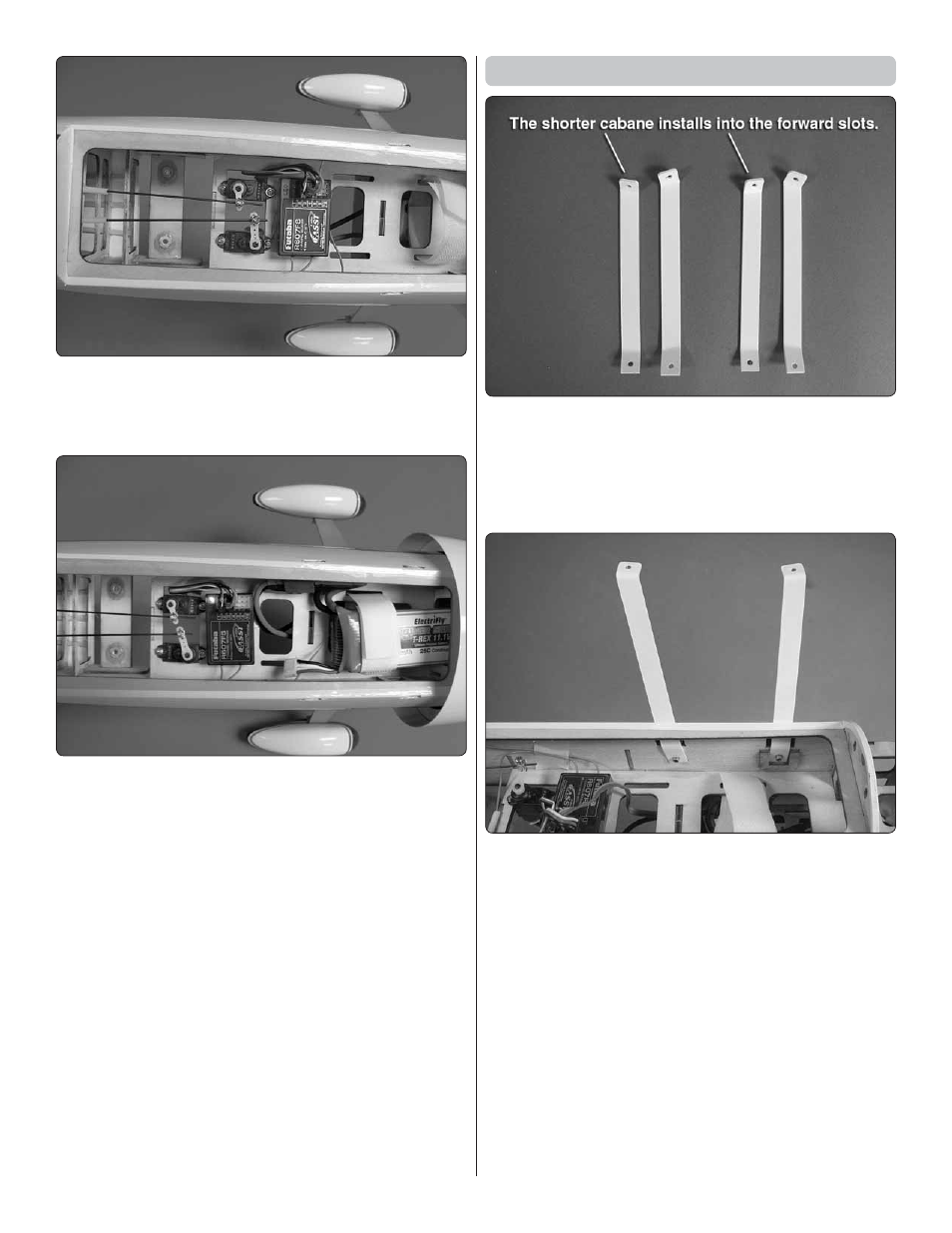

10. Plug the servo and ESC leads into the appropriate
channels of the receiver and then install the servo to the
tray. Route the antenna wire following the instructions with
the receiver.
❏
11. Install the battery onto the tray, sliding the battery as far
forward as possible. Secure the battery with the Velcro strap.
If you plugged the battery into the ESC, unplug it before
proceeding.
Install Cabanes, Wings & Struts
❏
1. Locate the four wing cabanes and lay them out as shown
in the photo. It is important that you install the correct cabane
in the correct position in the fuselage. The shorter cabane
installs into the forward slots and the longer cabane installs
in the rear slots. Mark each of the cabanes to eliminate any
confusion while installing them.
❏
2. Slide the left side cabanes into the proper slots in the
left side of the fuselage. Use the included allen wrench to
install a 2-56 x 1/4" [6mm] socket head cap screw into each
cabane. Be sure to use a couple of drops of thread locker
on each of the screws. When tightening the screws, tighten
them enough that they compress the balsa wood. This allows
the cabanes to be tight to the plywood on the opposite side
of the balsa. Repeat this for the right side of the fuselage.
