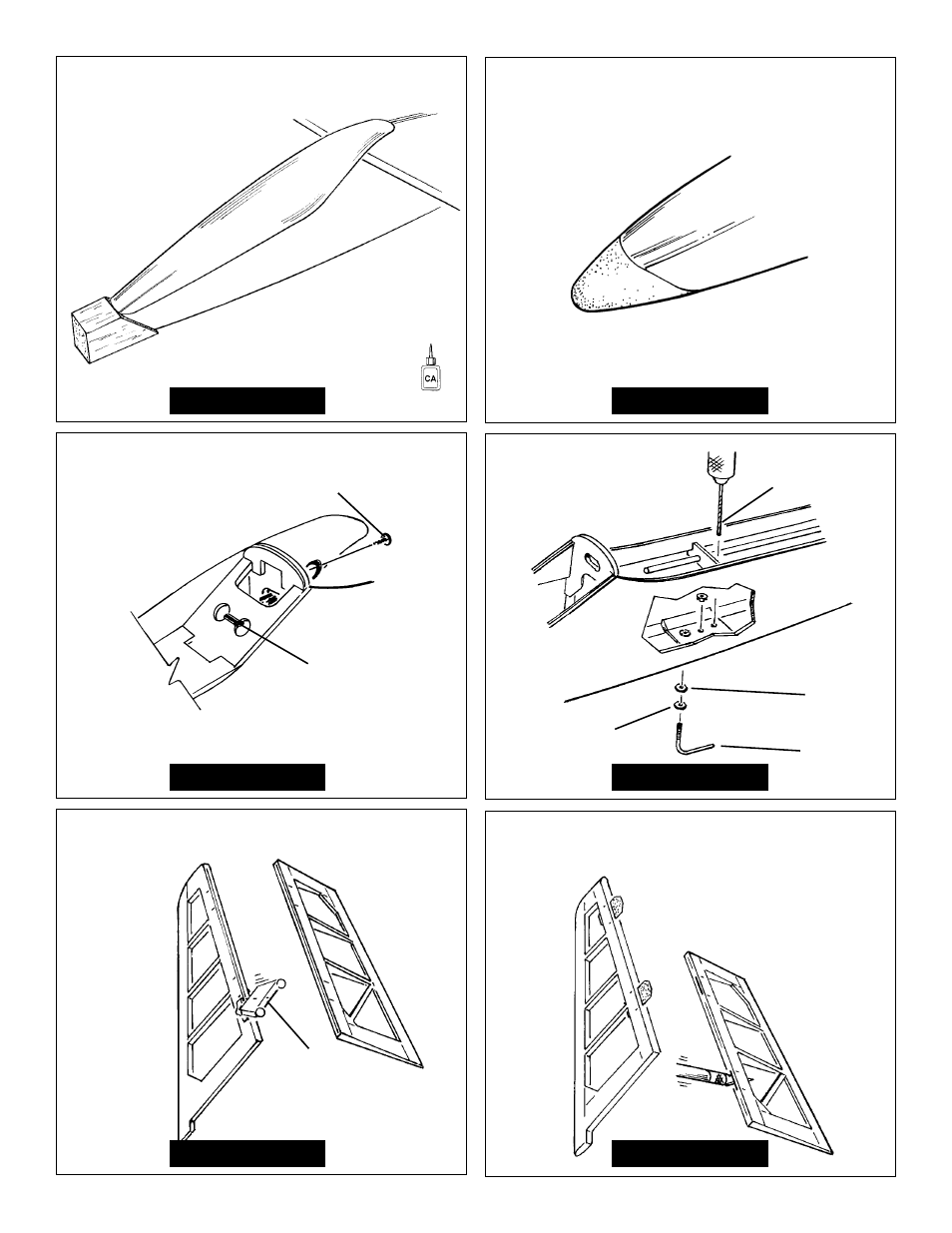

Trim the plastic canopy to fit the canopy
frame and fuselage.

Sand the nose block to shape.
(See plan)

Step 5

Step 6

Drill 3 holes in F9 - 1/16"
[1.6mm] ply tow hook mount.

Press in the three
blind nuts.

Step 7

Step 8

SMALL
RUBBER
BAND

4-40 TOW

HOOK

CENTERLINE

MARKING

TOOL

4-40

WASHER

4-40 NUT

# 2 X 3/8" [9.5mm] SCREW

1/8" [3mm]
DRILL BIT

Mark a center
line on the fin
and rudder.

Carefully cut hinge
slots at the locations
shown on the plan.

Cut two 3/4" x 1" [19mm x 25.4mm] hinges
from the 2" x 9" [50.5 x 228.5mm] hinge strip.

Step 9

Step 10

HINGE THE RUDDER

Medium

DO NOT

GLUE

YET.
