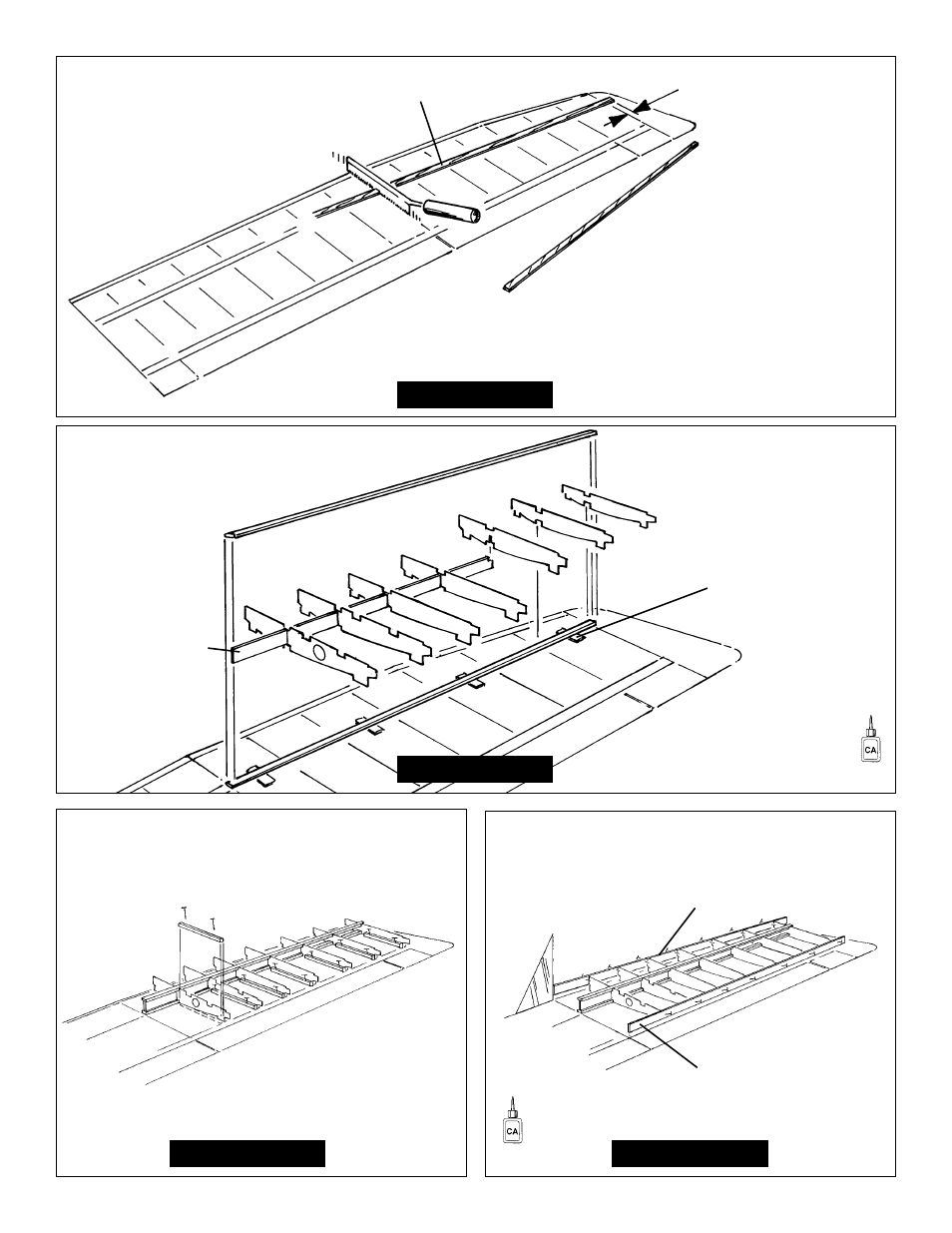

Step 26

Cut the spars straight with rib 9.

Position the 1/8" [3.2mm]
spars over the plan.

1/8" [3.2mm]

BUILD THE

OUTER PANEL

Step 27

W11

W10

W23

W12

W13

W14

W15

W16

1/16" [1.6mm]

SHIMS

Make rib jigs from
the 3/16" [4.8mm]
square sticks.

Step 28

Step 29

1/16" X 3/8" X 42" [1.6mm X 9.5mm X 1067mm]

BALSA LE

(Left over from the inner panel.)

1/8" X 1/2" X 42" [1.6mm X 9.5mm X 1067mm]

BALSA TE

(Left over from the inner panel.)

Thin
