sander to make a “V” on the leading edge of the aileron.
Reinstall the aileron on the wing. Make sure that the aileron
can move up at least 1/2" [13mm] and down at least 1/2" [13mm].
❏
5. Return to step 1 and make the other aileron.
❏

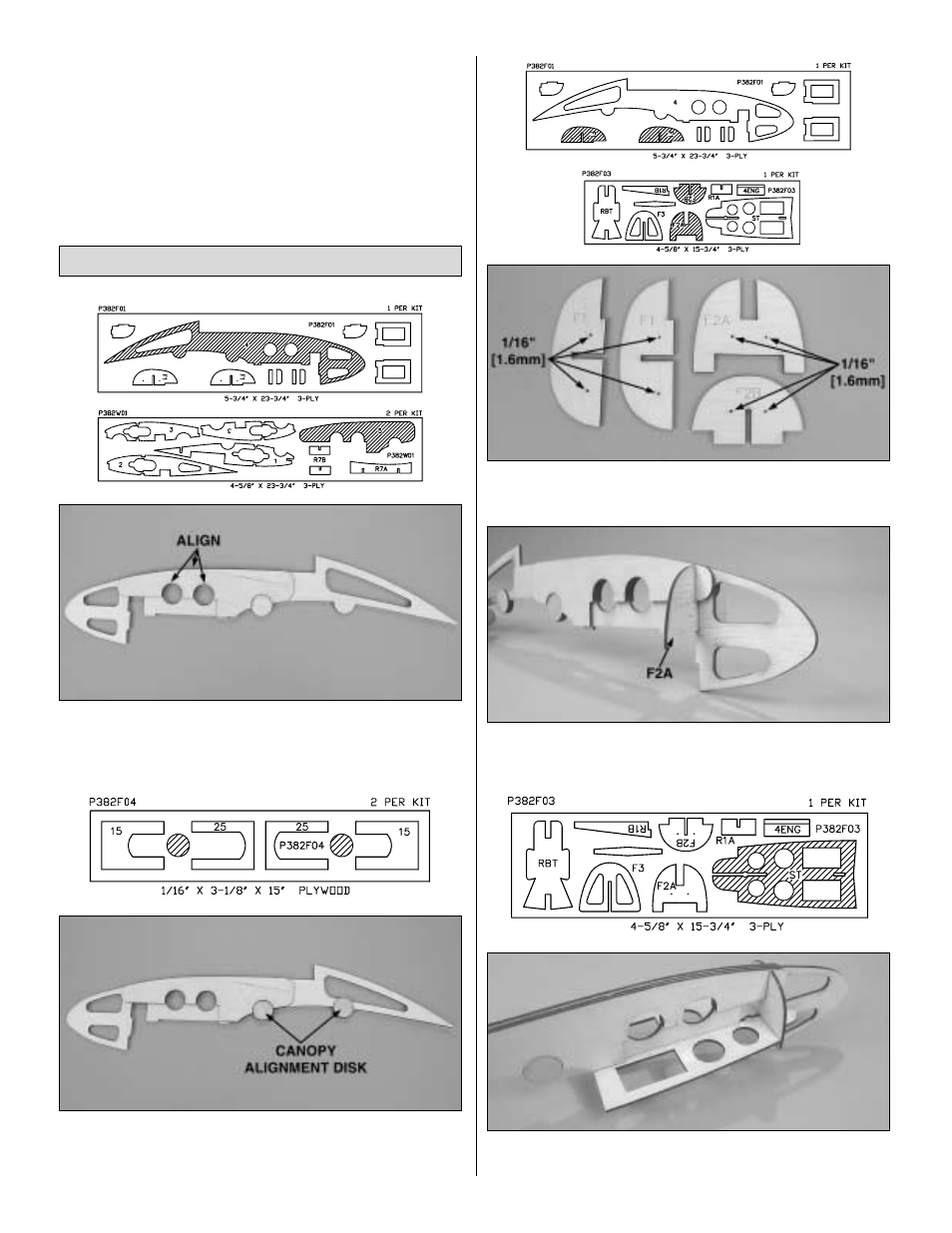

1. Glue the die-cut 3-ply canopy frame doublers (5) to
both sides of the die-cut 3-ply canopy frame (4), aligning
the edges of the frames and the two center holes.
❏
2. Glue the four die-cut 1/16" [1.6mm] plywood canopy
alignment disks on each side of the alignment tabs on the
canopy frame.
❏
3. Drill 1/16" [1.6mm] pilot holes at the punch marks in
the die-cut 3-ply formers F1, F2A and F2B.
❏
4. Glue former F2A to the canopy frame so it is perpendicular
to the frame.
❏
5. Glue the die-cut 3-ply servo tray to the canopy frame
and former F2A, perpendicular to the frame.
Build the Canopy Frame
27
