7
❏
3. Apply the soft side of the hook and loop material to the
bottom of the motor battery. Insert the battery in the fuselage
and secure it with the battery strap.
❏

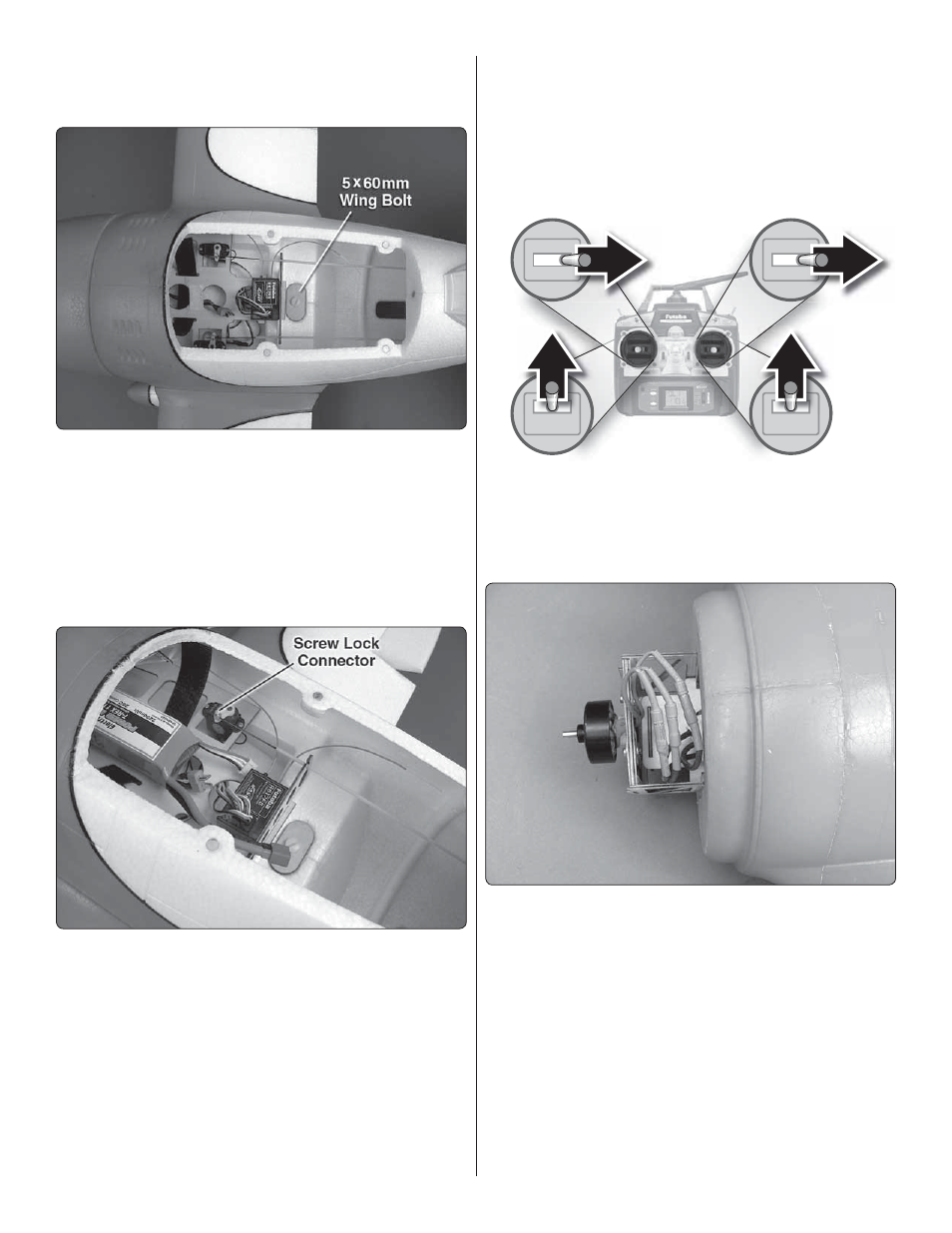

4. Install the wing and secure it with the nylon 5  60 mm
wing bolt.
❏
5. Plug the aileron servos Y-harness into the receiver.
CAUTION: Perform the follow steps without the propeller
installed.
❏
6. Switch on your transmitter and then connect the motor
battery to the ESC.
❏
7. Adjust the trims on the transmitter so that they are
centered. Center the elevator and rudder and tighten the
screws in the brass screw lock connectors.
FULL
THROTTLE
RUDDER
MOVES
RIGHT
ELEVATOR
MOVES DOWN
RIGHT AILERON
MOVES UP
LEFT AILERON
MOVES DOWN
4-CHANNEL RADIO SETUP
(STANDARD MODE 2)
❏
8. Check that all the control surfaces move in the correct
direction. If not, reverse the controls on the transmitter.
❏
9. Check that the motor is rotating in the correct direction
(counterclockwise when viewed from the front). If it is not,
remove the cowl and switch two of the three motor wires.
❏
10. Use a box or something similar to prop up the bottom
of the fuselage so the horizontal stabilizer and wing are level.
