5

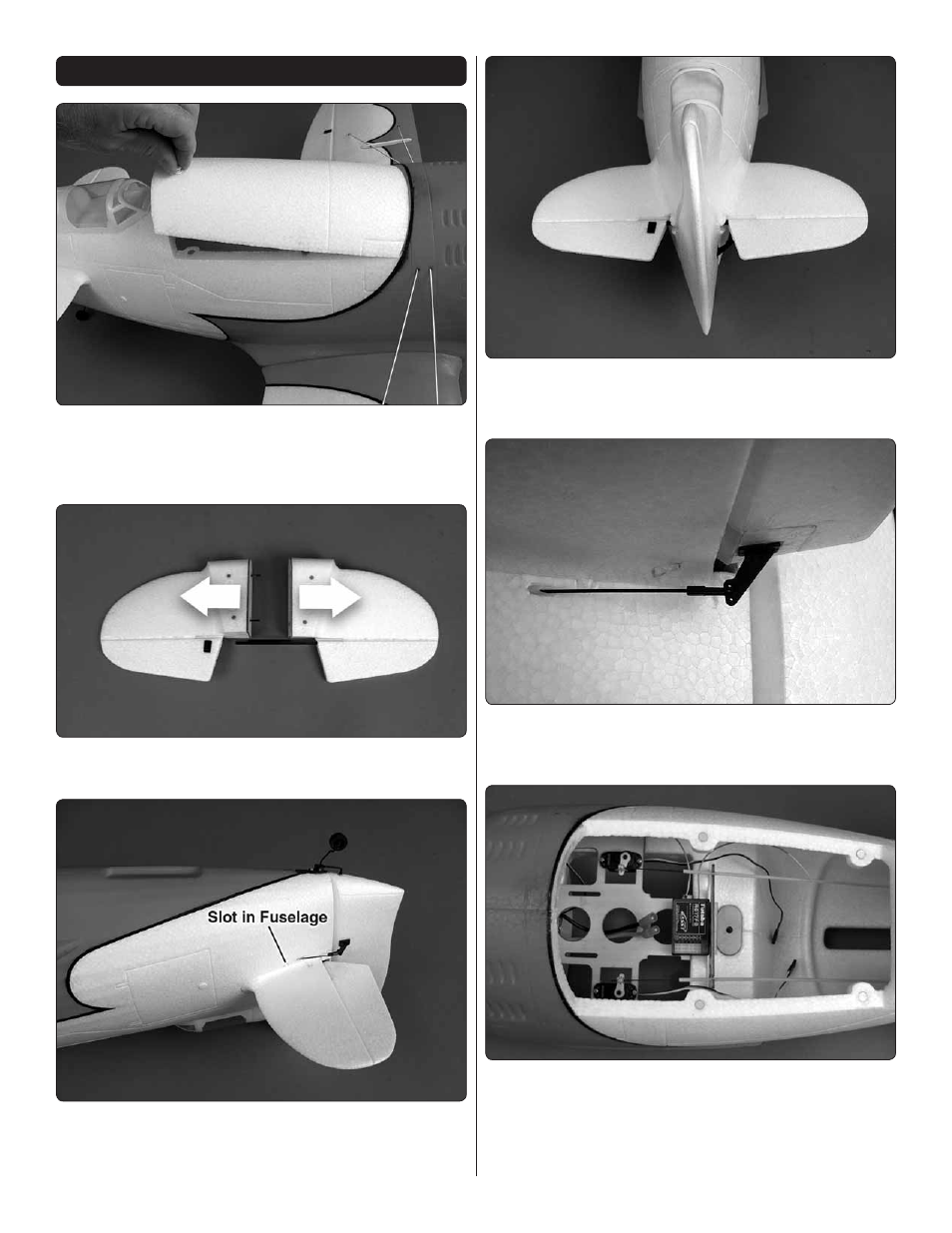

HORIZONTAL STABILIZER INSTALLATION
IMPORTANT: To remove the battery hatch cover, pull straight
up on the knob at the aft end of the hatch cover. The magnets
hold the hatch on well. It does require some force to lift the
hatch.
❏
1. Separate the two stabilizer halves by carefully pulling
them apart.
❏
2. Insert the right stabilizer half into the fuselage. Note that
the bottom of the stabilizer keys into the slot in the bottom
of the opening.
❏
3. Carefully insert the left stabilizer into the fuselage. Align
the elevator joiner with the hole in the elevator. Center the
horizontal stabilizer in the fuselage.
❏
4. Unclip the Faslink from the elevator pushrod. Insert the
elevator pushrod in the middle hole of the elevator control
horn and reinstall the Faslink.
❏
5. Attach a piece of double-sided tape to the back of your
receiver. Remove the backing from the tape and attach the
receiver to the top of the battery tray.
❏
6. Plug the rudder and elevator servos and the ESC into
the receiver.
