7
❏

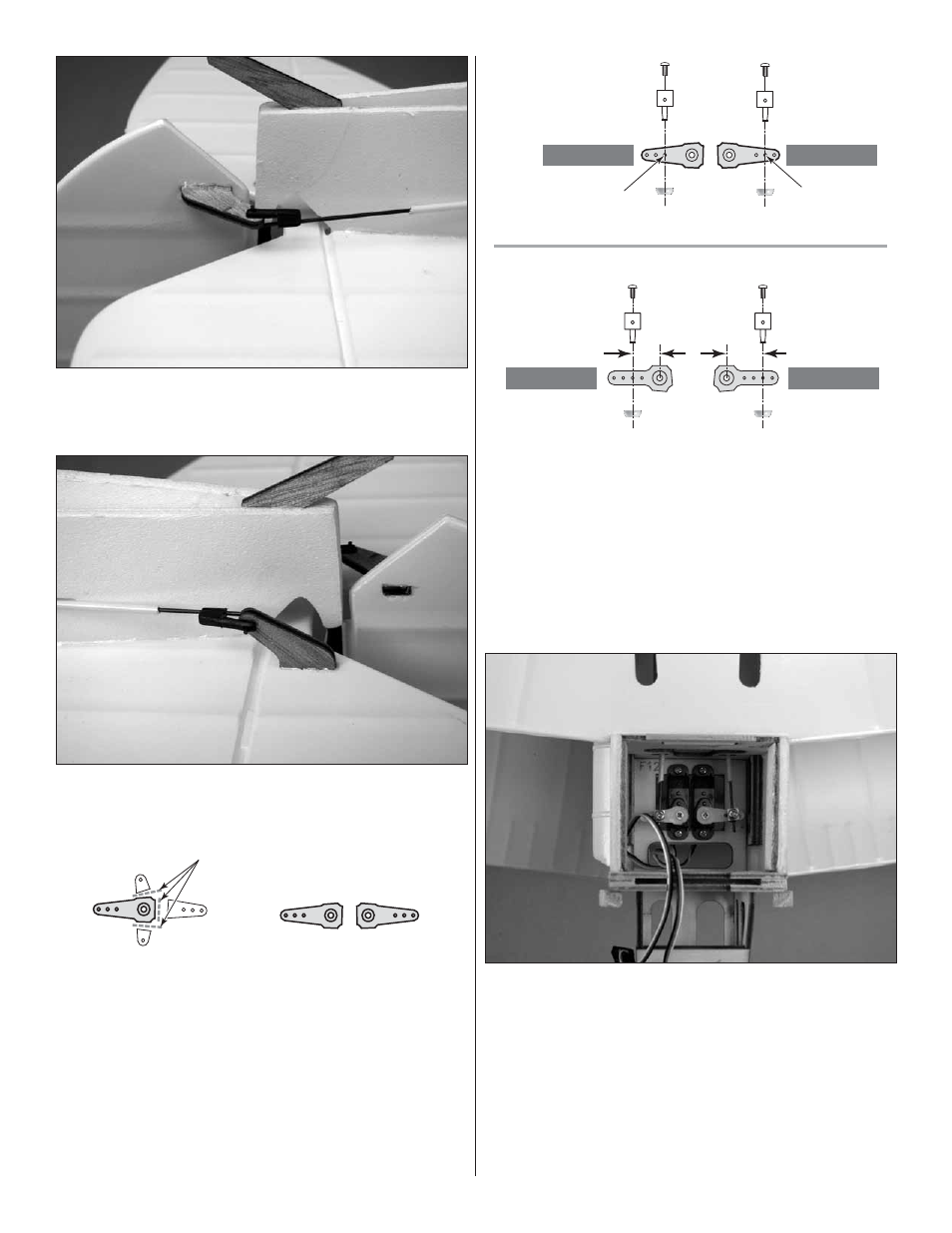

2. Guide the rudder pushrod up through the rudder tube
in the left side of the fuselage. Then, fi t and glue the rudder
horn into the elevator.
❏
3. Fit and glue the elevator horn into the elevator the
same way.
Cut
Make two
❏
4. Make two single-arm servo arms by cutting off the
unused arms.
ELEVATOR RUDDER
ES40 Pico servos
Middle
hole
Inner
hole
ELEVATOR RUDDER
“Other”
servo arms
5/16" [ 7.5 mm] 13/32" [10 mm]
❏
5. If using ES-40 Pico servos, mount a screw-lock
connector to the middle hole of one servo arm and to the
inner hole of the other servo arm. If using different servos,
mount the connectors in the holes closest to 5/16" [7.5mm]
and 13/32" [10mm] from center.
❏
6. Turn on your transmitter and center the trims. Temporarily
connect the servos to your receiver. Connect the ESC to the
receiver and a battery to the ESC so you can power up the
system. Mount the servo arms to the servos.
❏
7. Unplug the servos and the ESC from the receiver and
mount the servos to the servo tray in the fuselage with the
screws that came with this kit (or with the screws that came
with the servos).
