8
❏

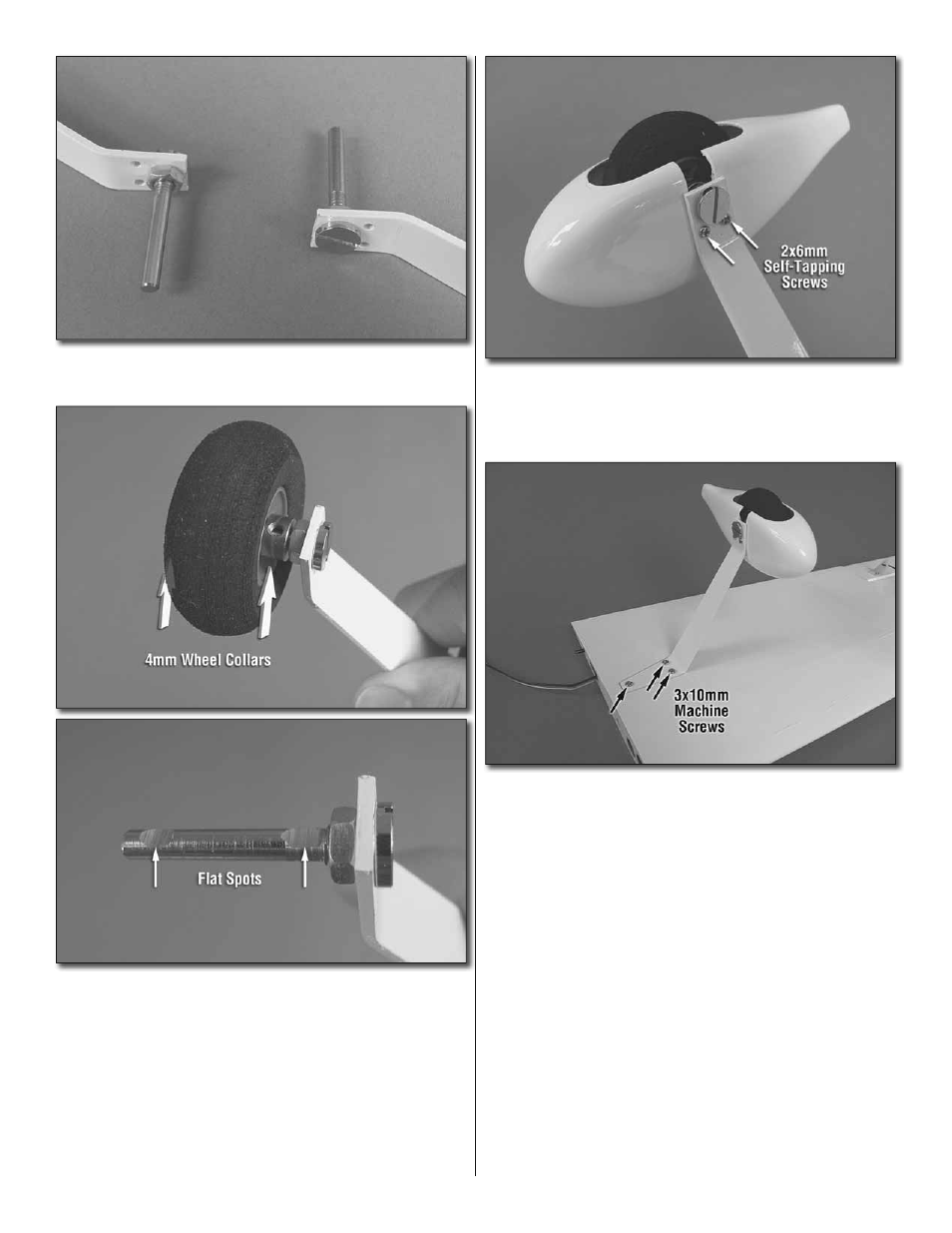

9. Install the axles onto the landing gear legs using the
included landing gear nuts and threadlocking compound.
❏
10. Slide a 4mm wheel collar onto each axle followed
by a main wheel and another 4mm wheel collar. Mark the
location of the screw holes in the wheel collars onto the
axles. Remove the wheel collars and wheels and use a fi le
or rotary tool to grind fl at spots onto the axles at the marks
you made.
❏
11. Install the wheel collars and main wheels onto the
axles. Secure the collars onto the axles with 3mm set screws
and threadlocking compound. Be sure that the wheels rotate
freely. Oil them if necessary.
❏
12. Thread a 2x6mm self-tapping screw into each hole in
the wheel pants and back it out. Apply a drop of thin CA to
each hole and allow the glue to dry. Install the wheel pants
onto the landing gear with four 2x6mm self-tapping screws.
❏
13. Bolt the landing gear legs to the wing panels using
six 3x10mm machine screws and threadlocking compound.
