13

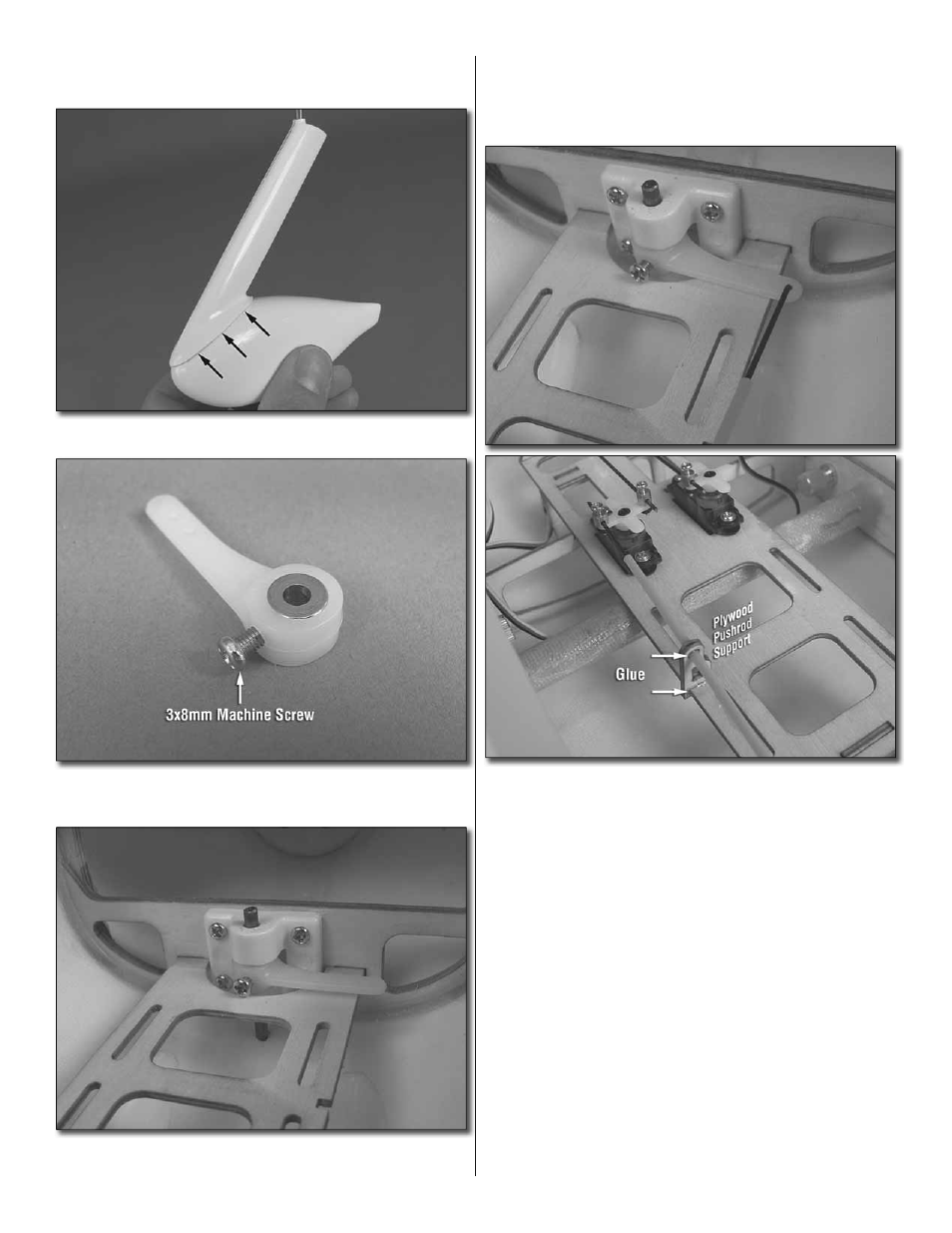

around its edge. Align the other half of the fairing over the
fi rst and glue the edges of the parts together fl ush.
❏
4. Glue the nose gear fairing to the wheel pant.
❏
5. Insert the 3.5mm wheel collar into the nylon steering arm
and loosely thread a 3x8mm machine screw into the collar.
❏
6. Fit the steering arm into the steering arm block so the
arm is on the right side of the fuselage. Insert the nose gear
wire through the hole on the underside of the fuselage and
up through the steering arm and block. Align the screw in
the steering arm with the fl at spot on the wire and thoroughly
tighten the screw using threadlocking compound.
❏
7. Insert the outer pushrod tube through the hole in the
plywood pushrod support. Insert the remaining pushrod
through the outer pushrod tube. Connect the Z-bend on the
pushrod to the outer hole in the steering arm. Insert the other
end through the screw lock connector on the rudder servo
arm (clip off some of the pushrod wire if necessary when
fl exing the wire to fi t into the connector). With the nose wheel
pointed straight and the rudder servo centered, tighten the
screw in the connector against the pushrod. Center the outer
pushrod tube fore and aft on the wire and fi t the plywood
support into the notch on the battery tray. Thoroughly glue the
outer pushrod tube to the support and the support to the tray.
