5
1 2
3
4
8
7
6
9
10
11
5
12
1 Fiberglass Cowl
2 Fuselage
3 Wing
4 Ailerons 5 Stab and Elevators
6 Fin and Rudder
7 Landing Gear
8 Canopy 9 Fuel Tank with Hardware
10 Adjustable Engine Mount
11 Spinner
12 Wheel Pants
(1) 17-1/2 .074 wire (throttle pushrod)
(2) 1/4 - 20 Blind Nuts (pre-installed in fuse)
(1) 11-3/4" Gray plastic outer pushrod tube
(throttle)
(5) 12" .074 wire threaded one end (ailerons)
(1) 2" x 9" hinge material
(6) Nylon clevis (rudder, elevator, ailerons,
throttle)
(5) Faslink (rudder, elevator, ailerons)
(2) Nylon 1/4 - 20 wing bolt (wing)
(5) Large nylon control horn (aileron,
rudder, elevator)
(7) Silicone clevis keepers (rudder, elevator,
ailerons, throttle)
(4) 6-32 x 3/4" socket head cap screw (main
gear and stab)
(4) #6 lock washers (main gear and stab)
(4) #6 flat washers (main gear and stab)
(4) 6-32 blind nuts (main gear and stab)
(14) #2 x 3/8" screws (cowl, canopy, wheel
pants)
(4) #2 washers (for mounting the cowl)
(4) 8-32 blind nuts (engine mount to firewall)
(4) 8-32 x 3/4" socket head screws (engine
to engine mount)
(4) 8-32 x 1" socket head screws (engine
mount to firewall)
(8) #8 flat washers (mounting engine and
engine mount)
(8) #8 lock washers (mounting engine and
engine mount)
(4) 5/32" wheel collar (main wheels)
(4) 6-32 x 1/8" socket head screw (main
wheels)
(6) 2-56 x 1/2" socket head screw (rudder,
elevator, ailerons)
(4) 2-56 x 3/4" socket head screw (aileron
control horns)
(1) Brass quick connect body (throttle
connection)
(1) Nylon retainer (Throttle connection)
(1) 4-40 x 1/4" SHCS (Throttle connection)
(1) 3/32 wheel collar (tail wheel)
(1) 4-40 set screw (tail wheel)
(2) Axles
(2) Nuts for the axles

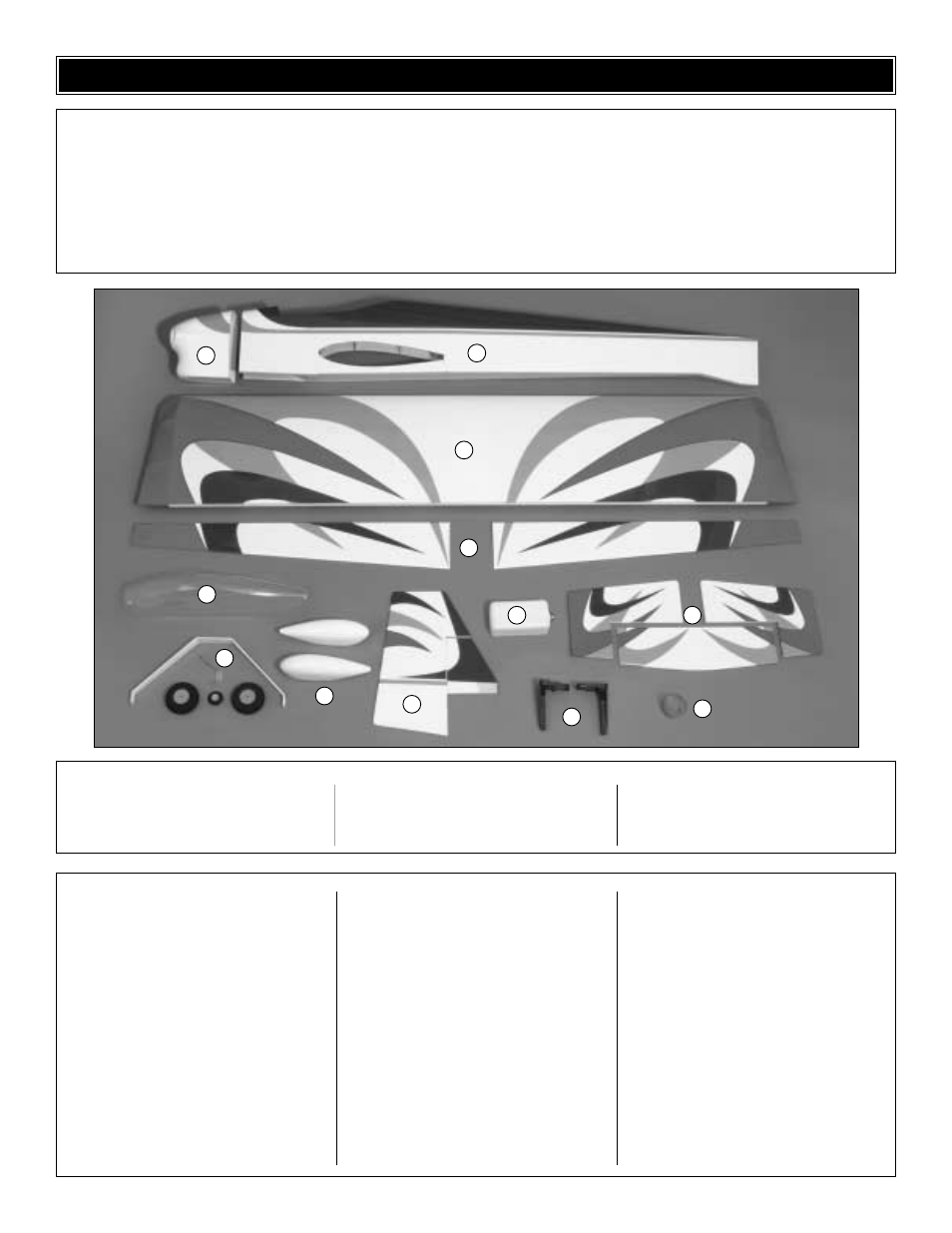

Kit Contents (Photographed)
Kit Contents (Not Photographed)
Before starting to build, use the Kit Contents list to take an inventory of this kit to make sure it is complete and inspect
the parts to make sure they are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you
need assistance with assembly, contact Great Planes Product Support. When reporting defective or missing parts, use
the part names exactly as they are written in the Kit Contents list on this page.
Great Planes Product Support:
Phone: (217) 398-8970
Fax: (217) 398-7721
E-mail: [email protected]
KIT CONTENTS
