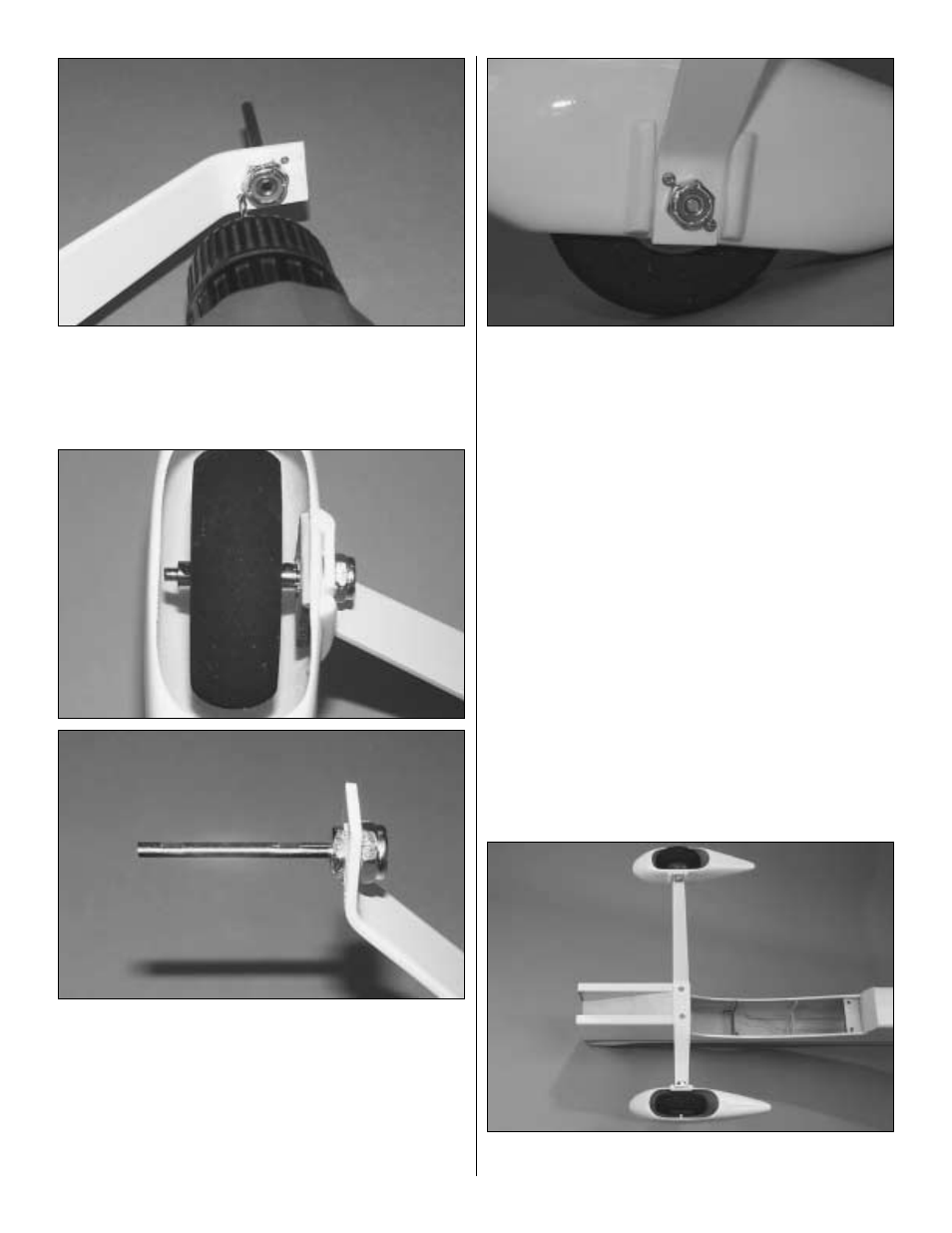

5. Drill 3/32" [2.4mm] holes through the landing gear

diagonally on both sides of the axle nut.

❏ ❏

6. Temporarily slide the wheel pant, a wheel collar,

wheel and second wheel collar onto the axle. Determine where
the set screws for the wheel collars will be positioned on the
axle. Remove the wheel and pant, and then file flat spots on
the bottom of the axle for the set screws in the wheel collars.

❏ ❏

7. Mount the wheel to the axle and tighten the set screws.

❏ ❏

8. Drill two 1/16" [1.6mm] holes through the pant using

the holes in the gear as a guide.

❏ ❏

9. Fasten the wheel pants to the landing gear with two

#2 x 3/8" screws. Remove the set screws in the wheel
collars and add a drop of oil to the axle and the wheel. Add
a drop of threadlocker to the set screws, install them into the
wheel collars and securely tighten. Note: Double check that
the wheel spins freely.

❏

10. Return to step 2 and mount the other wheel and pant

to the left landing gear the same way.

❏

11. Mount the landing gear to the fuse with two 6-32 x 3/4"

SHCS, #6 flat washers and #6 lock washers.
