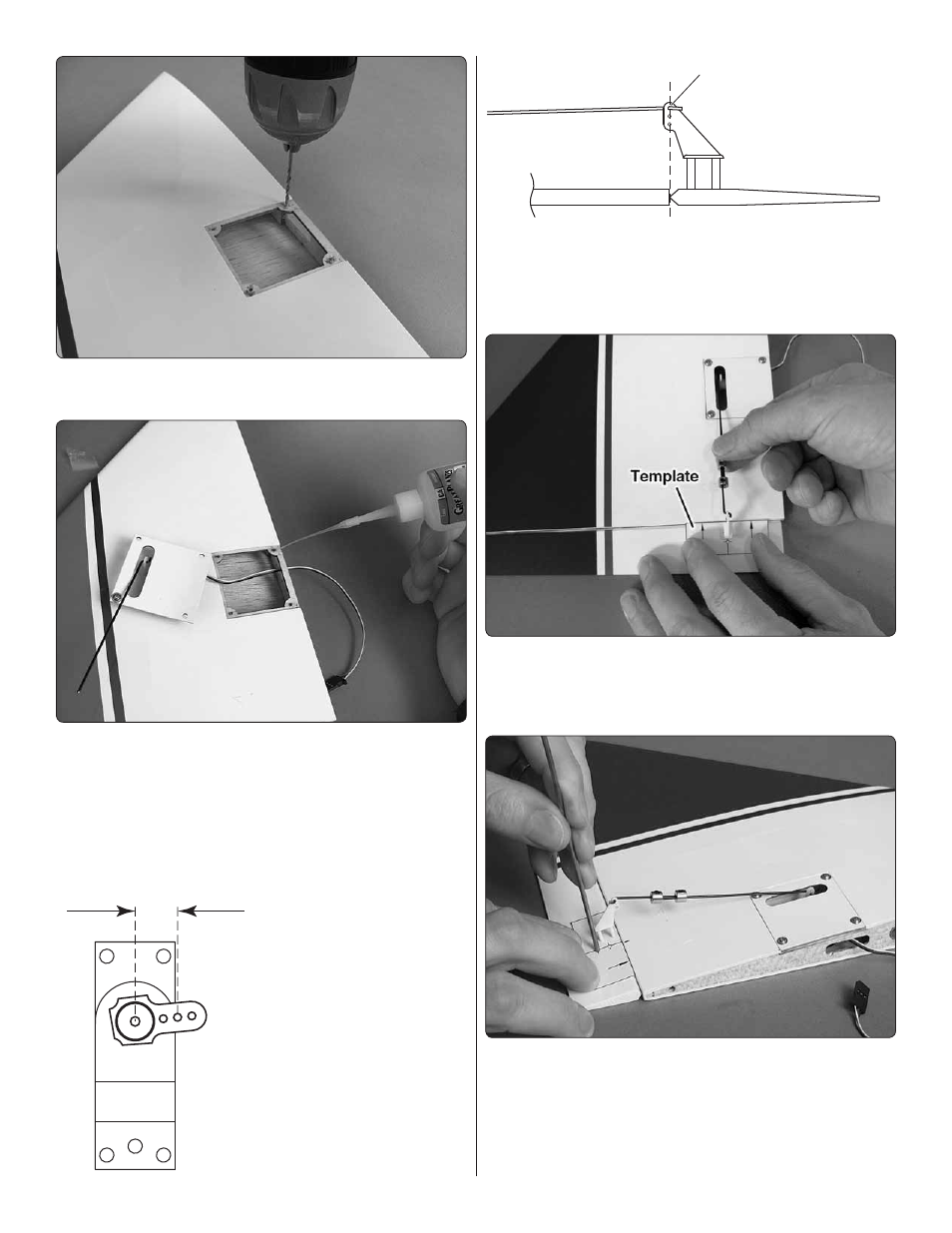

9. Enlarge the four hatch mounting holes in each wing with
a 1/16" [1.6mm] drill.
❏
10. Temporarily mount the hatches in the wings with the
washer-head Phillips screws. Take out the screws, add a drop
or two of thin CA in each hole and allow to harden.
From here you can do one wing at a time, or work on them
both simultaneously.
❏
11. Insert one of the long
Z-bend pushrods through the
hole in the servo arm that
is closest to 1/4" [6–7mm]
out, then mount the arm to
the servo with the servo arm
screw and mount the hatch
to the wing.
1/4"
[6 −7 mm]
Outer Hole
❏
12. Temporarily mate one of the short Z-bend pushrods
to the long pushrod on the servo with two collars and set
screws, then fi t one of the aileron horns onto the pushrod
through the outer hole.
❏
13. Cut an Aileron Horn Template from the back of the
manual and align it with the trailing edge of the wing as shown.
Position the template so the pushrod will be directly behind
the servo arm and perpendicular to it.
❏
14. Drill 3/32" [2.4mm] holes holes through the aileron
where marked on the template (or use a 3/32" brass tube
sharpened on the end to cut perfectly clean holes).
