6

PREPARATIONS

1. If you have not done so already, remove the major

parts of the kit from the box and inspect for damage. If any
parts are damaged or missing, contact Product Support at
the address or telephone number listed in the “Kit Inspection”
section on page 5.

2. Remove the tape and separate all the control surfaces.

Use a covering iron with a covering sock on high heat to tighten

the covering if necessary. Apply pressure over sheeted areas
to

thoroughly

bond the covering to the wood.

ASSEMBLE THE WINGS

Cut Off

Unused Arms

5/64" [2mm]

1. Test fi t a four-armed servo arm onto each aileron servo

and determine the best orientation of the arms that will position
them closest to perpendicular to the servo cases. Look at the
photo in step 2 and cut off three of the four arms of each servo
arm to match the photo. Enlarge the

second inner

hole of

each remaining arm with a 5/64" [2mm] drill bit.

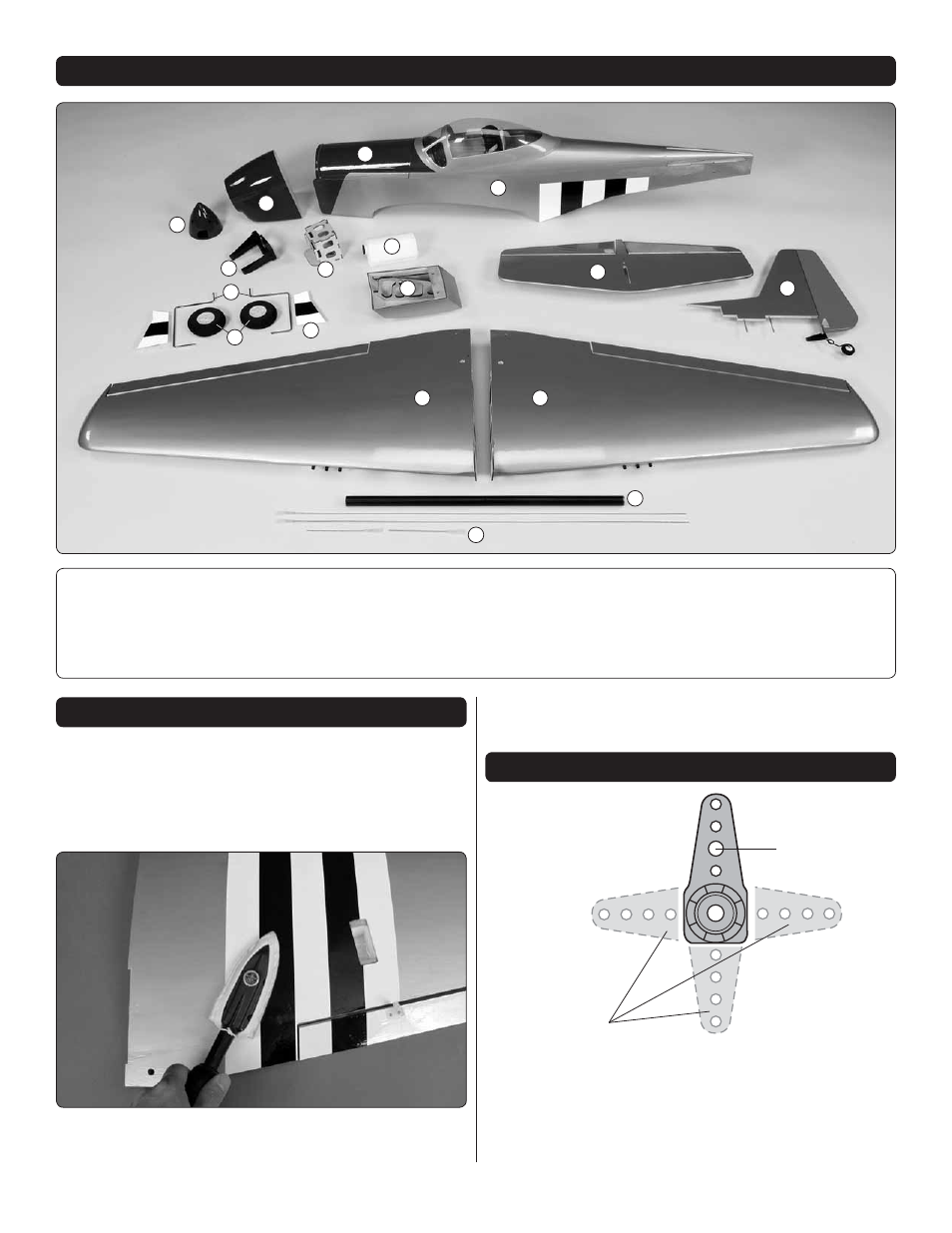

KIT CONTENTS

1. Left Wing Panel
2. Right Wing Panel
3. Horizontal Stabilizer
4. Vertical Fin
5. Fuselage

6. Hatch
7. Air Scoop
8. Cowl
9. Fuel Tank
10. Brushless Motor Mount

11. Engine Mount
12. Spinner
13. Landing Gear Doors
14. Landing Gear Wires
15. Main Wheels

16. Wing Joiner Tube
17. Pushrods

1

6

2

4

9

10

11

12

13

16

17

8

7

3

5

15

14
