7
❏ ❏

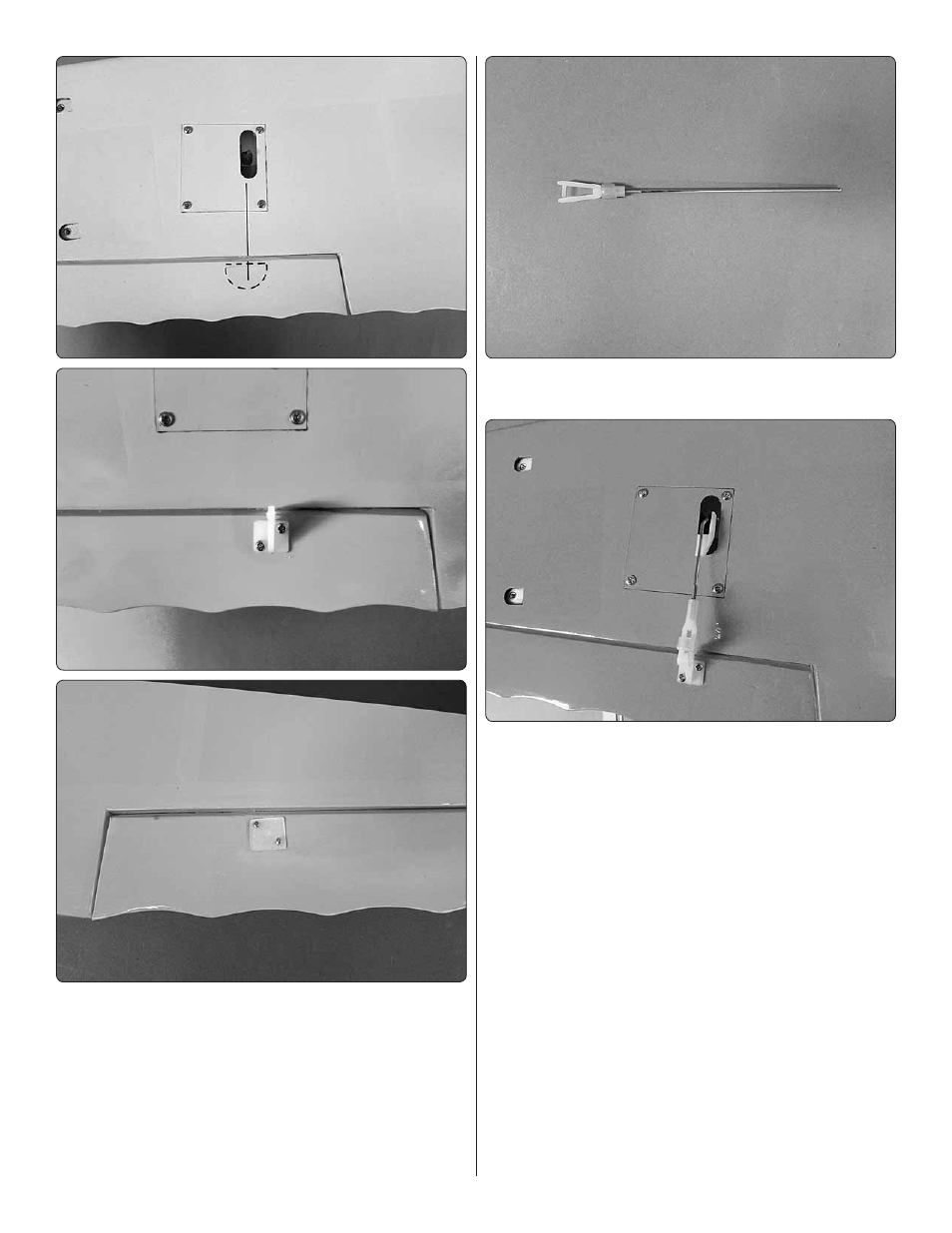

10. Locate a nylon control horn. Cut the nylon mounting
plate from the horn. Place the control horn onto the aileron
in line with the servo arm and positioned on the hardwood
plate. Mark the location of the mounting holes in the servo
horn onto the aileron. Drill a 5/64" [2mm] hole through the
aileron on each of the marks you just made. Secure the horn
to the aileron with two 1/16" x ½" machine screws and the
nylon back plate.
❏ ❏
11. Thread a nylon clevis, 20 turns, onto a 6" [152mm]
wire pushrod.
❏ ❏
12. Slide a silicone clevis retainer over the clevis and
install the clevis into the outer hole in the aileron control
horn. With the aileron servo and the aileron centered, mark
the aileron pushrod where it crosses the aileron servo arm.
Make a 90° bend at the mark. Cut the pushrod 3/8" [9.5mm]
past the bend. Attach the pushrod to the aileron servo arm
with a nylon Faslink.
❏
13. Repeat steps 1-11 for the left wing panel.
