PRODUCT DESCRIPTION
1. POWER: On/Off push button switch.
2. GR: Rotary switch used to select frequency group.
3. CH: Rotary switch used to select frequency channel.
4. LED display: Indicates the current frequency group and
channel selected on the transmitter.
5.
CH 1 MIC/LINE: Adjusts the volume of the ¼" XLR MIC/LINE
input.
6.
CH 2 LINE: Adjusts the volume of the stereo RCA and STEREO
1/4" LINE IN inputs.
7.
PHONES: Adjusts the volume of the monitoring headphone
jack (#9).
8.
PEAK: Illuminates when the input audio signal is too high.
Distortion may occur when this light is on.
1

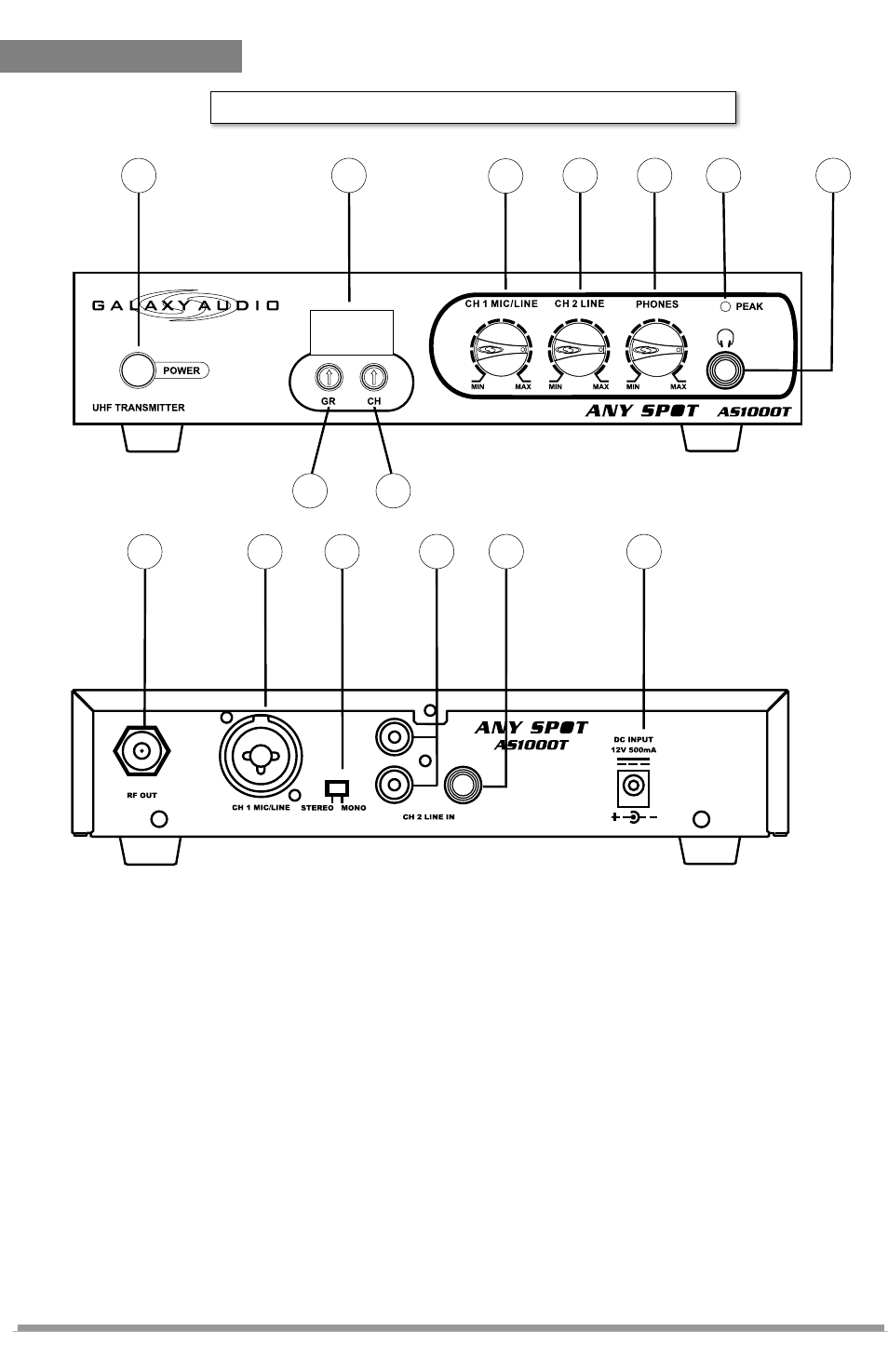

2 3
