Galaxy Audio PSE - Manual (Page 3)

Power Switch.
Press and Hold to switch On/Off.
IR Window.
Unit sends Infrared Signal to the Transmitter through
this Window for Frequency Synchronization.
ASC Synchronizing Signal Transmit Button.
Press this Button to establish Infrared connection
between the Receiver and Transmitter.
Channel Display.
Displays selected Channel.
Channel Up Button.
Please See “System Setup” on page 5.
1
2
3
4
5
ANTENNA-A ANTENNA-B
UNBAL
MUTE LEVEL AF OUTPUT
XLR BALANCED -12dBV
D.C.12-18V IN
300mA
+ -
1
1
2
2
3
3
4
4
5
5
6
6
7 8 9 10
Channel Down Button.
Please See “System Setup” on page 5.
Antenna A LED.
Indicates Antenna A active when lit.
Antenna B LED.
Indicates Antenna B active when lit.
Audio LED. Indicates strength of incoming
Audio Signal.
Audio Output Level Control.
Left turn for Output Level Decrease, right
turn for Output Level Increase.
6
7
8
9
10
2

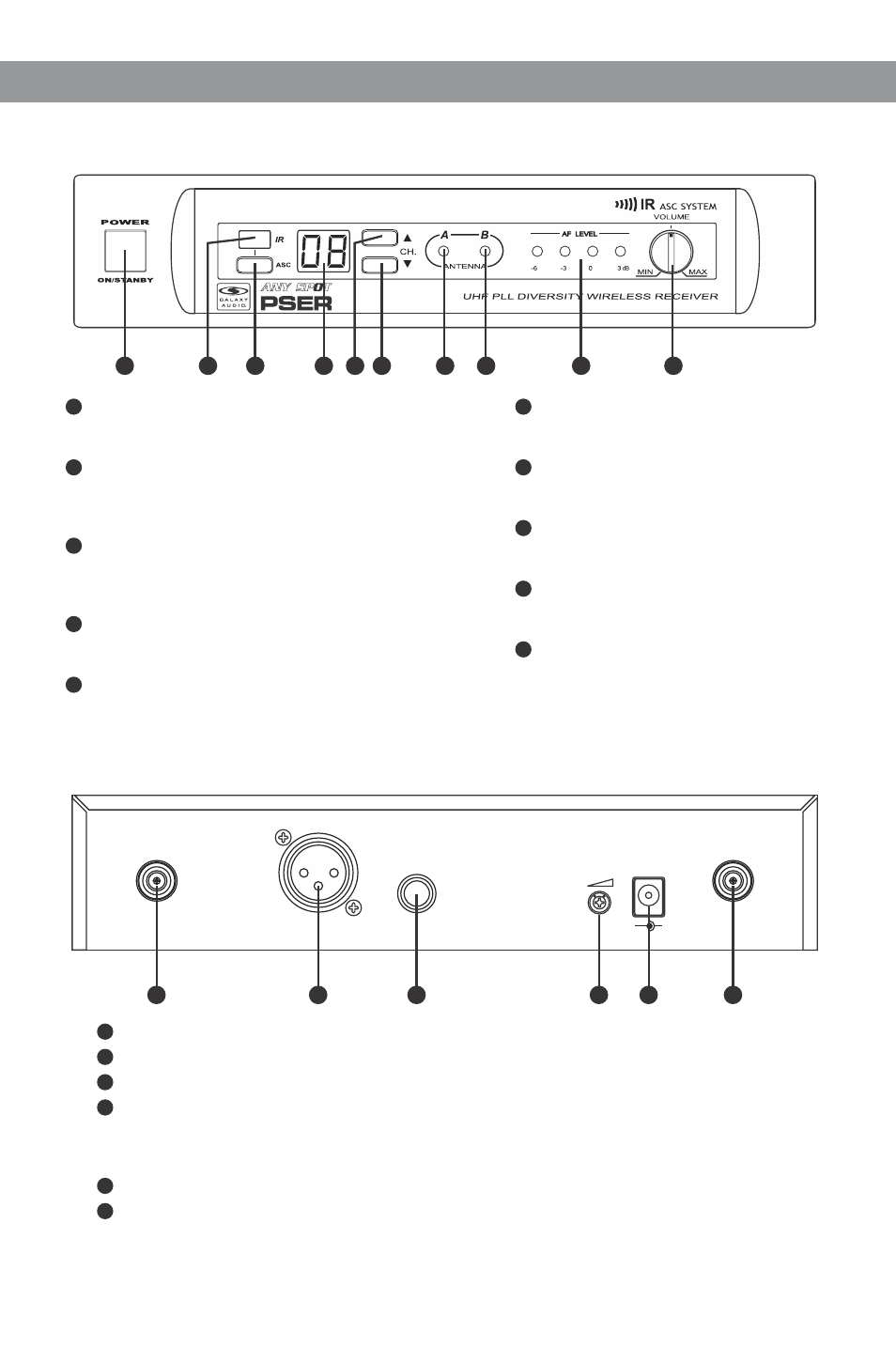

Front Panel
Rear Panel
Antenna Jack A 50Ω.
XLR Audio Output.
¼" Audio Output.
Fine adjustment of Mute Threshold Level.
This is factory set and usually does not need to be adjusted.
If interference signals are present, this Threshold Value
can be Increased by turning the knob Clockwise until RF Signal LED goes out.
Power Adapter Jack.
Antenna Jack B 50Ω.
1
2
3
4
5
6
Functions of the PSER Receiver Functions of the PSER Receiver
