Galaxy Audio ECD - Manual (Page 6)

5
4 3 2
1
Close
Open
4

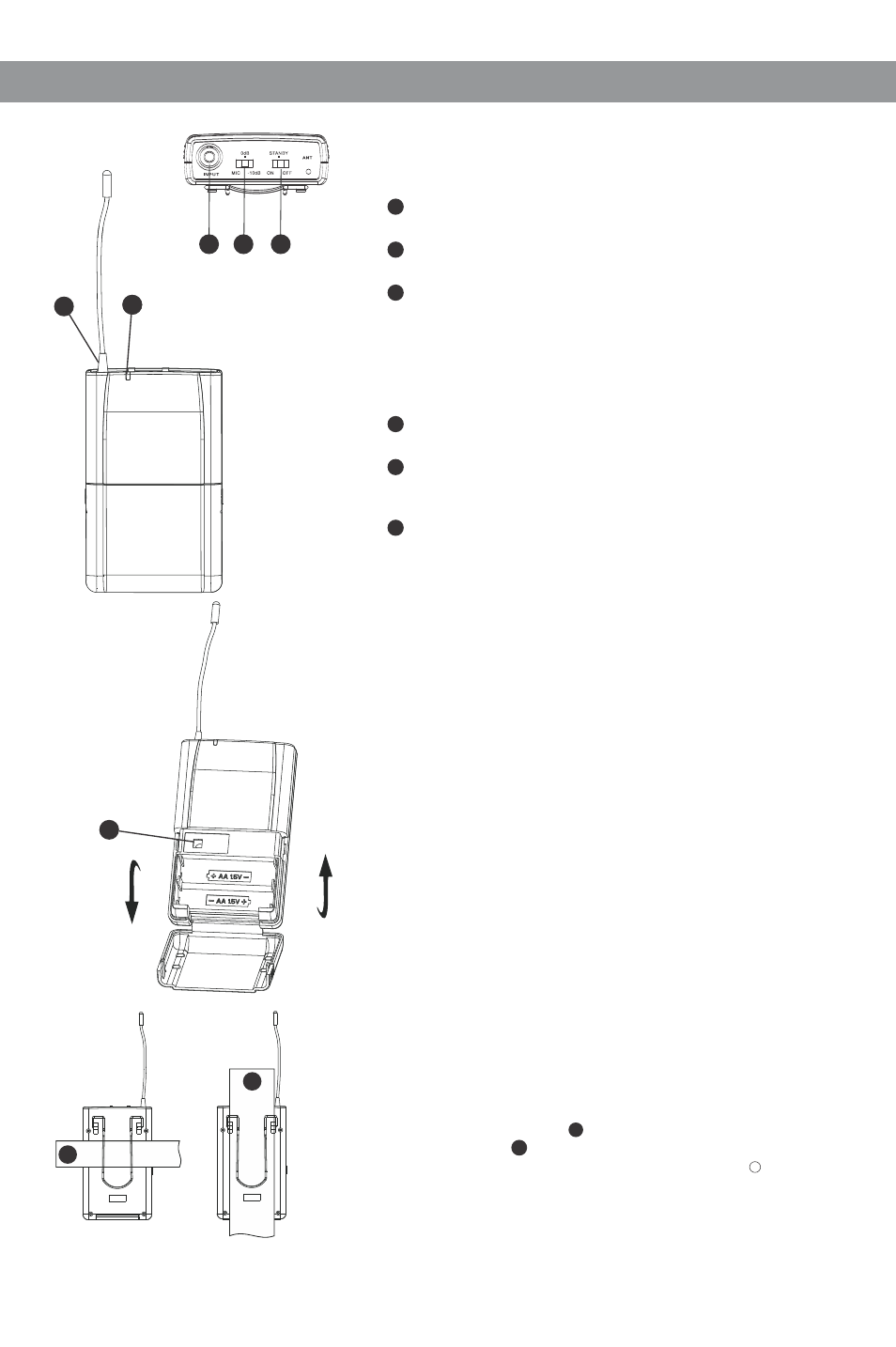

Antenna.
On/Off/Mute switch
Gain adjustment switch
Three gain settings are available on the Bodypack Transmitter
(choose the appropriate setting)
Mic: microphone
0: Guitar with passive pickups
-10dB: Guitar with active pickups
Microphone Input Jack
Power/Low battery indicator light. If the Power light glows a
constant red, the batteries should be changed immediately.
Infrared receiver (IR) window.
1
2
3
4
5
6
Functions:
Battery Replacement:
When the transmitter light glows red, the batteries should be
changed immediately, as shown on the left.
Open the Battery Door as shown. Install Batteries
while observing correct polarity markings.
The life expectancy of two alkaline batteries is about 8 hours.
MBP38 Bodypack Transmitter MBP38 Bodypack Transmitter
Wearing the Bodypack Transmitter:
Clip the transmitter to belt , or slide a guitar strap through
the transmitter clip ,as shown.
For best results, slide the transmitter until the belt is
pressed against the base of the clip.
1
5
6
7
7
8
8
