Page 4: Front panel rear panel
2
1

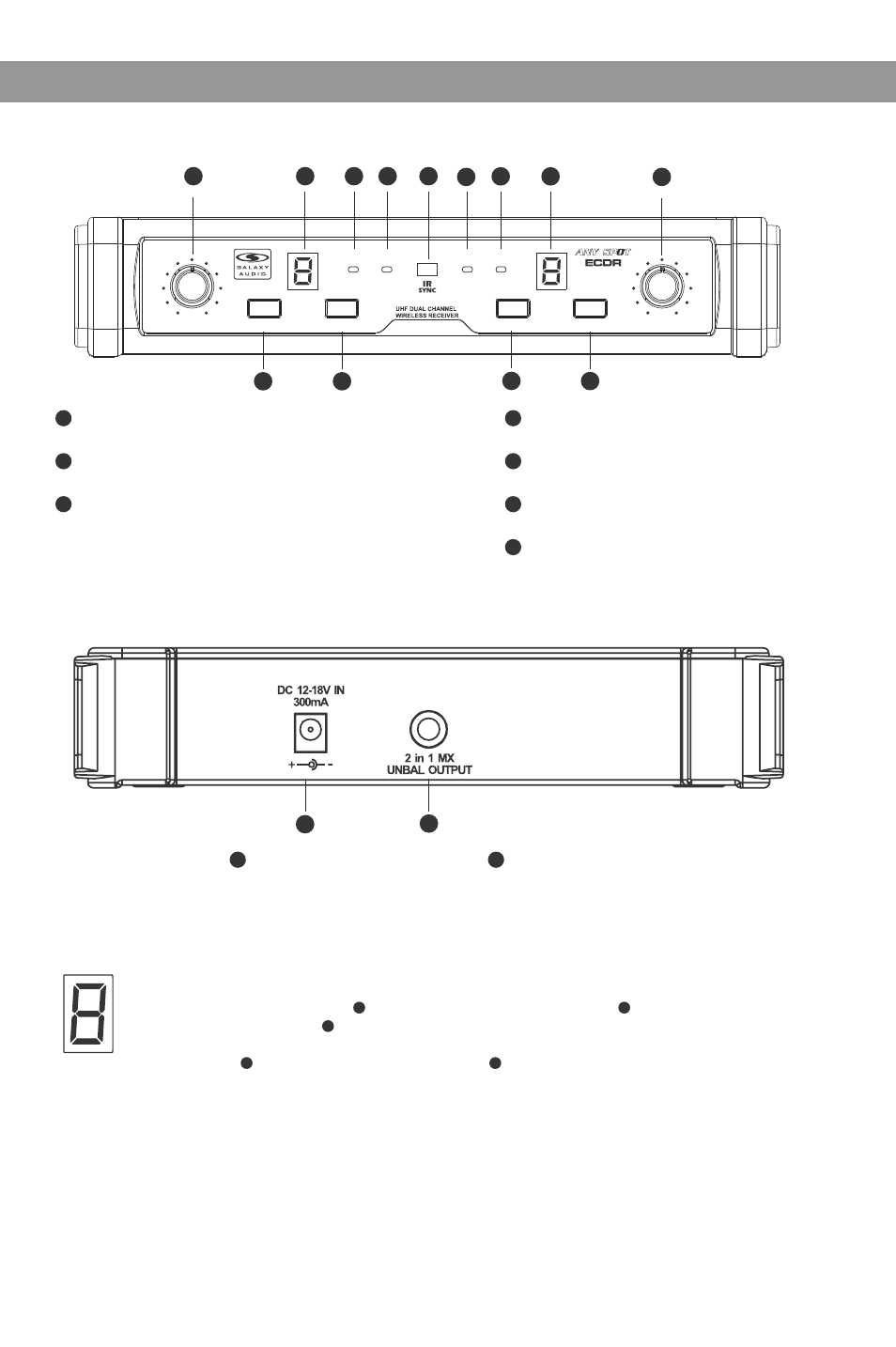

Front Panel
Rear Panel
System Setup
Receiver Programming
Channel Selection: Press the "SELECT" button to increase the channel number by one
(0-9, then A-F).* Press the ASC button, and the Channel Display will begin to flash. Hold the
transmitter’s (HH38 or MBP38) IR window towards and in close proximity less than 1.5 ft. to the
ECD receiver’s IR window. The ECD receiver’s RF Signal LED will light once
synchronization has been established. Only one IR connection can be established at a time
during each syncing process.
*Note: If the RF light on the receiver is on when the transmitter is off, change to another channel.
Receiver volume control:
Rotate the audio output level control knob to the left to reduce the output level, rotate to the right
to increase the output level.
6
2
7
5
4
RF signal LED
Infrared IR Window
Channel select button
Automatic Synchronization Control (ASC)
button
4
5
6
7
2
Functions of the ECDR Receiver
Functions of the ECDR Receiver
Audio Output Level Control
Channel display
AF Signal LED
1
2
3
AF
RF
MAX
MIN
AF
RF
MAX
MIN
SELECT
ASC
SELECT
ASC
1
1
2
2
3
3
4
4
5
6
6
7
7
Power Adapter Jack.
¼" Audio Output (mixed).
1
2
