Functions of the CTSR Receiver
Functions of the CTSR Receiver

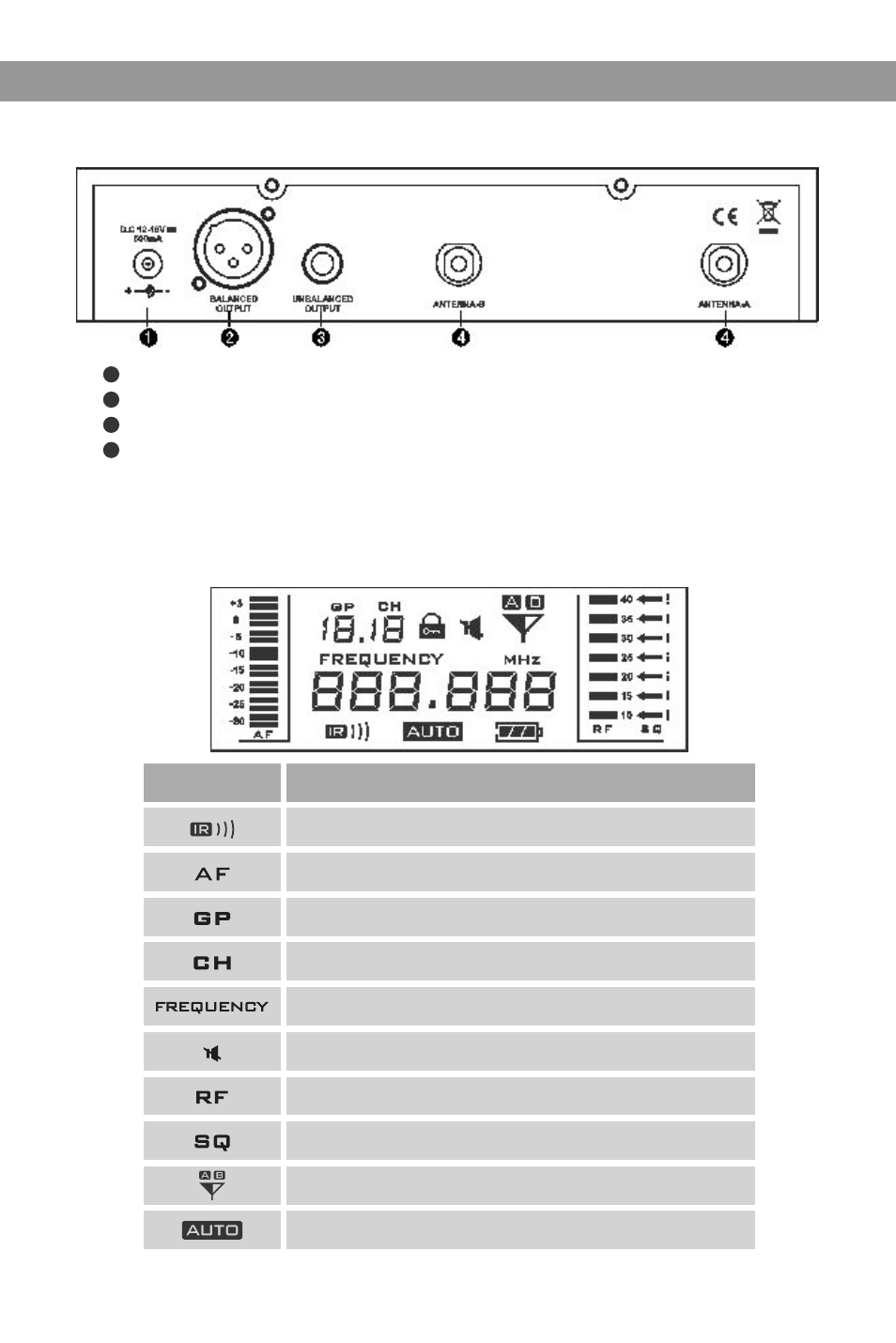

Receiver LCD Functions
Function
IR port
Receiving Signal Status
Squelch Level Setting
Current Group Number
Current Channel Number
Current Frequency
Mute, it will disappear when the mic is on
Audio Level
Antenna A B status
Automatically Search for vacant channels
Display
Rear Panel
DC power socket
Balanced audio output socket
Un-balanced audio output socket: 1/4 inch
Antenna Socket
1
2
3
4
