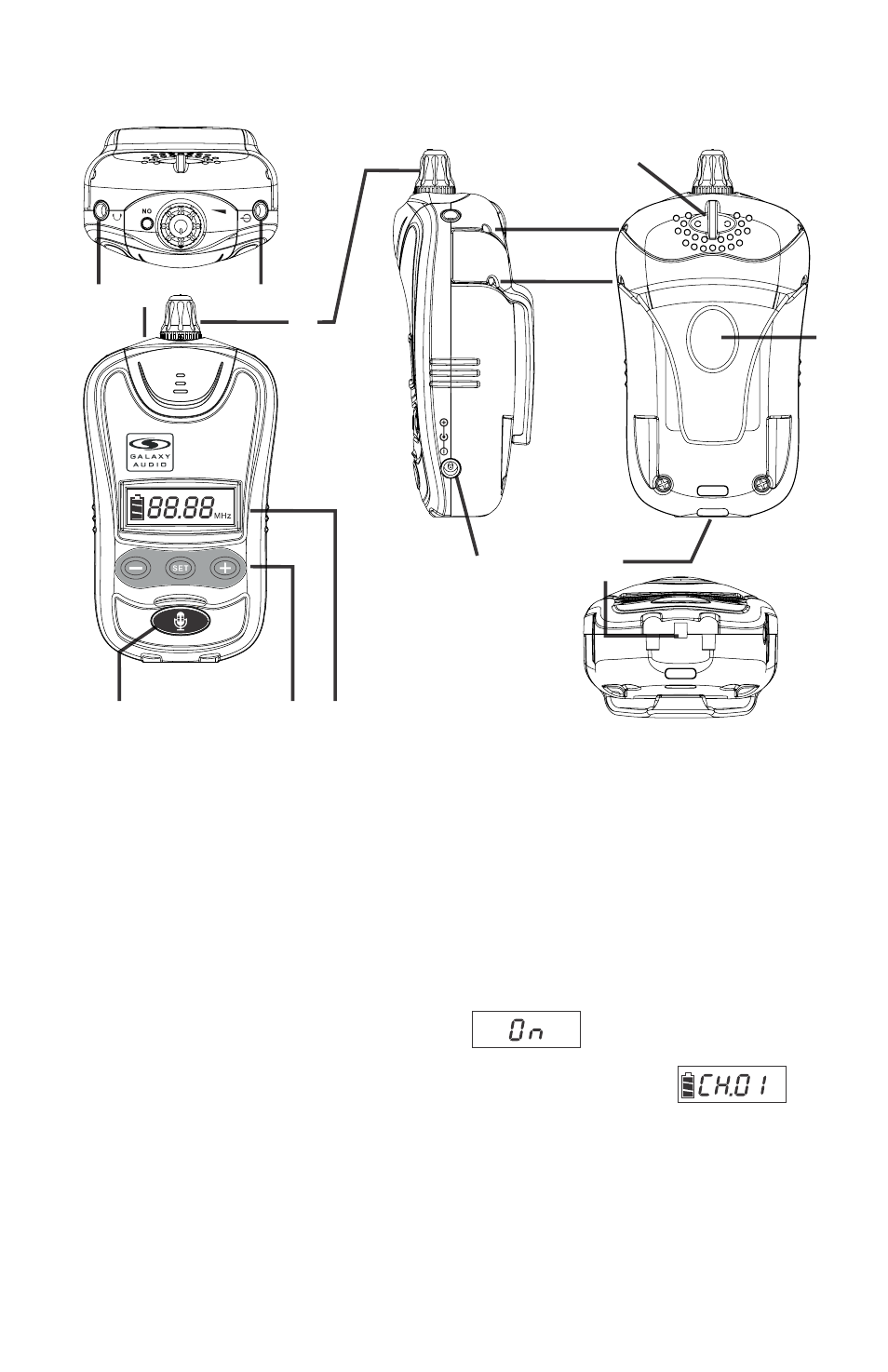

Description of Functions for Body Pack Receiver

AS-TVBPR

1. MUTE button
2. Channel
3. LCD
4. Power / Volume button
5. Audio out / Headphone jack
6. Charging indicator (built-in)

7. Line out
8. Strap attachment point
9. DC charging input
10. Strap attachment point
11. Belt clip
12. Charging terminal

Operation of AS-TVBPR Body pack Receiver

A. Switch-On Steps:
1. Turn the power/volume switch clockwise is displayed in the LCD.

2. The LCD will then automatically display the selected channel.

B: Volume adjust
1. Turn the power/volume switch clockwise to increase, turn counter clockwise to
decrease.

C: Mute
1. Press the mute button, it will turn red to indicate mute.
