CITIZEN CLP-521 - Manual (Page 12)

1
Setup
12
8
7
9
10
11
5
6

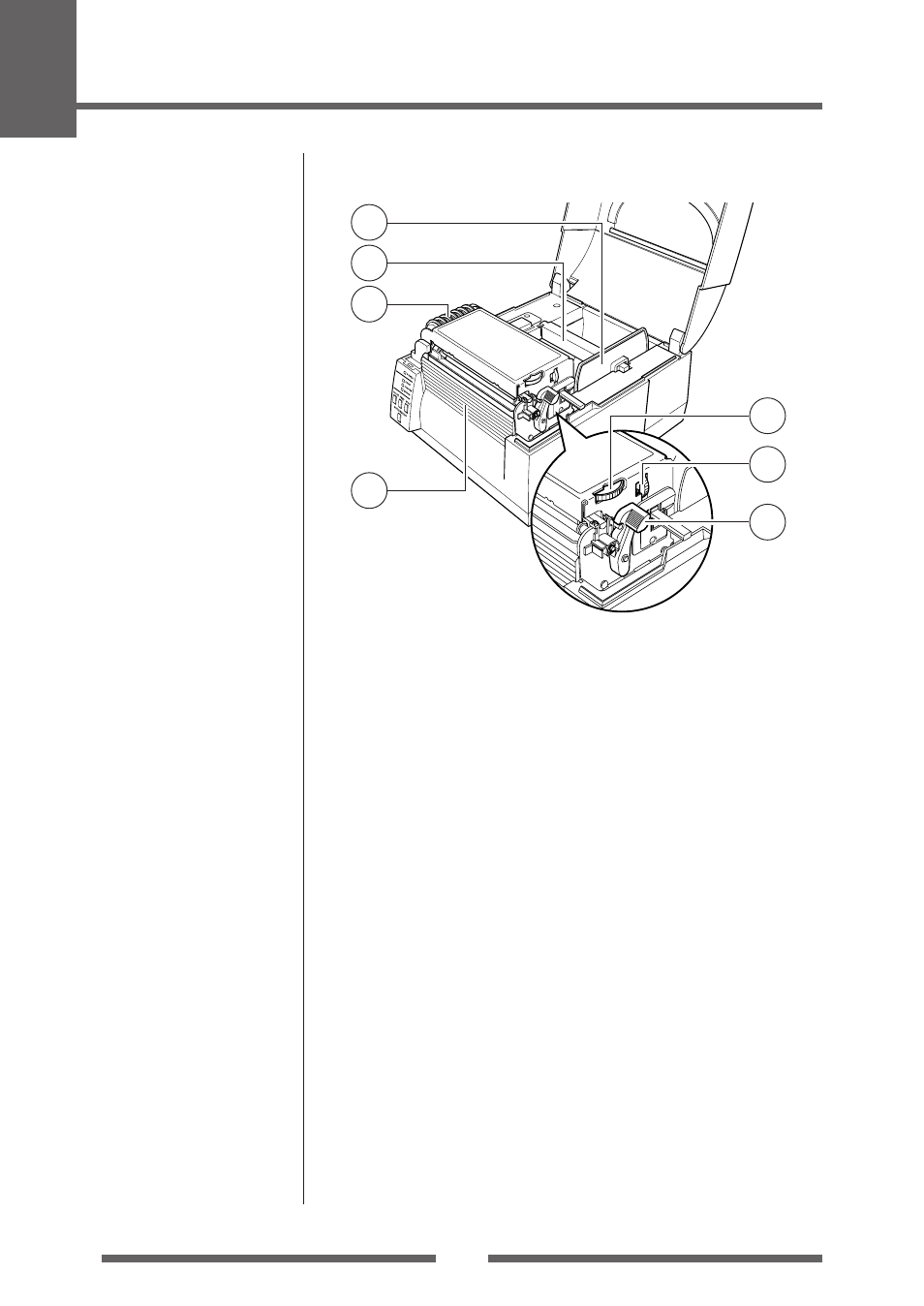

Part Names and Functions
5 Media holder bar
The media is supported by the media holder bar when installed in the
printer.
6 Media holder guide
This guide is moved horizontally to match the media size.
The guide can be sliding it from the holder bar.
7 Motor cover
It discharges the heat of the media feed motor.
Do not cover it with media etc.
8 Front cover
It is removed to install optional units such as the peeler or cutter.
9 Media width adjustment dial
It is adjusted to match the width of the media.
0 Media thickness adjustment dial
It is adjusted to match the thickness of the media.
- Large blue-head open lever
The head unit can be raised to install media by pushing this lever.
It locks the head unit during printing.
Media Width Adjustment
(p.38)
Media Thickness Adjustment
(p.37)
