Instruction Sheet for Assembly and Installation of Pendant F7000
F7700 FIXTURE LENS INSTALLATION

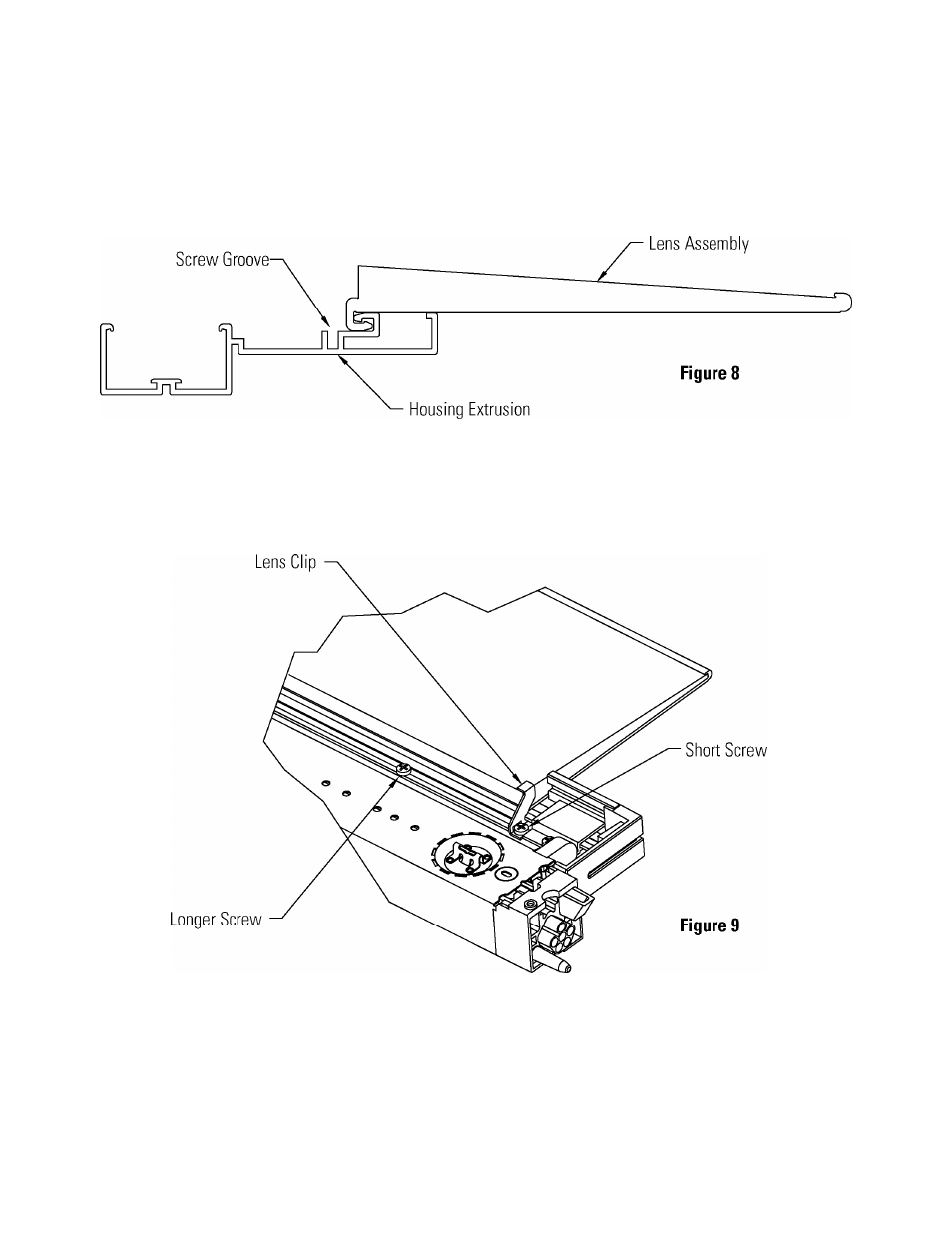

Step 1. Make sure the lenses are fully engaged with the housing. (Fig. 8)
Step 2. Install 2 lens clips per lens. 1 right hand and 1 left hand utilizing the short screws provided.
(Fig. 9)
Step 3. Install 2 longer screws per lens along the housing screw groove approximate 6" from end
of lens. (Fig. 9)
